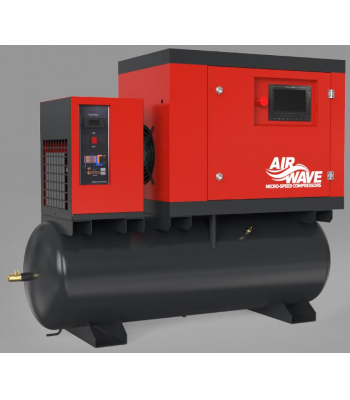

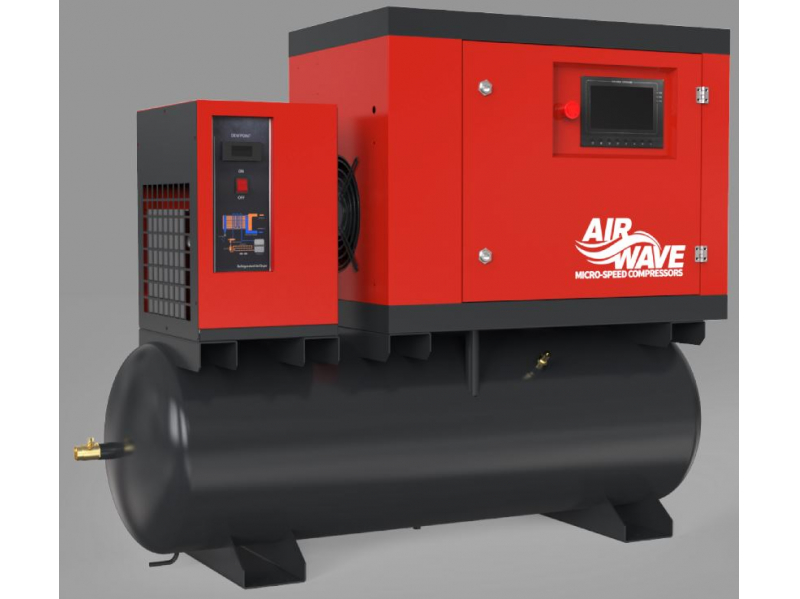

Airwave Micro-Speed, Variable Speed Compressor, 7.5hp/5.5Kw- 230V or 400V, 21 CFM, 6-10 Bar 200L Tank Mounted + Dryer

• Rotary Screw Pump Oil Lubricated (Air End)
• 100% Duty Factor
• Installation Simple Plug and Play
• Direct Drive Variable Speed Technology
• Motor 7.5 hp – 5.5 kw IP65 Oil Cooled Permanent Magnet
• Voltage 400/3/50 20 amp 3 Phase Supply
• Soft Start, Low Start Up Amps
• Latest Touch Screen, Advanced Monitoring System with Maintenance Warnings
• 7 Day Programable Start-Stop function
• Electric Thermostatically Controlled Cooling System
• Output 12-24.01 cfm @ 7 bar Free Air Delivered
• Output 12-22.95 cfm @ 8 bar Free Air Delivered
• Output 12-20.83 cfm @ 10 bar Free Air Delivered
• Max Working Pressure 10 Bar
• Tank Size - 200L (Small Footprint) Optional Wheels
• Low Component Count, Solid Seamless pipework
• Outlet 1/2 BSP Female Thread
• Dryer – Yes, Tank Mounted
• Filter – Yes, 0.01 Oil Removal
• dB(A) 65
• 2 Year Warranty T&Cs apply

Revolutionary VARI-Speed Digital Controller
At the heart of the Airwave Micro-Speed Compressor lies the VARI-Speed digital controller. This innovative technology empowers users to easily adjust key parameters, allowing for precise control over air pressure and flow. The digital controller not only simplifies operation but also offers advanced monitoring and maintenance alarms. Additionally, a built-in 7-day timer ensures the compressor aligns with your specific scheduling needs, making it a smart choice for businesses with varying operational hours.
Effortless Servicing and User-Friendly Design
Airwave Compressors have always prioritized user-friendliness. The Micro-Speed Compressor continues this tradition with simple and intuitive instructions for servicing. Keeping your equipment in top shape is a breeze, ensuring that your business operations run smoothly.
Energy-Efficient Variable Speed Drive (VSD)
One of the standout features of this compressor is its Variable Speed Drive (VSD) technology. By adjusting the motor speed to match air demand, the Micro-Speed Compressor can save up to 30% of system energy costs. With various VSD models available to cater to your specific air requirements and working conditions, you have the flexibility to optimize energy consumption.
Enhanced Efficiency with Unique Air-End Design
The Airwave Compressors' unique air-end design is a game-changer. It significantly increases efficiency and extends the working lifetime of the compressor. The oversized pump, also known as the air-end, is the central component where the actual compression takes place. This well-engineered air-end ensures a steady, non-pulsating airflow, setting it apart from reciprocating piston compressors.
Acoustic Cabinet for Reduced Noise
To provide a more comfortable working environment, the Airwave Micro-Speed Compressor is encapsulated within an acoustic cabinet. This design effectively reduces noise levels, and all panels can be effortlessly removed for servicing. The compressor is also mounted on a receiver, strategically chosen to minimize the overall footprint. A large capacity oil cooler, combined with an electrical thermostatically controlled fan, helps maintain optimal operating temperatures even in warm climates, all while reducing power consumption.
Enhanced Air Quality with Optional Refrigerated Dryer
For businesses that require clean, dry air, the optional Refrigerated Dryer with oil removal filtration is available. Unlike some competitors who incorporate this within the compressor cabinet, Airwave Compressors have recognized the importance of separate placement, ensuring that you never install a freezer next to an oven. This thoughtful design ensures the quality of your compressed air.
Peace of Mind with Warranty and Service
With a strong commitment to quality, Airwave Compressors offer a 2-year guarantee on all major components, including the air-end and motor. Additionally, their team of trained engineers is always on hand to provide advice, deliver spare parts, and offer service to keep your compressor running smoothly.
In summary, the Airwave Micro-Speed Variable Speed Compressor is a versatile, efficient, and user-friendly solution for all your compressed air needs. Its innovative features, precise control, and commitment to efficiency make it a top choice for businesses seeking dependable and cost-effective compressed air solutions.
