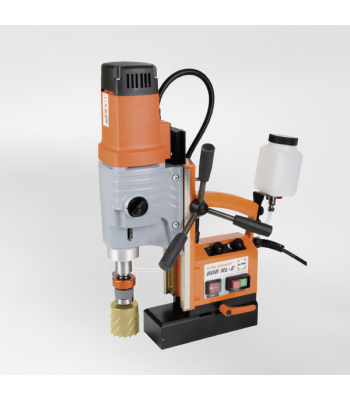

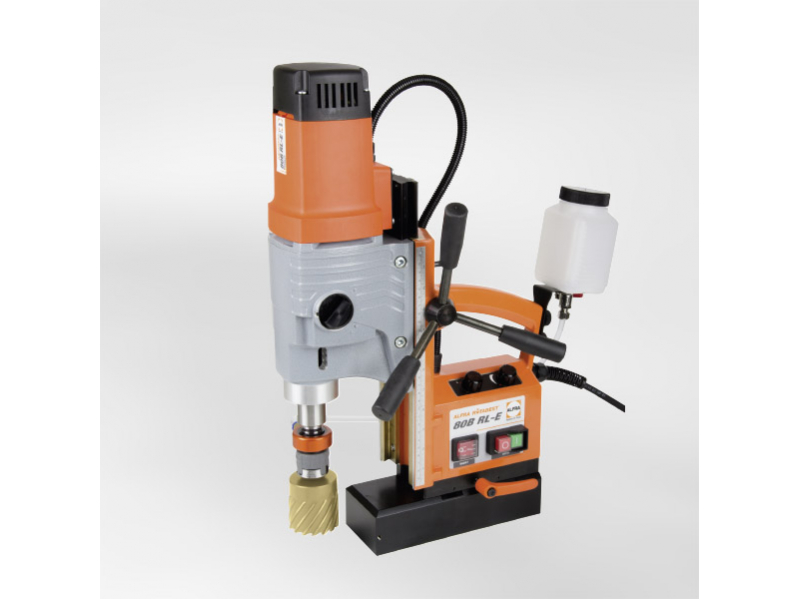

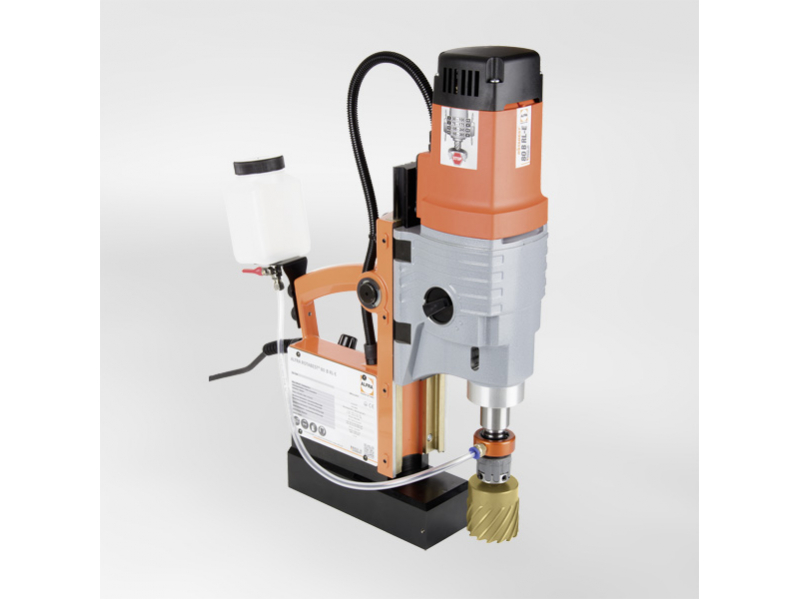

ALFRA RB80 RL-E 3MT Rotabest® Magnetic Drilling Machine – Code RB80 RL-E 3MT

This is now a "Discontinued Product"

(Item No Longer Available - No Direct Replacement)

ALFRA RB80 RL-E 3MT Rotabest® Magnetic Drilling Machine – Code RB80 RL-E 3MT

Authorised Distributor

Discontinued! This item has been discontinued.

Quote Ref: @98138

Product ID: ALFRA_RB80_RLE_3MT

Manufacturer: Alfra UK

Warranty: Click here for info

Price: (£1,230.99 ex VAT) £1,477.19 (inc VAT)

Available at checkout!

Categories Products

ALFRA RB80 RLE 3MT Rotabest® Magnetic Drilling Machine – Code RB80 RL-E 3MT

Please note the 240v may have a slightly longer lead time.

Drilling and thread cutting on thin-walled materials? No problem for our RB 80 SP RL-E. Thanks to patented magnetic technology, it is adhering to ferromagnetic materials from a thickness of 3 mm. The permanent magnet with tin coating and one-hand operation is not only particularly durable - it is also increasing occupational safety in your working environment. In the case of a power failure, the device is adhering securely to the material. Therefore 'crashes' are nearly impossible.
The 80 SP RL-E can be combined with core drills up to a diameter of 80 mm, with step drills up to a diameter of 55 mm and with spiral drills up to a diameter of 32 mm.
When it comes to thread cutting, our versatile one from the SP line is also proving full performance. With a tap you can cut threads for screws up to M30 (using a tapping attachment or tapping chuck). The motor is equipped with clockwise/anticlockwise rotation, as well as with a soft start function. In addition, the mechanical slip clutch is protecting the device against overload. Soft-touch handles and a practical membrane keyboard are ensuring userfriendlyness.

Prod.-No.	230 V: 18629 \| 110 V: 18629.110
Core drill dimensions	Ø 12,0 - 80,0 mm /Ø 20,0 - 50,0 mm(cutting depth 110 mm)
Cutting depth	50,0 mm / 110,0 mm
Twist drill	Ø 1.0 - 16.0 mm with drill chuckup to Ø 32.0 mmwith MT3 DIN 345
Counterboring	Ø 10,0 - 55,0 mm
Tapping	with tapping chucks: up to M30with tapping attachment: up to M30
Arbor	MT3
Stroke	190 mm
Height adjustment	60 mm
Gearbox - on-load speed	right/left1. Step 50 - 110 rpm2. Step 75 - 175 rpm3. Step 105 - 245 rpm4. Step 165 - 385 rpm
Power consumption	1.800 W
Voltage	230 V 50/60 Hz110 V 50/60 Hz
Magnetic holding force	20,000 N
Tool-Force (10 mm)*	4,200 N
Min. material thickness	10 mm
Magnetic base	92 x 238 mm,30° adjustable right and left,10 mm front and back
Weight	22.0 kg

Brand: Alfra UK

Identifier: ALFRA_RB80_RLE_3MT

Sorry! There are currently no reviews for this product.

Item Details

Brand new packaged items only.

Comes with a full manufacturer warranty (not including consumable products).

Please make use of any product reviews or youtube clips we have available to learn more about the item.

This item is usually delivered within 1 working day(s).
