(Item No Longer Available)
This product has been replaced. Click on the button below to access it.

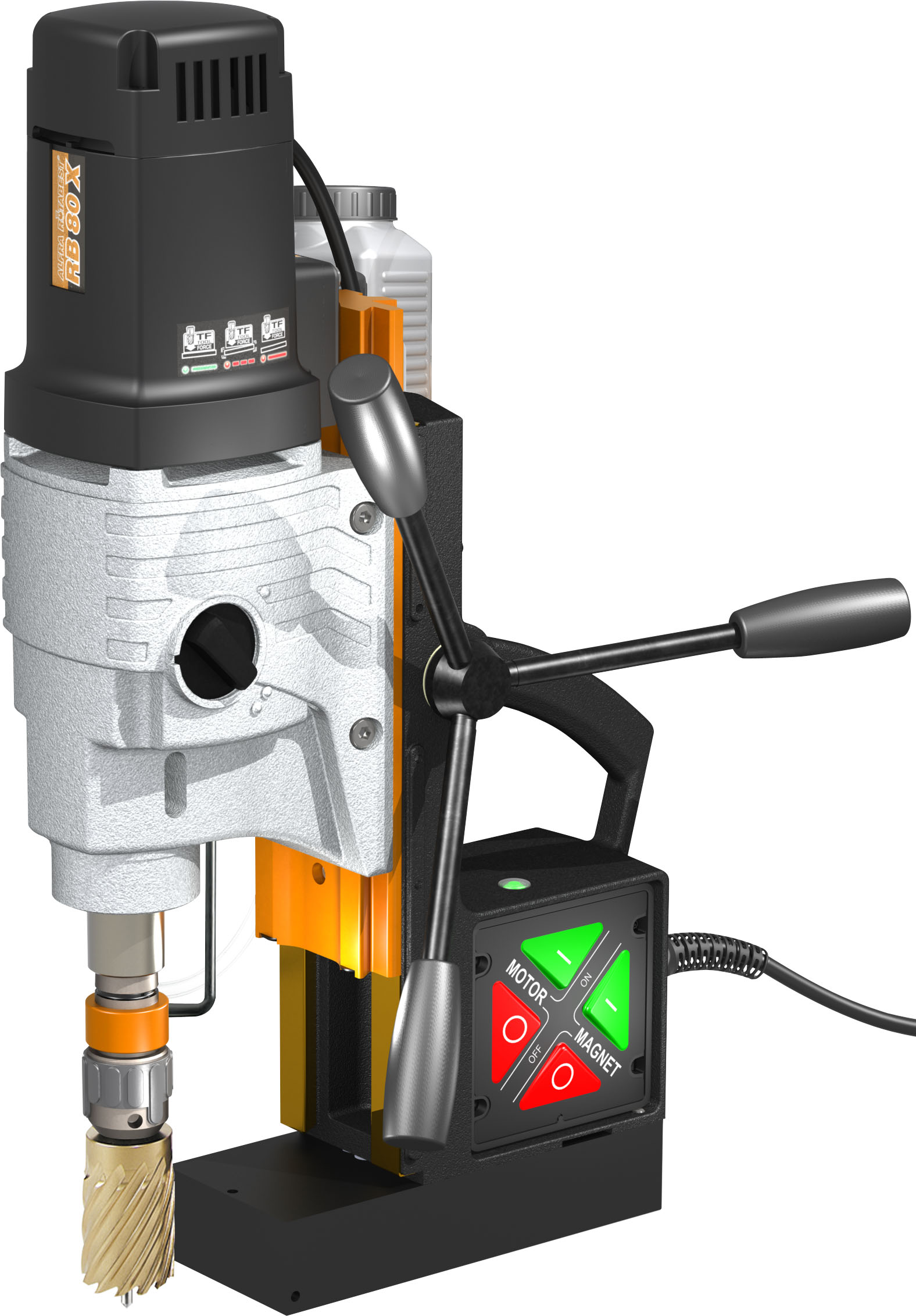

Alfra Rotabest RB80B 3MT, 4 speed 80mm Max cut unit with fixed base
Quote Ref: @55956
Product ID: rota_18780
Manufacturer: Alfra UK
Warranty: Click here for info
All machines come with a one year warranty and all spare parts that are fixed as part of a repair come with a three month warranty.
Price: (£865.95 ex VAT) £1,039.14 (inc VAT)
1039.14 2025-03-16Made in Germany by ALFRA
Our RB 80 X completes our new Rotabest RBX product line. Just as the two smaller units RB 35 X and RB 50 X it has outstanding characteristics as for example:
Mechanical safety clutch: Safes the gearbox from overload and is automatically activated
Hybrid-Relay for an extend lifetime of the switching-elements; tensile fluctuations will be caught up to 10 %
Sensor/LED: indication of optimized magnet adhesion
Self-adjusting guide rail: automatic adjustment of the ideal guidance while drilling
Height-adjustable slide: continuously adjustable stroke range
Optimized tool force: comes into effect just below the cutter, maximized by power- and weight optimization
Soft-touch-handles: optimized grip even when working with oil-covered gloves
Inlaid ferrules: perfect protection of the magnet
Oil-bath gear box: considerably reduced gear-mechanism abrasion
The performance capacity of RB 80 X (Art.-Nr. 18780) is constructed for a drilling-diameter up to 80 mm with a max. cutting depth of 50 mm.
-Cutter dimension: Ø 12.0 - 80.0 mm/ Ø20.0 - 50.0 mm (extra long 110 mm)
-Cutting depth: 50.0 mm/110.0 mm
-Twist drill: Ø 1.0 - 16.0 mm with chuck to Ø 32.0 mm with MT 3 DIN 345
-Counterbore: Ø 10 - 55.0 mm
-Tapping: with tapping attachment to M30
-Arbor: MT3
-Stroke: 190 mm
-Heigth adjustment: 100 mm
-4-speed-gearbox On-load speed: 1. Gear 110 rpm.
2. Gear 175 rpm.
3. Gear 245 rpm.
4. Gear 385 rpm.
-Power consumption: 1.800 W
-Voltage: 230 V 50/60 Hz 110 V 50/60 Hz
-Tool Force (10 mm)/magnetic holding force: 4.000 N/13.000 N
-Magnet foot: 92 x 220 mm
-Weight: 19.5 kg
Brand: Alfra UK
Identifier: 18780
Brand new packaged items only.
Comes with a full manufacturer warranty (not including consumable products).
Please make use of any product reviews or youtube clips we have available to learn more about the item.
This item is usually delivered within 1 working day(s).
