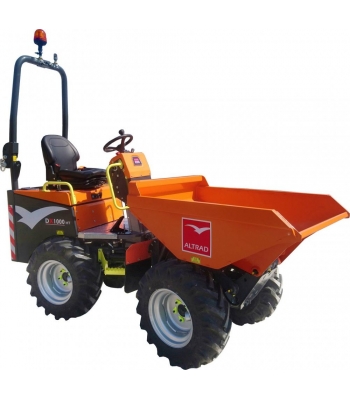

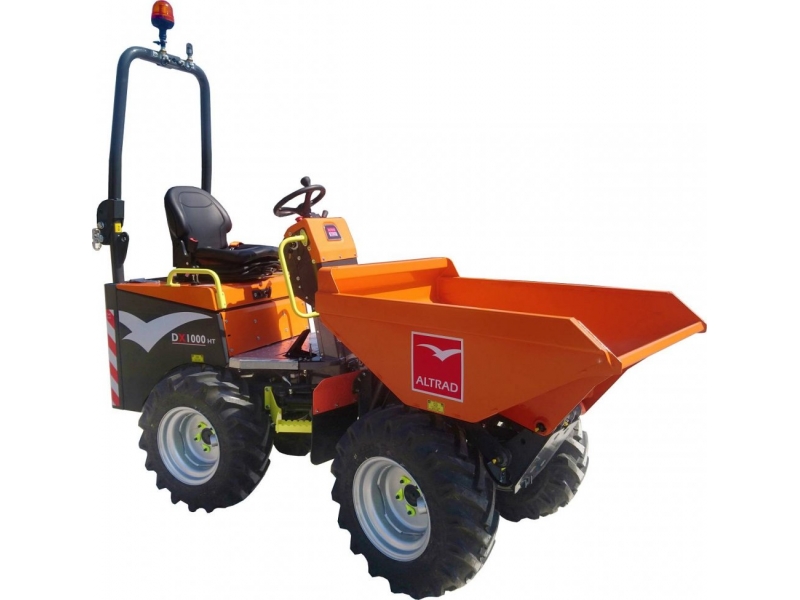

Altrad Belle DX1000 H-T High Lift 1 Tonne Dumper

The DX1000 HT is an award winning Best in Class 1-tonne high-tip dumper designed specifically for use in the plant hire sector. The DX 1000HT sets new standards for safety, strength, operator comfort and convenience and productivity on site. With a proven, reliable Yanmar 3TNV76 3 cyclinder Diesel engine the DX1000 is unrivalled in its category.

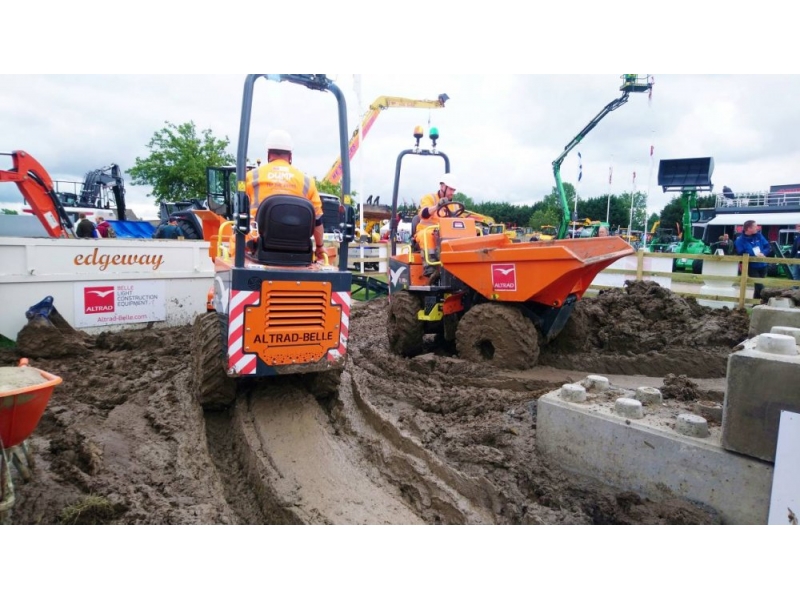

  • The Altrad full 4 wheel drive system hydraulic system gives increased traction on poor terrain and excessive mud. Better gradeability, increased productivity and less servicing.
  • Reliable, Yanmar 3TNV76, water-cooled Diesel engine - perfect for this application.
  • Market leading fuel tank capacity, reduces amount of fill-ups and down time.
  • Unique fuel level indicator window together with a low fuel level warning light allows for easy inspection and assist in ensuring rental & machine productivity high.
  • Low hydraulic fluid level warning light reducing system damage and down time.
  • Extensive use of hose clamp retainers to prevent pipe fretting and rubbing, reducing hose failures and maintenance costs.
  • Fuel and Hydraulic tank drain points reducing tank flushing time in the event of contamination or servicing.
  • Fuel - water separator reducing engine damage and down time.
  • Central Hydraulic hoses enables increased protection, reducing the risk of down time.
  • Under footplate - stone guards preventing stone/mud ingress, so less down time & cleaning required.
  • Fuel level is visible while in the operator's seat, saving time & improving safety & down time.
  • Increased leg room for improved operator comfort.
  • USB phone charger point, allowing charging while the work is done.
  • Leading brand, comfort seat compliant to latest standards EN ISO 7096 for this type of equipment. Reduces operator Strength
  • Robust, easy-clean skip with fully returned edges preventing dirt ingress / concrete accumulation, reducing down time and cleaning costs.
  • Strengthened chassis rails to increase durability.
  • High quality, shot-blast and 2-layer powder coated paint finish for the most demanding site Maximising resale values.
  • Bushed & greased steering pivot cylinder, preventing wear on the main components, cost efficient for the owners.
  • Steel belly pan protector prevents damage to hydraulic circuit.
  • Front enclosure / infill plate reduces stone / mud ingress meaning less down time & cleaning required.
  • Steering Ram - Hose guard cover plate to prevent damage.
  • Hi-quality leading brand all-terrain tyres fitted with valve protect guard, to reduce down time on site and increase productivity.
  • Emergency Stop Button for increased safety.
  • Tight turning circle allows better manoeuvrability on tight work sites, reducing shunting and increasing safety, productivity & efficiency.
  • High viz access points & anti-slip foot-steps reduces slips, trips and falls when climbing on and off machine.
  • Auto retracting seat belt prevents entanglement. Bright Orange for safety with increased visibility.
  • Safe heavy duty, easy to deploy steering lock out bar, makes workshop and transport actives safer.
  • Enclosed document box to retain machine safety documents reducing possibility of being damaged / misplaced.
  • Lockable seat pan - gas strut c/w lock out reduces chance of head / trapping injuries.
  • Anti-slip, hot-dipped galvanised floor plate for safety and long life.
  • Hazard warning chevron’s on rear of dumper for increased machine visibility on site to others.
  • Priority / safety steering valve that gives priority to the steer function in the event of low hydraulic fluid pressure or flow, therefore maintain-highest levels of machine safety at all times.
Overall Length (mm) 3190
Wheel base (mm) 1440
Minimum ground clearance (mm) 250
Track width (mm) 850
Width over tyres (mm) 1100
Height to top of ROPS (raised, with/without beacons) (mm) 2545 / 2800
Height to top of ROPS (folded) (mm) 1630

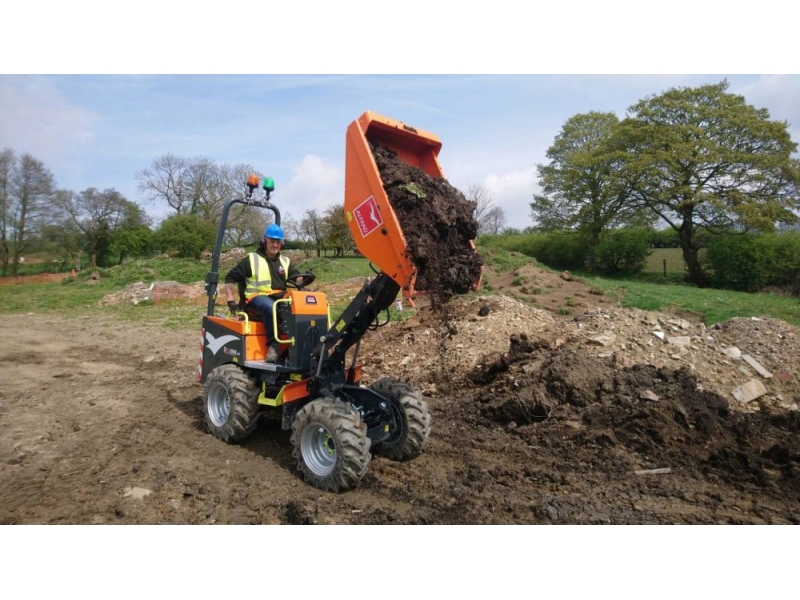

Dump Height (untipped/tipped) (mm) 1820 / 2960
Height to front lip of dumper body (untipped, lowered/raised) (mm) 1110 / 2270
Height to front lip of dumper body (tipped, lowered/raised) (mm) 400 / 1540
Discharge distance front (lowered/raised) (mm) 520 / 380
Dumper body tip angle (°) 81
Departure angle (°) 38
DX1000 HT DIESEL 1 TONNE HIGH TIP DUMPER
Part Number DX10HYSA
-
PERFORMANCE
Payload (kg) 1000
Unladen Weight (kg) 1363
Tipping Type Front Tip - High
Turning Circle of Skip (mm) 2637
Turning Circle of Tyres (mm) 2524
Steering Angle ° 39.7
Body Oscillation Angle ° 15
-
ENGINE
Engine Model Yanmar 3TNV76
Type Diesel
No. of Cylinders 3
Gross Power (Hp/kW) 21.4 / 15.9
Displacement cc (cc) 1116
Max. Torque (Nm) 66.4
-
TRANSMISSION & DRIVE
Transmission Type Hydrostatic Pump to 4 radial piston Hydraulic Motors
Tyre Size 255 / 75 -15.3
Drive Hydrostatic
Max. Travel Speed (Unladen) (kph) 12
Max. Gradient 25% (4:1)
-
ENVIRONMENTAL
Sound Pressure (LpAd) 84
Sound Power Level (LWAd) 101
-
ELECTRICAL SYSTEM
System Voltage (V) 12
Battery Capacity (Ah) 44
Alternator Output (A) 40
-
HYDRAULIC SYSTEM
Pump Type Gear Pump
Flow Rate (l/min) 30
Operating Pressure (bar/PSI) 140
Steering Sytem Hydraulic
-
BRAKING SYSTEM
Working Brake Hydrostatic Dynamic Breaking
Parking Brake Failsafe Automatic
-
STANDARD EQUIPMENT
Folding ROPS Frame Yes
Reversing Alarm Yes
Flashing Orange Beacon Yes
Hourmeter Yes
Seat Belt (Hi-Viz Orange) Yes
Adjustable Seat Yes
Heavy Duty Articulation Lock Yes
-
CAPACITIES
Skip - Water (Ltr) 280
Skip - Struck (Ltr) 400
Skip - Heaped (Ltr) 500
Fuel Tank (Ltr) 35
Hydraulic Oil Tank (Ltr) 18
