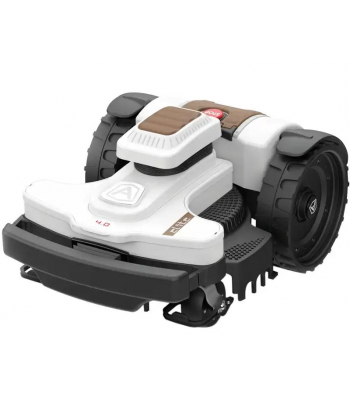

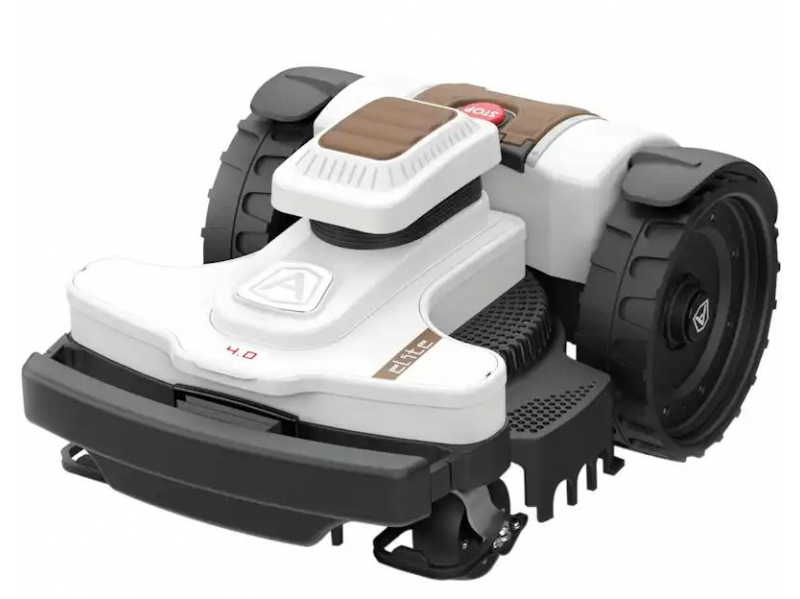

Ambrogio 4.0 Elite Premium Robotic Lawnmower 4G - Up to 3500 m2 - AM040L401Z - (Optional 4Wheel Drive Version Available)

The Ambrogio 4.0 Elite combines all of the features you’d expect from an advanced robotic lawn mower. Its high rear wheels and wide tread give it excellent traction compared to the other competitors in the market today.

Featuring a jointed deck, the front and rear axle can move independently, which makes it ideal for undulating ground. Its high quality wheels will always be touching the ground, dramatically improves the robots maneuverability.

Ambrogio robots are made from only premium parts and high-grade materials that have been thoroughly tested at the Ambrogio factory in Italy and the UK. Your purchase is backed by a 6 year warranty* (*conditions apply), so you know it’s a robot that you can count on.

The Ambrogio 4.0 Elite cuts with a high-quality solid steel blade. Compared to robots from other brands that don’t use the solid blade system blade, longevity is vastly improved. You can expect a whole season of use, whereas smaller replaceable blades will need changing every few weeks.

These large blades maximize the cutting area, ensuring a clean and uniform cutting action. For added peace of mind, the 4.0 has a rain sensor, along with an easy to use large touch screen colour LCD display ensuring the controls are simple.

Suited to working in tough conditions it's also powerful. 10.35 Ah Lithium-ion batteries ensure a long run time of up to 3:45 hrs The robot also features electric height of cut, which can be changed within the app or on the robots control panel. GSM Connect that comes as standard.

This means you can expect full connectivity with the Ambrogio App. Here you can control the robot remotely, see it navigate in real time and have control of its scheduling, and find software updates. You can even pair the 4.0 up with other robots from the Ambrogio range with +infinitysystem.


The Ambrogio 4.0 Elite model combines the features of flexibility and modularity with 4.0 technological innovation. It comes with a ZCS Connect device that allows the safe connection of the robot anytime and anywhere, by means of GPS, Bluetooth and GSM technology. With a simple touch, the robot can be stopped and started and areas can be excluded.

The Geofence Alarm allows the system to alert the user if the robot exits the garden. In this way, you will always be informed on the movements of your Ambrogio 4.0. An evolved anti-theft system.

The ZCS technology is more user-friendly and interactive for easier management of your lawn in a completely autonomous manner. Always, anywhere, anytime super smart Ambrogio!
The ZCS CONNECT MODULE * The future is here and now!
State-of-the-art technology has always been integrated in all Zucchetti Centro Sistemi products.

This new ZCS module makes it possible to connect and interact with the robot anytime and anywhere (using your own smartphone or tablet). With the aid of the Ambrogio Remote App, you can switch the profile of the robot, check the location (geo-localisation), and have the robot mow in certain areas of the garden.

(Go Away), monitor the status of the robot and receive alerts. If the robot is removed from the garden (Geofence Alarm, a sophisticated anti-theft system), you will be notified immediately. Thanks to the functions "Go Home" and "Work Now" it is possible to send the robot back to the charging station or have it mow again.

Ambrogio 4.0 Elite is the only line of robot lawnmowers that has up to 6-year warranty.
* 2 Year Warranty covering the conditions and limitations stated in the warranty booklet
* 4 Year Extension:
* To the warranty covering plastic components that are not subject to wear and tear that have manufacturing defects
* To the warranty covering electronic components excluding the limitations specified in the warranty booklet
* To the warranty covering cutting and propulsion motors limited up to 5,000 hours of operation

In order for the warranty extension to be valid, it is mandatory to carry out regular winter servicing, to register such servicing on the manufacturer's website, to request the issuing and the appropriate filling of the relative, duly-completed certifications.


Features of Ambrogio 4.0 Elite Robotic Lawnmower:
* Jointed
* Self-cleaning
* Smart batteries
* Double tyred rubber wheels
* Next generation processors
* Bluetooth GPRS
* ZCS Connect
* Touch display
* Blade motorisation
* SDM Cut (Sat.Dynamic Memory)

Specifications of Ambrogio 4.0 Elite Premium:
* Max sq.mt suggested: 3500 sqm
* Motor type Brushless
* Lithium-Ion Battery (25,9V): 1x8.7 Ah
* Max allowable slope: 45%
* Max Slope: 35%
* Slope on the edge or perimeter wire: 20%
* Average Working Time: 04:30 h
* Recharge mode: Contact

Cutting System:
* Blade type: 6 cutter
* Cutting Width: 25cm
* Cutting Height (min-max): 20-65mm (motorised - electronically adjusted)
* Spiral Cutting: Yes
* SDM Cut: Yes
* Self-Levelling: Yes
* Eco Mode: Yes
* Rain sensor: Yes
* Maximum managed areas: 8

Control Devices:
* User Interface Touchscreen Display
* APP Control Bluetooth-GSM
* Bluetooth receiver Yes

Safety:
* Push/Stop emergency Button Yes
* PIN Code Pin & Geofence

Standard Equipment for Installation:
* Perimeter Wire Lenght: 0 m
* Fixing nails 20
* Charging Station: Yes
* Cover Recharging Base: Optional

Features:
* Weight with Batteries Incl.: 22.9kg
* Robot Size (lxwxh) 635x464x300 mm
* Wheel Profile: Flex Rubber
* Level of protection: IP44
