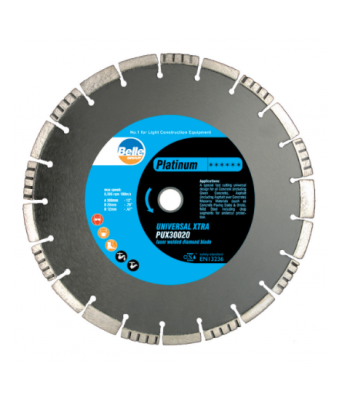

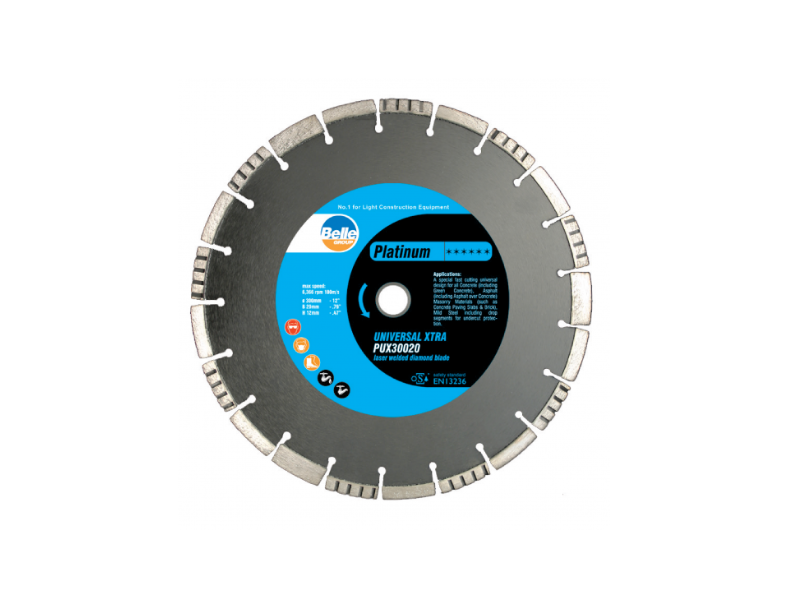

Product ID: PUX30020
Related Products: See all related products
Manufacturer: Belle
Warranty: 1 year
Altrad Belle shall at its option repair or replace free of charge any item which fails, where it is shown to the company's reasonable satisfaction that such failure or failures have resulted from the company's faulty design, workmanship or material defect, and provided further that in respect parts not of the company's manufacture. The company can give to the customer only such guarantee as the manufacturer gives to the company. The repaired or replacement part or parts shall be supplied free of charge but the company's liability as to delivery and fitting or other expense shall be limited to carriage paid in the U.K or F.O.B U.K port.
The defective part shall become the property of the company and shall be held to its order. Altrad Belle accepts no responsibility for any consequential costs incurred through loss of use or any other charges or costs whatsoever resulting from a warrantable failure.
This warranty is given, subject to certain obligations undertaken by the owner as described in this document.
Period of warranty for all products - manufactured and supplied by Altrad Belle carry an eighteen month warranty from date of invoice to dealer or twelve months from date of sale to customer whichever occurs first.
Period of warranty for replacement parts - manufactured and supplied by Altrad Belle will carry a Warranty to the end of the duration of the machines warranty period.
Period of warranty for new parts - manufactured and supplied by Altrad Belle carry a three month warranty from date of invoice.
Price: (£114.98 ex VAT) £137.98 (inc VAT)
137.98 2024-12-03Rating: 5/5 based on 1 review(s).
Part Number | Diameter (mm) |
Speed(rpm) | Segment Height (mm) |
PUX30020 | 300 x 20 | 6360 | 12 |
Brand: Belle
Identifier: PUX30020
Published on Wed 22nd May 2013 by D Courtney
There are many different types of diamond cutting / drilling tools, such as circular blades, drills and grinding wheels, with each tool having it's own unique uses. They all however keep the same basic principles:
A diamond-impregnated segment may have three different forms, a segmented rim, a continuous rim or a castellated rim.
The metal centre of the segmented blade is produced from very high quality quenched, drawn steel, with the segments separated by slots. These slots assist in cooling the blade during sawing by allowing water (wet cutting) or air (dry cutting) to flow between the segments. They also permit a certain amount of elasticity in the blade during sawing.
Most of the steel sheet is mill-tensioned so that the blade rotates vertically straight whilst allowing it a certain elasticity.
The segments or diamond-impregnated rims are a mixture of diamond grains and powdered metal. The diamonds used in the manufacture of the saw blades are almost exclusively industrial diamonds of different sizes and qualities depending on the material to be cut. During the manufacturing process the metallic powder and diamond grain mixture is compressed at very high temperature to obtain a solid metal alloy (called the bond or matrix) which retains the diamond grain.
The segment or rim is slightly wider than the steel centre of the blade. This clearance enables the leading edge to penetrate the material without engaging the steel.
Various processes are used for fixing the segments or rims firmly to the steel:
A diamond saw blade does not cut but works by milling. When the tool is given its edge in the factory, the individual diamond crystals are exposed on the leading edge and the sides of the segment or rim. It is these exposed diamonds which carry out the milling.
The metal matrix holds each diamond in place. Whilst working, each diamond is shouldered at the back by a "comet's tail" which reinforces the supporting action of the bond.
Whilst the blade is rotating on the saw shaft, the operator pushes the blade into the material. The surface diamonds thus exposed mill a groove in the material, reducing it to fine powder. Whilst the blade mills the material, the latter exerts wear on the blade.
During cutting the exposed diamonds may crack or break (all the more rapidly, the harder and denser the material). The material simultaneously starts to abrade the metal matrix, which gradually releases more diamonds. The more abrasive the material, the more rapid the tendency to wear down the matrix.
With a diamond tool properly matched to the material being cut, the equilibrium between the work of the diamond and the resistance of the bond to abrasion is at its optimum: the diamond is held in place until it is destroyed and new crystals appear. The whole quality of a diamond tool resides in this equilibrium.
Blades intended for cutting hard, dense less abrasive materials (such as tiling, hard bricks, stone or old hard concrete), require a softer metal matrix. This will wear down faster, replacing the worn diamonds fairly quickly so that the blade continues to cut.
Blades intended for cutting soft, abrasive materials (like green concrete and asphalt) must have a hard, abrasion-resistant metal matrix in order to retain the diamonds for a greater length of time.
