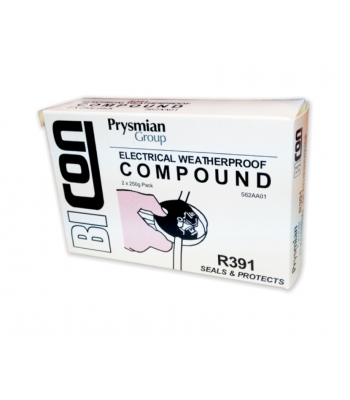

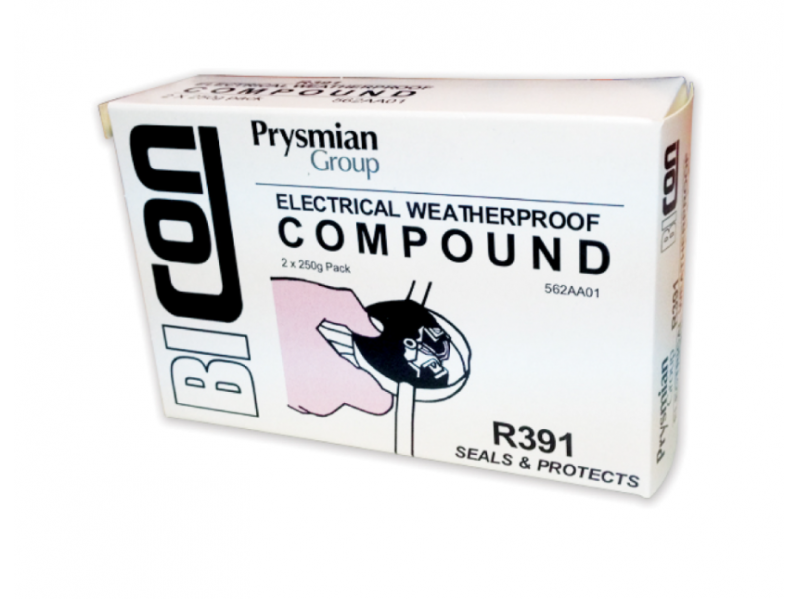

BICON Electrical Weatherproof Compound - R391

Product Overview:

Prysmian BICON R391 Electrical Weatherproof Compound is a non-hardening plastic waterproof sealant used to protect electrical connections from moisture and corrosive vapors. It has the consistency of putty and good insulating properties. Can be moulded around terminals or connectors, or can be used as a mechanical seal for any form of enclosure.

Prysmian BICON R391 Electrical Weatherproof Plastic Compound is soft enough to be readily moulded around terminals or intricate contours or pressed into cavities. It is not sticky but has good adhesion to moulded plastic and other surfaces to resist the dislodging effects of vibration and to prevent moisture creeping along the interface. It does not harden on exposure to air or sunlight and does not shrink crack or peel. Exposure to sunlight may cause a slight skin hardening which does not affect the mass, and which can easily be removed by working in the hand. The compound is non-hardening and so can be readily moved and replaced for maintenance purposes. The material does not liberate toxic fumes even if overheated and is harmless to the hands.

Prysmian Weatherproof Plastic Compound consists of an inert filler dispersed in a plastic base. It is not resistant to oils, aromatics or aliphatic hydrocarbons. Highly resistant to water permeation, acids and alkalis in liquid or vapour form under normal conditions. No deleterious effect on metals and plastics or on natural rubber, synthetic rubber, PVC or other cable materials. It can be used to seal cable ends or cable entries to enclosures. The compound is coloured reddish brown and has an unlimited shelf life under normal conditions of wrapping and storage.

Technical Data:

Product Features:

• Prevents ingress of moisture
• Non Hardening
• Protects exposed terminals against corrosion
• Easily applied to intricate contours
• Good adhesion to metal, plastic, wood, rubber, PVC, etc.
• Suitable for temperatures between -20˚C and +80˚C
• Vibration resistant
• Long shelf life when stored in original packaging (under normal conditions)
• Harmless to hands

Product Applications:

• The prevention of electrical leakage on circuits due to dampness and the protection of electrical contacts against corrosion.
• The sealing of irregular openings, cable entries, screw threads and covers of electrical equipment.
• It is useful as a filler for junction boxes and can also be used for many non electrical applications whenever a reliable non-hardening moisture or water seal is required.

Material Composition:

One or more liquid polymers selected from:

• Depolymerised natural rubber
• Polybutene
• Polyisobutylene
• Butadiene-Styrene
• Polybutadiene
• Polyvinyl Alkyl Ether

and one or more mineral reinforcing agents selected from:

• Talc
• Whiting
• Clay

and Iron oxide pigment

and Petroleum Bitumen

and Polymerised 2,2,4 Trimethyl 1,2 Dihydroquinoline (Flectol H).
