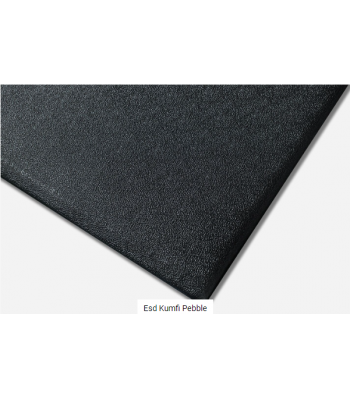

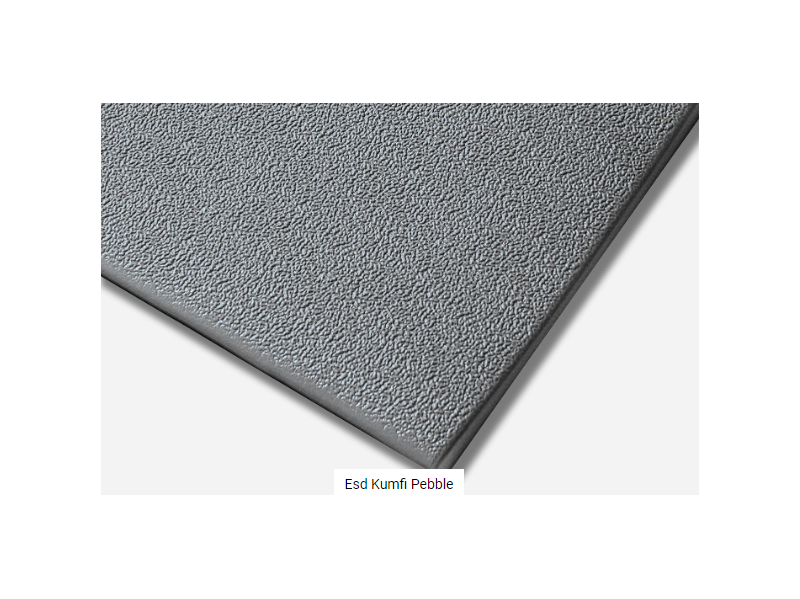

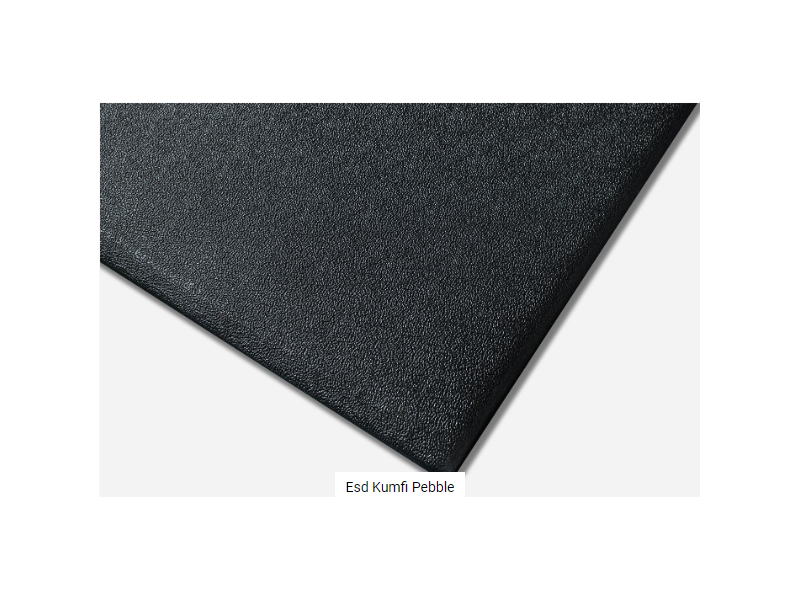

Blue Diamond ESD Kumfi Pebble - Anti-Fatigue Vinyl Sponge Matting - Black/Grey available in different sizes

ESD Kumfi Pebble is formulated to dissipate static electricity. Simple worker tasks - working, walking or even sitting on certain types of stools - creates static electric. Left unchecked, static can discharge into static sensitive equipment, potentially causing damage. Conductive/Anti-static matting drains static from workers, preventing unpleasant static shocks and safeguarding equipment.

• Anti-fatigue vinyl sponge matting designed to provide anti-static protection in light duty applications.
• Ideal for assembly lines, computer rooms, hospitals and photocopy areas.
• Meets IEC61340-4-1 (category DIF) measured resistance Rg 106-109 Ω, Rp 106-109 Ω.
• Electrostatic charge (walking test) meets ISO6356 and EN1815.
• Overall height 9.4mm.

Specifications

• Wear Resistant: Wear resistant surface to Level 1
• Anti-Fatigue: Anti-fatigue protection to Level 2
• Slip Resistance: Slip resistance Level 1
• ESD: ESD Anti-static

Environment

• Dry Zone: Dry Zone

Tests

Product Testing

• Compression deflection U.S. 1.4 kg/cm2 2.8 kg/cm2
• Foam battery ASTM D3574
• Abrasion resistance ASTM D3884-01 500 Cycles 5000 Cycles
• Static coefficient of friction ASTM C1028-96 0.79
• Elongation ASTM D412 125%
• Breaking load ASTM D412
• Graves tear strength ASTM D 1004
• Hardness ASTM D2240-02
• Anti-slip DIN 51130 and BG-RULE BGR181

Fire Testing

• Critical radiant flux ASTM E-648
• Fire retardancy DIN4102 EN 13501-1
• Flammability test ASTM D2859

Sustainability

• Recyclable material
• Reach Compliant (Registration, Evaluation, Authorization and Restriction of Chemicals)
