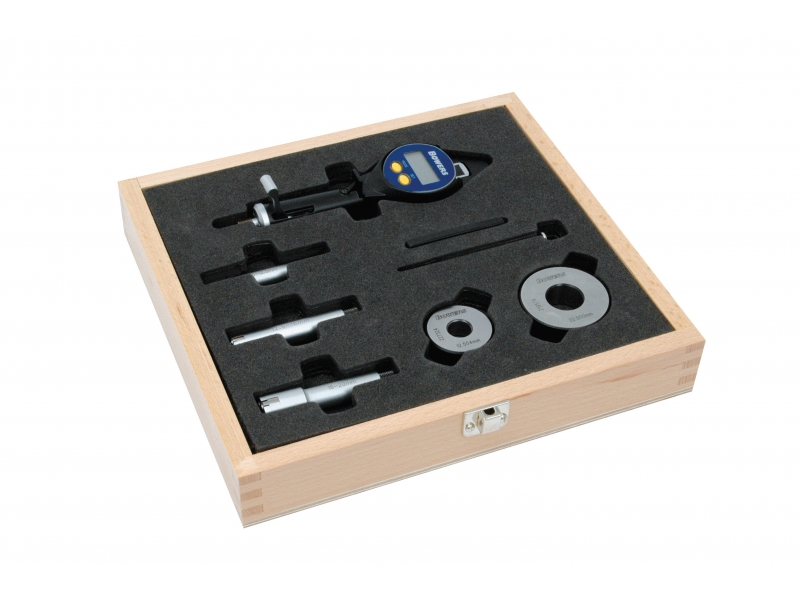

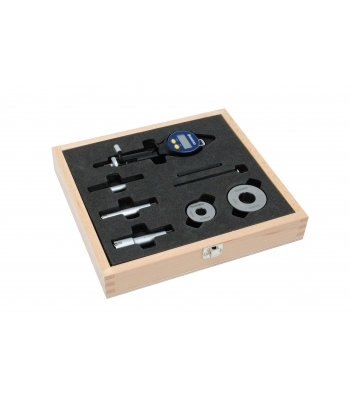

Bowers Group Digital Lever Bore Gauge - Sets - SXTL3M - 6 - 10mm

The robust Bowers XTL Lever range is perfect for vertical bore measurement, providing accurate and repeatable bore gauging under inspection department or shop-floor conditions. The XTL has a simple ergonomic action and can be fitted with a wide variety of analogue and digital indicators or even transducer probes. The range can be provided with IP65 rated digital indicators, rendering it resistant to coolant, water and airborne particles. A 'wireless' gauge module is also available, enabling cable free communication with remote data collectors, PCs etc.

The cost-effective new XTL boasts hardwearing extended travel carbide measuring anvils and is able to measure diameters up to 100mm.

Features

• Measuring range 6-100mm (diameters above 100mm on request)
• Excellent for vertical bore measurement
• Simple 2-button operation
• Large easy-to-read swivel display (20-100 sizes only)
• 2 preset memories
• RS-232C output
• Self-entering heads
• Constant measuring pressure
• Fast, accurate measurement
• Resolution 0.001mm (0.00005")
• Tungsten carbide measuring faces on all 3-point heads from 12.5mm
• Blind bore measurement above 12.5mm (0.500")
• Extensions available above 6mm for deep hole measurement
• Setting rings included with individual instruments and sets
• UKAS certificates supplied as standard with all setting rings
• UKAS certificates supplied with all gauges
• Serial number on all gauges and measuring heads
• Heads with special anvils available to suit specific customer requirements (e.g. Threads, grooves, 2-point, spherical, splines etc)
• Bore gauges manufactured according to DIN863, part4

Specifications

Code: SXTL3M

Description: Mini Indicator

Range (mm): 6-10
