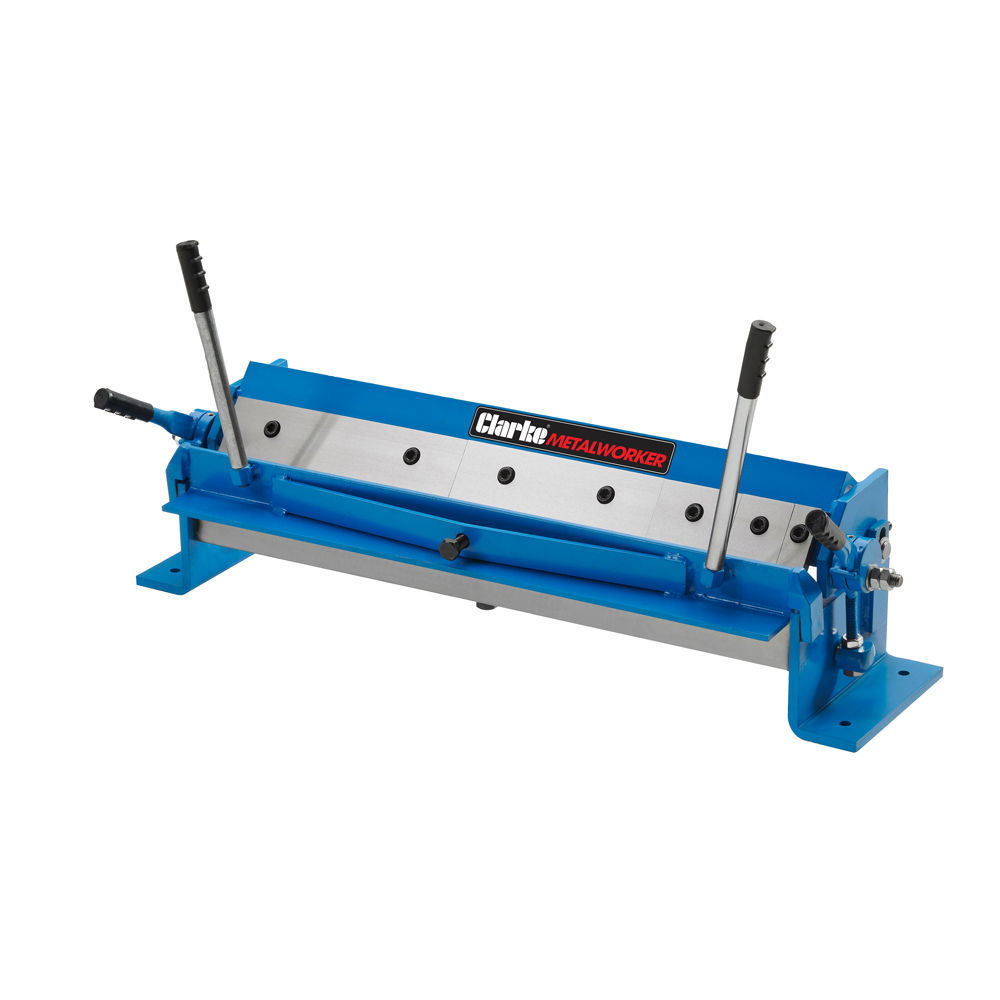

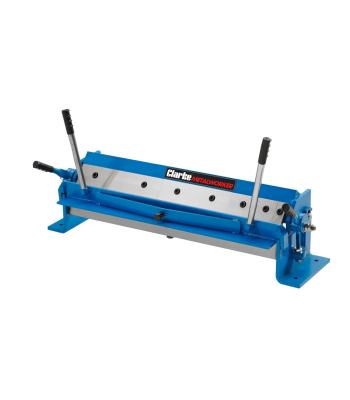

Clarke CBPF1 600mm Box & Pan Folder - Code 7627906

A vital piece of equipment for any professional fabrication shop or metalwork hobbyist, the Clarke CBPF1 Box & Pan Folder creates precise and effortless metal bending and folding. This versatile tool is designed to create complex bends and folds for a large variety of materials of varying thickness (1.5mm Aluminium, 1.0mm Mild Steel & 0.8mm Stainless Steel) and is fitted with adjustable clamping fingers, clamping pressure rod and a setback wheel, with adjustments increasing in 25mm increments from 25mm to 600mm.

Finger sizes include 1x 25mm, 1 x 51mm, 1 x 76mm 1 x 204mm and 1 x 254mm. This gives you complete control over the metal working process whilst the 4 mounting holes allow for folder to be mounted to a bench for increased stability during operation. The Clarke CBPF1 has the capacity to bend and fold material with a width of 600mm up to a 135° angle. The long handles provide increased leverage to minimise the effort required to use the product, and the robust steel construction ensures a long working life. The 5 removable clamping fingers are precision machined and ground from high carbon steel to increase strength and reduce the risk of damage, whilst the bed and beam are adjustable for alignment fore and aft and fitted with 2 independent cam action levers.

The Clarke CBPF1 Box & Pan Folder is perfect for both DIY and Trade metalwork applications.

• Robust carbon steel construction for longer working life
• Adjustable clamping fingers in increments of 25mm from 25mm - 600mm
• Folds to a maximum of 135°
• Maximum material capacity: 1.5mm Aluminium, 1.0mm Mild Steel, 0.8mm Stainless Steel
• Max. depth of 4 equal returns with tray inside brake: 20mm
• Max. depth of 4 equal returns with tray outside brake: 30mm

Technical Specification
