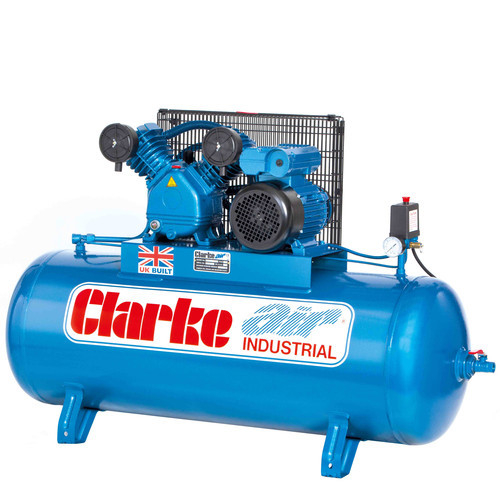

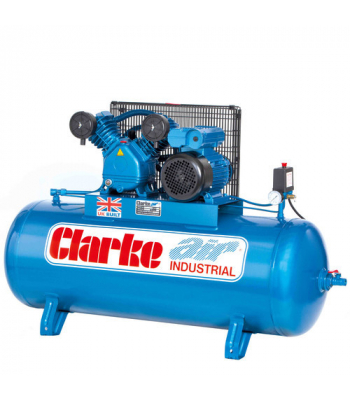

Clarke XEV16/200 - Industrial Air Compressor (230V 1ph) - Code 2092274

The XEV16 range of air compressors are British built for performance and reliability.

This quality belt driven air compressor is designed with industrial & commercial users in mind. With the air capacity & power, to drive many of the most commonly used air compressor tools, the XEV16 / 200 air compressor will satisfy the air requirements of garages, small factories, workshops and farms.

Unlike smaller air compressors this unit benefits from a V Twin pump, aerodynamic bladed flywheel, positive splash-feed piston lubrication and twin cast iron cylinders; all lead to efficient & cool running, smooth operation which extends the life of the air compressor.

It is recommended that larger air compressors such as this are fitted with heavy-duty anti vibration floor mountings Part No 8950420

This compressor must be run from a 30 Amp supply minimum.

• 14cfm displacment - cast iron, 'V' twin cylinder compressor pump
• 200 litre air receiver (CE certified)
• 3hp motor, 230v, 1ph continuously rated with overload protection
• 10.3bar (150psi) maximum working pressure controlled by a fully automatic pressure switch.
• Specification also includes safety valve, pressure gauge, air outlet valve & drain tap.
• Application - professional automotive/industrial
• Dimensions (LWH) 1460x470x910mm, Weight 100kg
