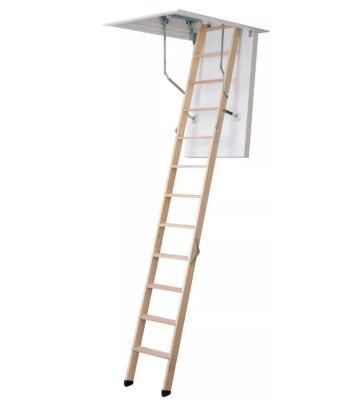

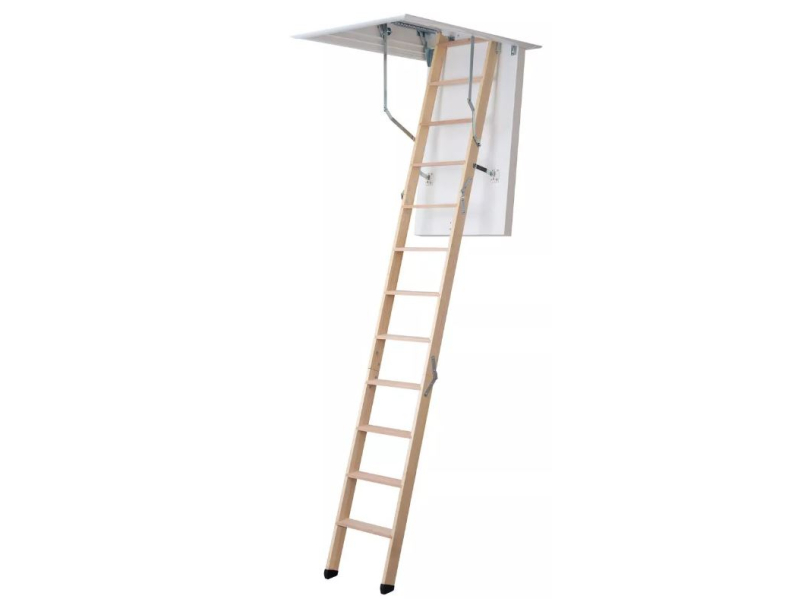

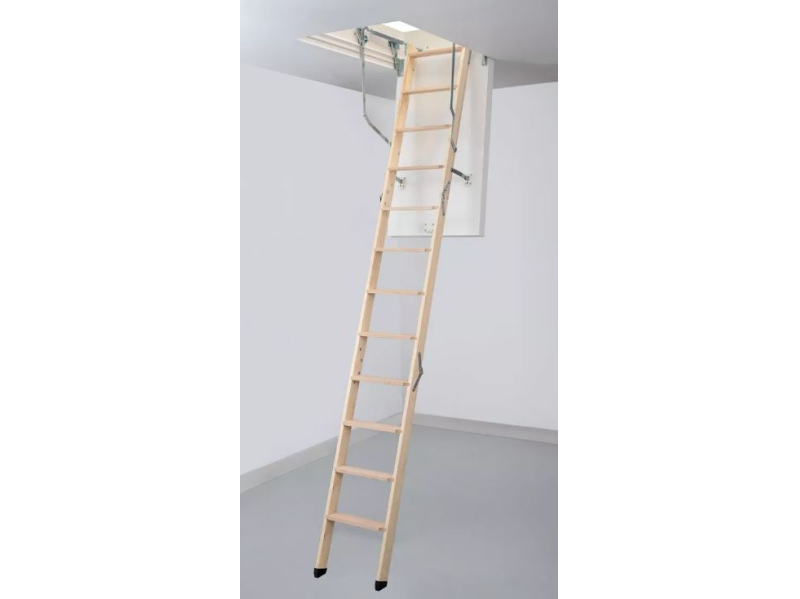

DOLLE Click Fix CF76G Loft Ladder 115 x 55 cm Opening Size - Code DOLLE-1040644

DOLLE clickFIX® 76G can now also be installed flush to your ceiling. The DOLLE clickFIX® loft ladder comes with two options, one for flush installation integrated in the plaster board or a second option to use architraves that visually conceal the installation gap. Both options are designed to be simply attached to the casing for a seamless finish. The flush installation, here the plasterboards are placed directly against the profile mounted on the loft ladder casing, leaving only a narrow line visible when the plasterboard is mounted. This plasterboard profile makes the plasterboard strong and solid – keeping a beautiful finish forever.

High quality, top loft ladders form the transition from the living area to the loft space. In addition to a simple and safe installation process the clickFIX® also prevents the loss of energy preventing the escape of warm air from the living area. The patented loft ladder DOLLE clickFIX® meets all requirements in one system: Thanks to its modular construction and easy installation along with excellent insulation properties the loft ladder has a component U-value of 0.49 W / m²K.

Specifications:

• Opening size (length): 115cm
• Opening size (width): 55cm
• Floor-to-ceiling: 274cm
• Swing Clearance: 122cm
• Ladder material: wood
• Trapdoor material: sanwhich construction
• Trapdooe thickness: 76mm
• Insulation: 70mm
• Casing thickness: 18mm
• Outside casing:113cm
• Casing (height): 24cm
• Tread thickness: 17.50cm
• Tread width: 35.80cm
• Tread depth: 83mm
• String thickness: 21mm
• String depth: 83mm
• Max load: 150kg
