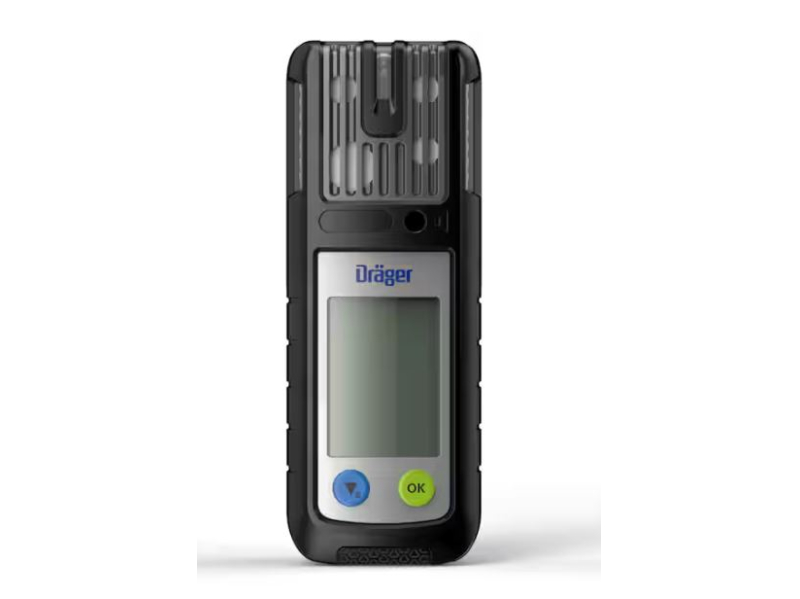

Drager X-am 2800 Multi-Gas Detector - 3703919

The X-am® 2800 multi-gas detector measures up to four gases and is equipped with a particularly shock-resistant CatEx sensor. With the Dräger Gas Detection Connect software, it offers live data transmission and powerful fleet management. Designed for personal monitoring, the X-am® 2800 offers the highest level of safety at a low cost of ownership.

Powerful data analysis in the cloud

Safety and efficiency thanks to its networking capability: Transfer your recorded data directly and via Bluetooth to a smartphone or the Dräger ConHub (gateway) and from there to the backend of the Gas Detection Connect software. As an alternative, you can also transfer the data directly to the cloud with the X-dock test station. This way, you have secure access to your data and its analysis at any time and from anywhere - simply via your internet browser.

Comfortable asset management

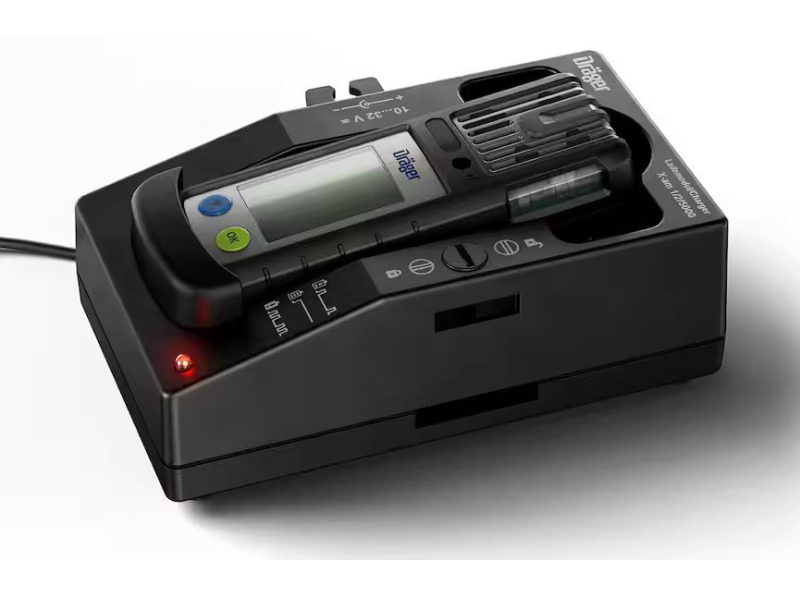

With the X-am 2800 you can manage your fleet of equipment comfortably and efficiently in daily use. Save operating costs and time through fast tests by using the automatic test station X-dock with low gas consumption or a pure mechanical bump test station. Further advantages: powerful fleet management via our smart software solution, convenient firmware updates in the X-dock, an optional RFID transponder and individual colour marking of the devices. Few, easy-to-replace spare parts - including the power supply - and durable sensors ensure that your devices remain operational for many years. Dräger provides a 4-year manufacturer's warranty on the basic device. Existing, relevant accessories from its predecessor series, (X-am 2500/5000/5600) can continue to be used.

Tailor-made gas monitoring

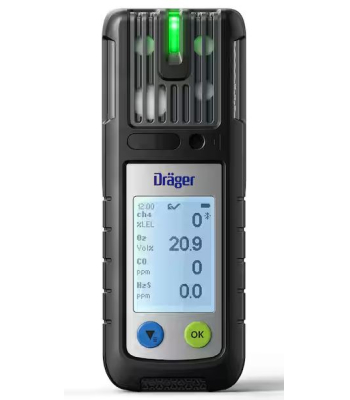

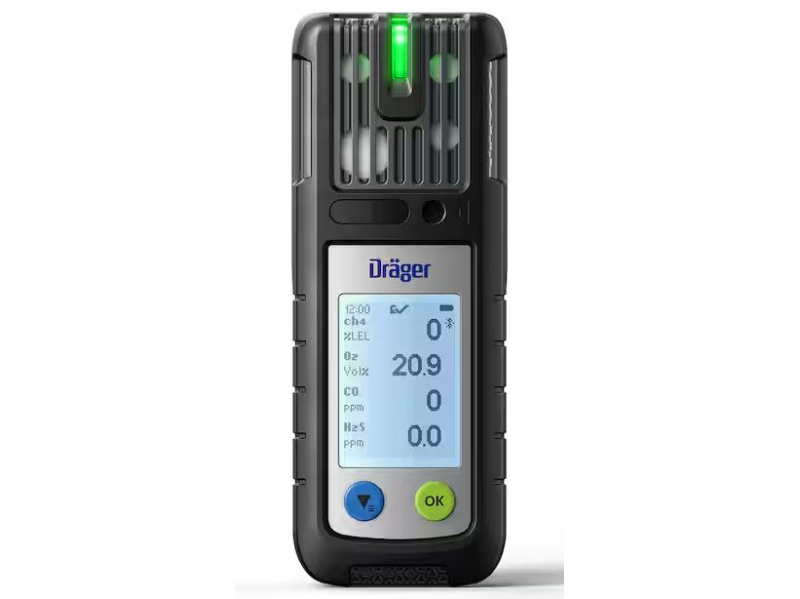

Small and lightweight: The X-am 2800 is comfortable to wear and easy to use even with gloves on thanks to its large buttons. The display clearly shows important information such as gas readings, alarms and time. The green D-light indicates that the unit is ready for use. All this, plus the language-free menu, makes it pleasantly simple to use and familiarise yourself with. For your added safety, its oxygen channel has four alarm thresholds - real prealarms and main alarms for falling and rising concentrations. Approved for use in Ex zone 0, it has also been tested according to protection class IP 68. The device has a manually triggered panic alarm and an optional motionless alarm. Both functions together are called the "Bodyguard" alarm.

Sensors: durable and powerful

The newly developed Ex sensor combines many advantages: readiness for calibration within seconds, extreme robustness against shocks and the measurement of flammable vapours - such as petrol, diesel and nonane. You can also set the measurement gas to methane, propane, hydrogen, and many other gases. The performance is complemented by Dräger's simple cross calibration concept, in which the measurement gas, calibration gas and bump test gas can be specified individually. Upon testing, the X-am 2800 then takes over the necessary conversions. The sensor was developed with the aim of meeting the demanding requirements of the new IEC standard 60079-29-1 (International Electrotechnical Commission) for such sensors. At the same time, the Ex sensor is resistant to poisoning substances such as silicones and other harmful substances. This combination of properties is exceptional. With years of experience in sensor technology, Dräger develops and produces the sensors itself, including the powerful and durable electrochemical sensors in the XXS format. Your advantage: sensors and device are perfectly matched to each other — saving you operating costs.

Technical Data:

• Dimensions (W × H × D) 130 x 48 x 44 mm (5,12 x 1,89 x 1,73 ")
• Weight typically 220 to 250 g, depending on sensor equipment
• Housing robust 2-component housing
• Dipslay Matrix display with high resolution
• Ambient conditions
• Temperature -20 to +50 °C (Measurement and storage) -40 to +50 °C (Use in potentially explosive atmospheres)
• Pressure 700 to 1300 mbar (Measurement) 800 to 1100 mbar (Use in potentially explosive atmospheres)
• Relative humidity 10 to 95 % r.h. 5 to 95 % r.h. short term
• Protection class IP 68
• Alarms
• Visual 3 LED "red" (gas alarms) 3 LED "yellow" (device alarm)
• Audible Multi-tone > 90 dB at 30 cm
• Energy supply NiMH battery, replaceable by user, rechargeable
• Bluetooth® Bluetooth 5.0 (disabled for some countries outside the EU and outside North America, but can be retrofitted. Contact DrägerService).
• Operating times typical 12 h (Bluetooth active) typical 100 h without Ex-sensor
• Charging time < 4 h
• Ready for measurement < 60 s after switch-on
• Data logger Application of an optimised data compression method with high accuracy and large storage capacity. (Typically data compression >90 % compared to the traditional data logger concept with adjustable interval)
