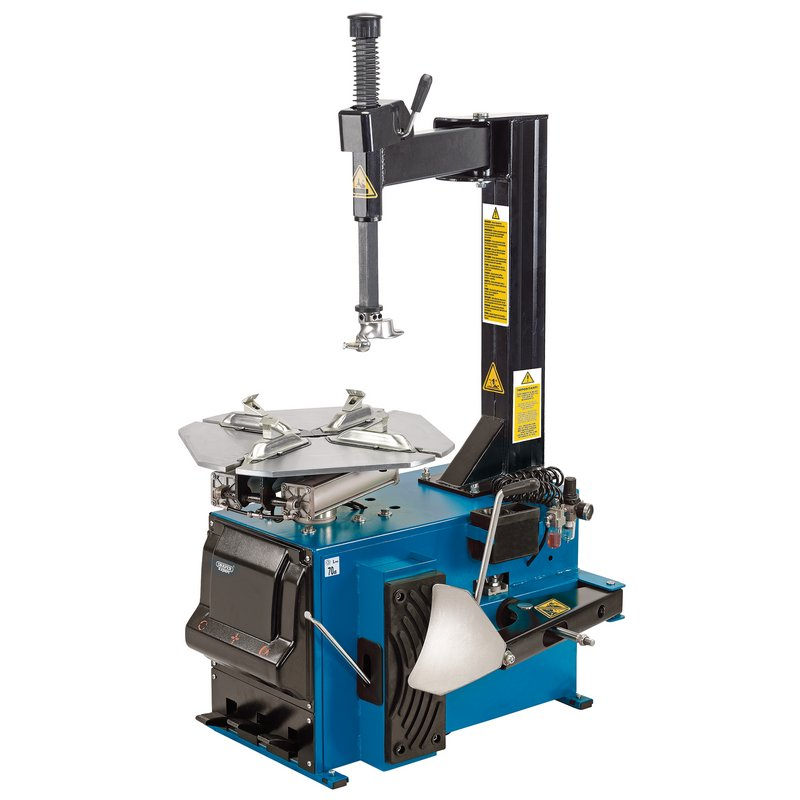

Draper TC100 Semi Automatic Tyre Changer - Code: 81645 - Pack Qty 1

Expert Quality, semi automatic tyre changer, capable of removing and replacing tyres on wheels up to 23". The fully motorised turntable, pneumatically operated clamping jaws and powerful pneumatic bead breaker enables the changing of conventional tyres quickly and easily. The self centring four-jaw chuck, controlled by two clamping cylinders, always ensures wheel rims are correctly clamped. Alloy rims are treated particularly gently as the mounting head is provided with plastic protectors. The bead breaker is attached with a large anti-skid rubber pad, which preserves the tyres and rims. The machine is operated by a standard 13amp 3 pin plug and the mounting arm swings to the side, allowing the machine to be installed directly near a wall, perfect for those with limited working space. Supplied with the following accessories: tyre lever, filter regulator lubricator to connect your compressed air supply, alloy rim protectors, head tongue protectors and inflation gun and air hose.

Specifications:
Motor: 1.1kW
Power supply: 230V
Bead breaker force: 2100kg
Pneumatic supply: 90-115psi (6-8BAR)
Suitable for use on wheel width: 3" to 14"
For rim dia. (internal locking): 13" to 23"
For rim dia. (external locking): 11" to 21"
Max tyre outside diameter: 40" (1000mm)
Dimensions: 1740mm x 950mm x 760mm
Weight: 180kg

Stock no: 81645

Part no: TC100

Barcode: 5010559816453

Item weight: 212kg

Comments: Please note, this product now includes installation in the price, so let us help you to get set up in your garage or workshop. Postcode restrictions apply.
