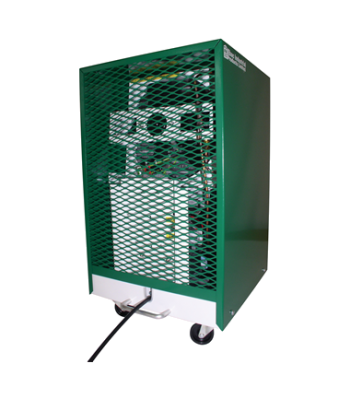

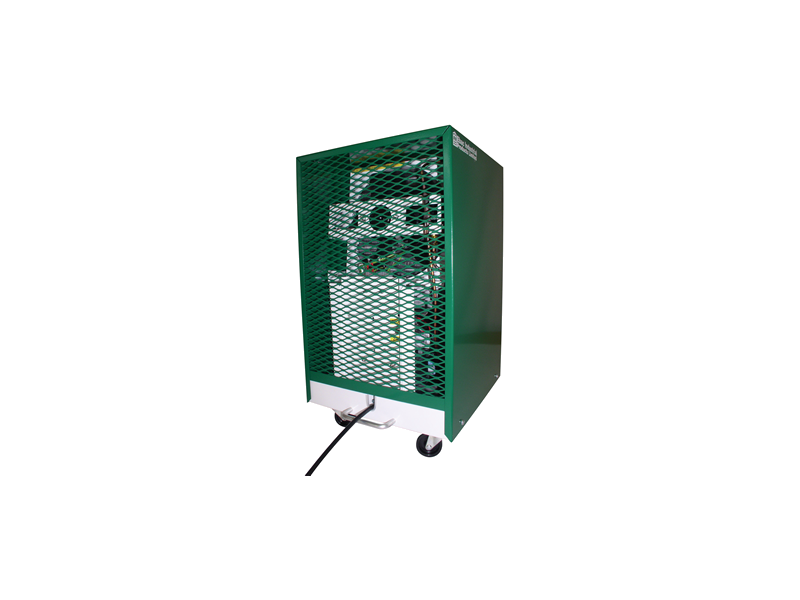

EBAC BD70 SV Dehumidifier 240v 50Hz (Code 10169MG-GB)

Choose a EIPL Dehumidifier

The BD70 draws out a typical extraction of 12lts per day. Whether there’s a need for fast, reliable and energy-effi cient drying, EIP Ltd (Ebac Industrial Products Ltd) has the answer. In new building construction, in renovation or alteration of existing buildings, or in special circumstances such as fl ooding, there’s no quicker, surer or more economical way to reduce moisture without risk of damage to the building materials. Consider the alternatives. Natural drying will get the job done – eventually. But EIP Ltd Building Dryers cut natural drying times by two thirds. Drying can also be achieved by wasteful heating and venting – but at what cost?

The Inside

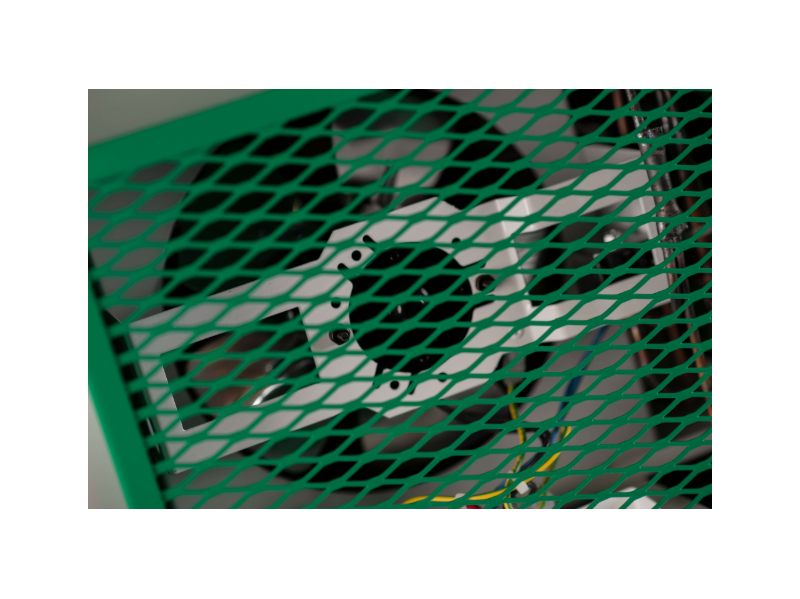

Air is drawn into the dehumidifier by means of a fan. The moisture is then condensed from the air and piped away or collected in a container. The dry air is heated with the energy recovered during the drying phase and returned to the room. This process lowers the relative humidity of the air, increasing it’s capacity to absorb more moisture from surrounding surfaces. EIP Ltd has supplied building dryers to plant hire shops for over thirty years: if you have a building dryer it is probably an EIP Ltd from Europe’s leading manufacturer.

Reliable Performance

No matter how extreme the conditions, EIP Ltd’s effi ciency copes comfortably. All units operate economically even on the coldest winter day – and where dampness is really severe, up to 20 litres of water can be extracted from the atmosphere in just 24 hours using the BD70. The EIP Ltd range of dryers are designed to cope with demanding site conditions, spending their time on hire. Earning you money year after year.

Operational Simplicity

Simplicity of operation is one of the major benefi ts of the EIP Ltd range. To dry out any building you need only to check that all doors and windows are closed, wheel the unit to a convenient location, connect to the supply and press the start button. Drainage of condensate from the machine is equally simple – either by connecting a hose to the drainage spout and leading it to a drain, or by placing a container under the spout.

Rugged Construction - Years Of Service

Over thirty seven years of development experience has brought the EIP Ltd range to its current peak of performance. Every machine is built for efficiency and built to last – the popularity of EIP Ltd Dryers with the plant hire trade speaks for their reliability, portability and outstanding durability thanks to the heavy duty welded steel construction.

A Versatile Product

Differing circumstances present different problems – but EIP Ltd Building Dryers have been designed to provide an effective solution whatever the situation. In newly built or partially completed buildings, EIP Ltd Dryers enable interior plaster, screeds and timberwork to be dried at a controlled rate. This means that decorators can work systematically, keeping to the required schedule, regardless of weather conditions.

Features

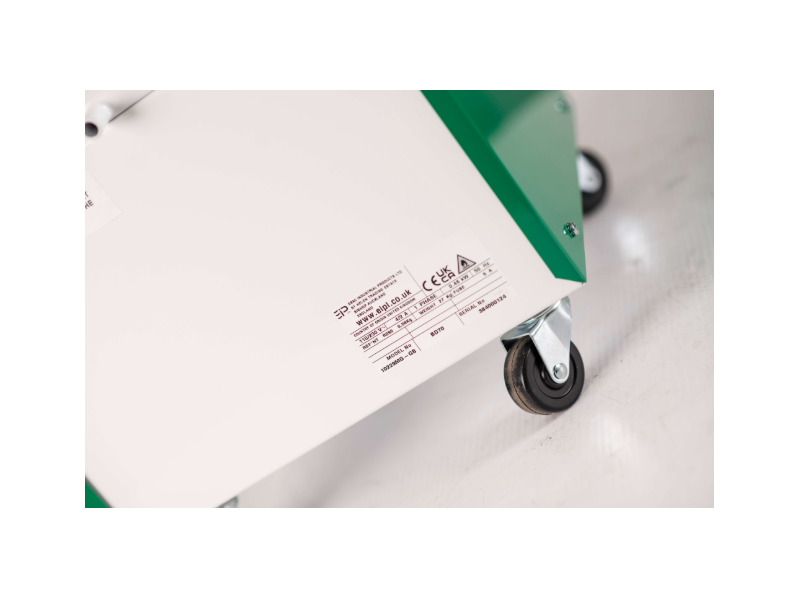

• 4 Castors
• Carrying Handle
• Metal Body
• Single Speed Fan
• Continues Drainage Facility
• 12 Months Guarantee

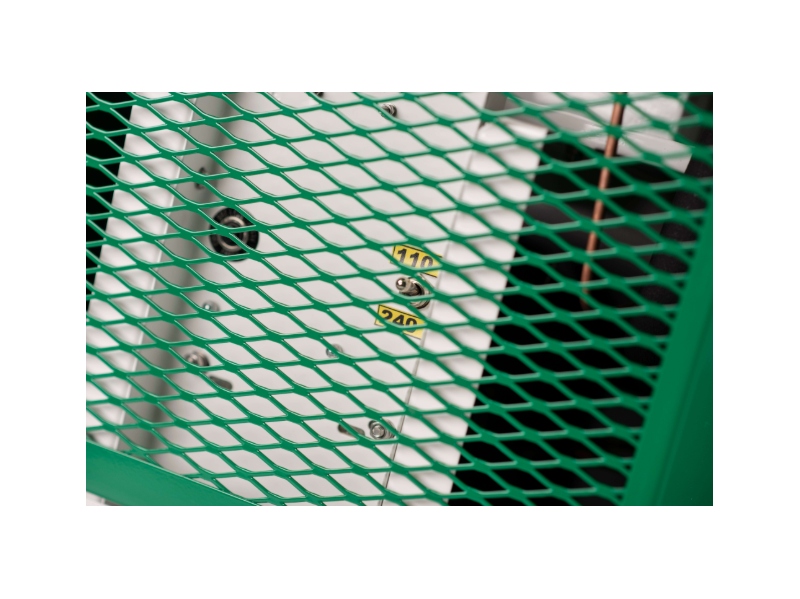

• 230 VInternal Voltage Selection Switch
• Hot Gas defrost For Low temperature Operation
• Power 350W Maximum
• Nominal Effective Volume 100m3

Height (mm) 508
Width (mm) 305
Depth (mm) 305
Weight(kgs) 27
Voltage 230
Phase 1
Frequency(Hz) 50
Power(kW) 0.46
Current(A) 2
Airflow(m3/hr) 170
Noise Level(dba) 47
Effective Volume(m3) 100
Typical Extraction(l/d) 12
Min Operating Temp (°C) 3
Max OperatingTemp (°C) 35
On/Off Control Via Humdistat N
Carrying Handle Y
Hot Gas Defrost Y
Electronic Defrost Timer Y
Voltage Selection Switch N
Castors Y
Refrigerant Type R134a
Free Standing Y
Gravity Drain Y
Cable Wrap N
Moulded Mains Plug Y
Stoved Epoxy Finish Y
All Steel Construction Y
