Eibenstock ESD 200 2500W Wet-Dry Percussion Diamond Drill Motor in 240v - 4624202

The EIBENSTOCK ESD 200 is a powerful percussion core drilling motor designed for dry drilling hard materials where traditionally only wet drilling was feasible. Paired with EIBENSTOCK IHT soft percussion drill bits, this diamond drilling unit is capable of dry drilling through reinforced concrete, while the operation switch allows for wet diamond coring resulting in the perfect problem solver for multiple environments.

What is Impact Hybrid Technology (IHT)?

High precision toothed ring geometry gearing that enables high frequency impact impulse output – a soft
impact feature for high-capacity drilling in hard materials.

EIBENSTOCK ESD and DSE diamond core drills and units are equipped with an innovative soft vibro-percussion function for dry coring in hard brick, abrasive damp blocks and reinforced concrete.

The ESD and DSE range of soft percussion drills and units are used where wet drilling is not feasible or the ease of dry drilling is preferred.

These versatile drills can be used without the percussion function for dry drilling in softer materials including brick and blockwork. When coupled with a dust extractor vacuum, drilling is dust-free.

The ESD and DSE drills and units should be used with specialist percussion core bits for optimal drilling performance.

Included:

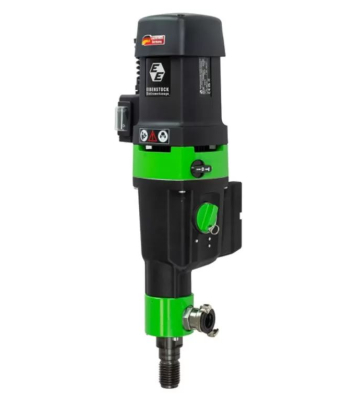

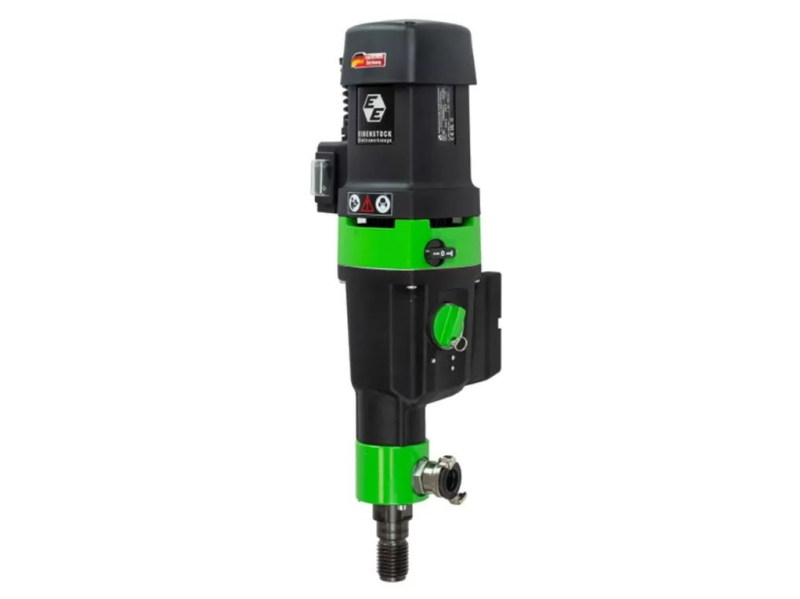

• 1x EIBENSTOCK ESD 200 Diamond Drill Motor
• 1x Dust Extraction Coupling

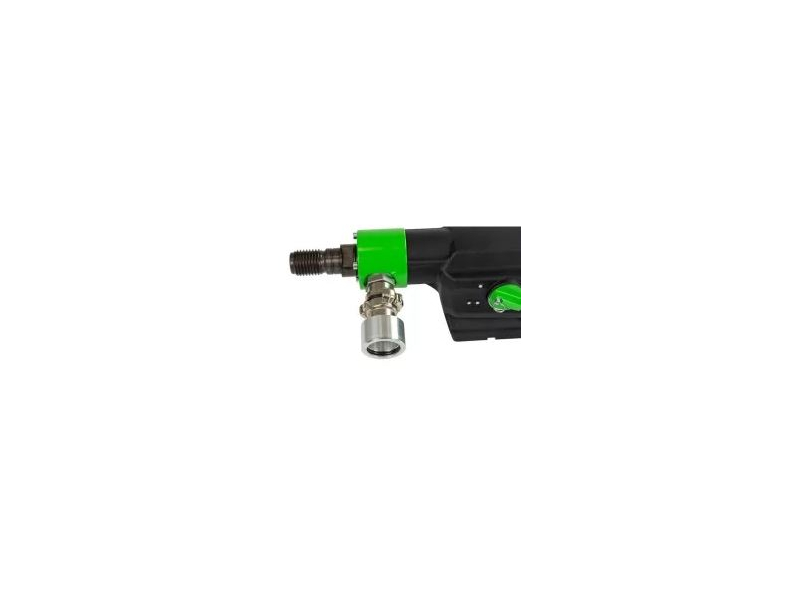

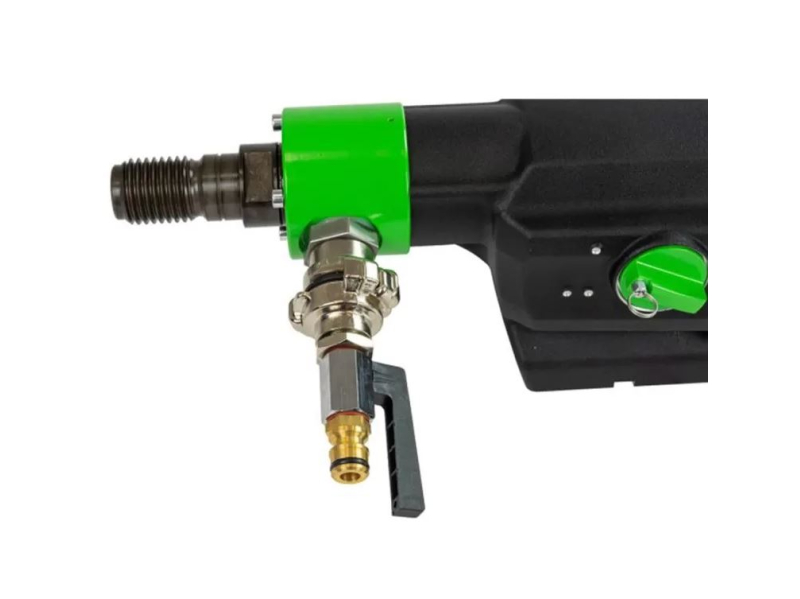

• 1x Water Feed Coupling

Features:

• Versatile wet and dry diamond core drilling
• Ultra robust and powerful 2500w motor with IHT-gears with soft percussion function
• Soft percussion dry drilling up to 250mm in brickwork
• Soft percussion dry drilling up to 202mm in concrete
• Mechanical safety clutch
• Electronic overload protection
• Multi-use dust extraction port and water feed coupling
• Perfect problem solver for drilling in areas where on-site conditions do not allow wet drilling

Specifications:

• Power rating
  2500w
  Rated speed
  500 / 1,050 rpm
  Spindle connection
  1 ¼ “ male
  Weight
  8.9 kg
  No-load speed
  750 / 1,500 rpm
  Stroke rate
  10,000 / 22,000 bpm
  Drilling diameter
  51-250 mm (opt. 202 mm)
