ENER-J RF Remote for Microwave Sensor SKU T343X - Code T344X

How to Use this Remote with our Microwave Sensor: • Permanent ON/OFF [button (1)] Press button (1) to select permanent ON or permanent OFF mode. Press button (2)/(4) to resume automatic operation.The mode will change to AUTO Mode after power failure.• Reset [button (2)] Press button (2), all setting go back...

How to Use this Remote with our Microwave Sensor:

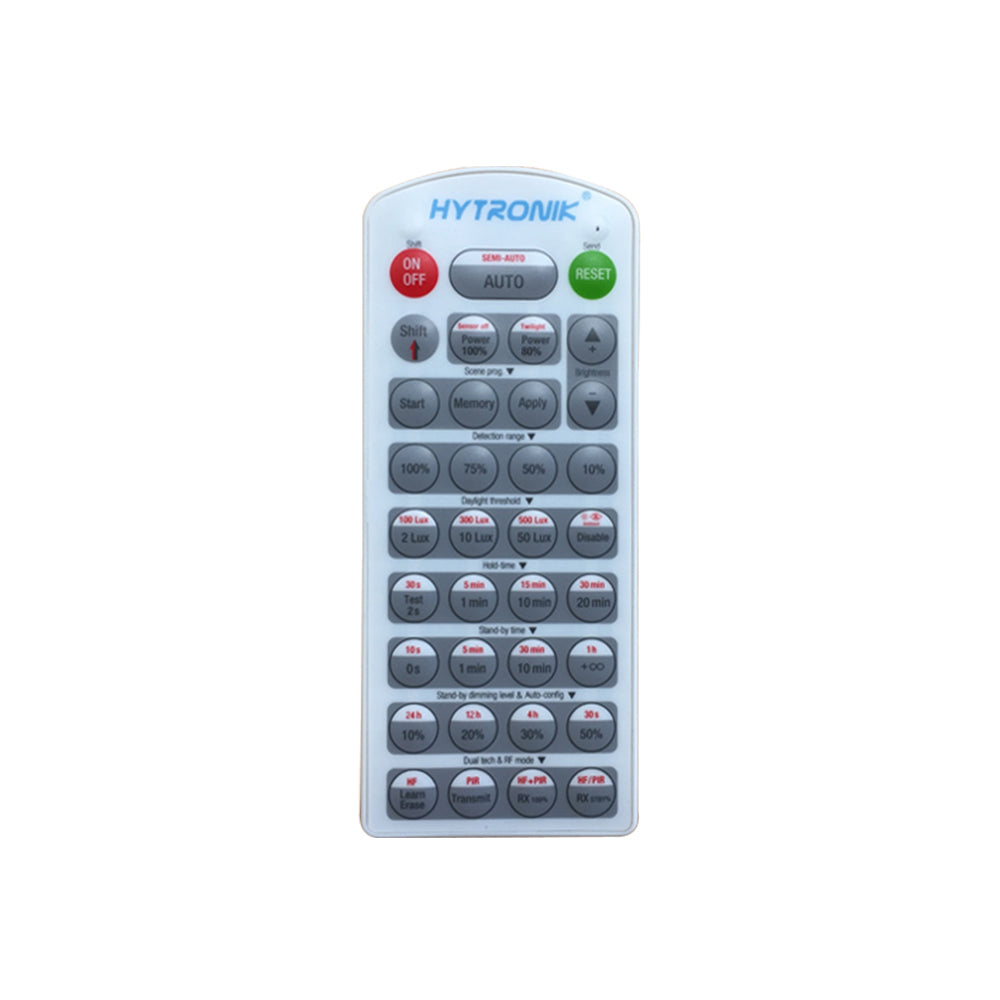

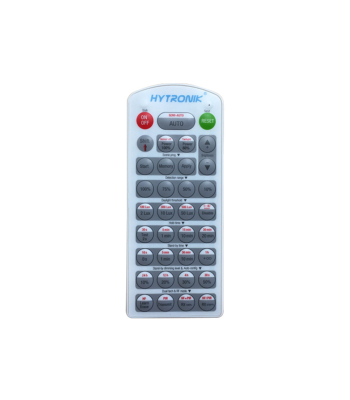

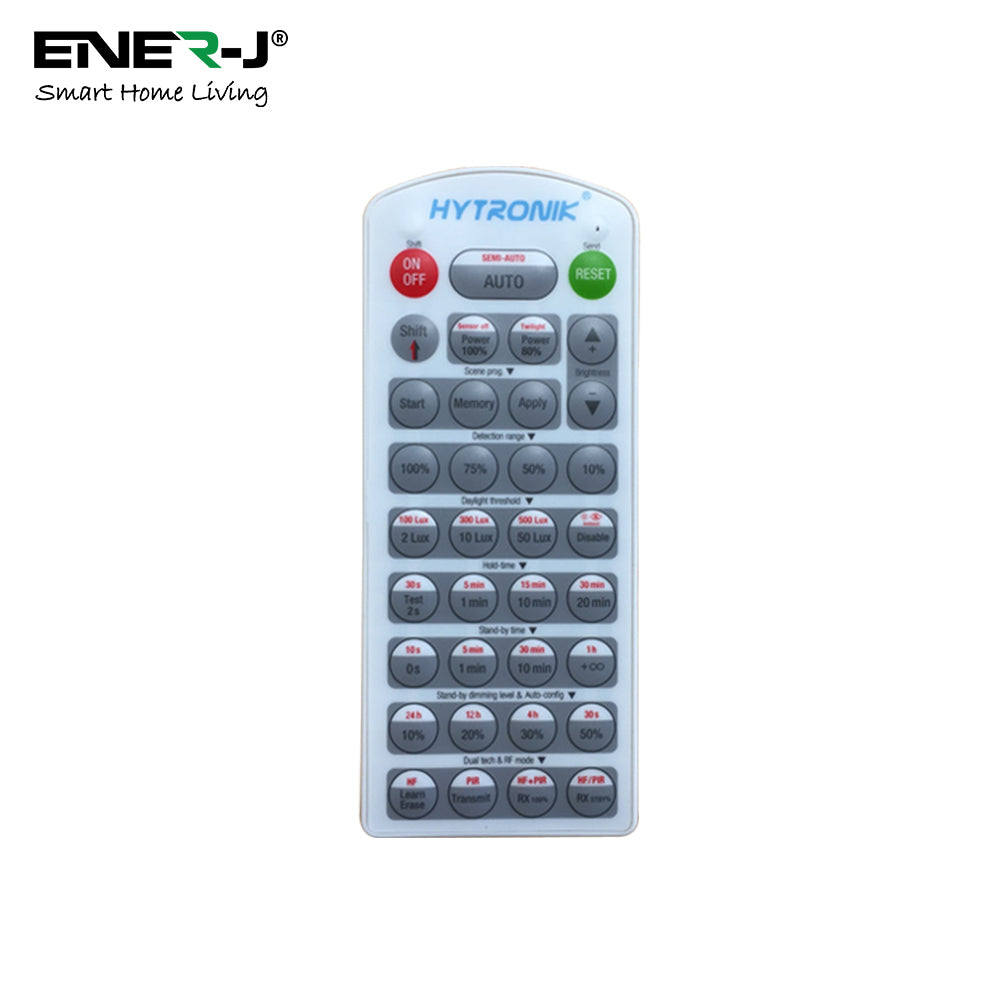

• Permanent ON/OFF [button (1)] Press button (1) to select permanent ON or permanent OFF mode. Press button (2)/(4) to resume automatic operation.The mode will change to AUTO Mode after power failure.• Reset [button (2)] Press button (2), all setting go back to the default settings:Detection range: 100% Hold time: 1min Stand-by period: 5 min. Stand-by dimming level: 20% Daylight sensor: LUX disable• Shift [button (3)] Press button(3), the LED on the top left corner will flash to indicate mode selection. All values / settings in RED are valid for 20 seconds.• Auto Mode [button (4)] Press button (4) to initiate automatic mode. The sensorstarts working and all settings remain as before the light was switched ON/OFF.• Semi-auto Mode [button (3) & (4)]1. Press button (3) Shift (the red LED is on for indication),2. Press button (4) to initiate semi-auto mode. The fixtureis manually on by push-switch and automatically off in semi-auto mode.• Power Output [button (5)]Press button (5), the light output shifts between 80% and 100%. NOTE: The function of "Sensor off" and "Twilight" are disabled.• Brightness +/- [button (6)]Press button (6) to adjust the light brightness between 10%~100%.
