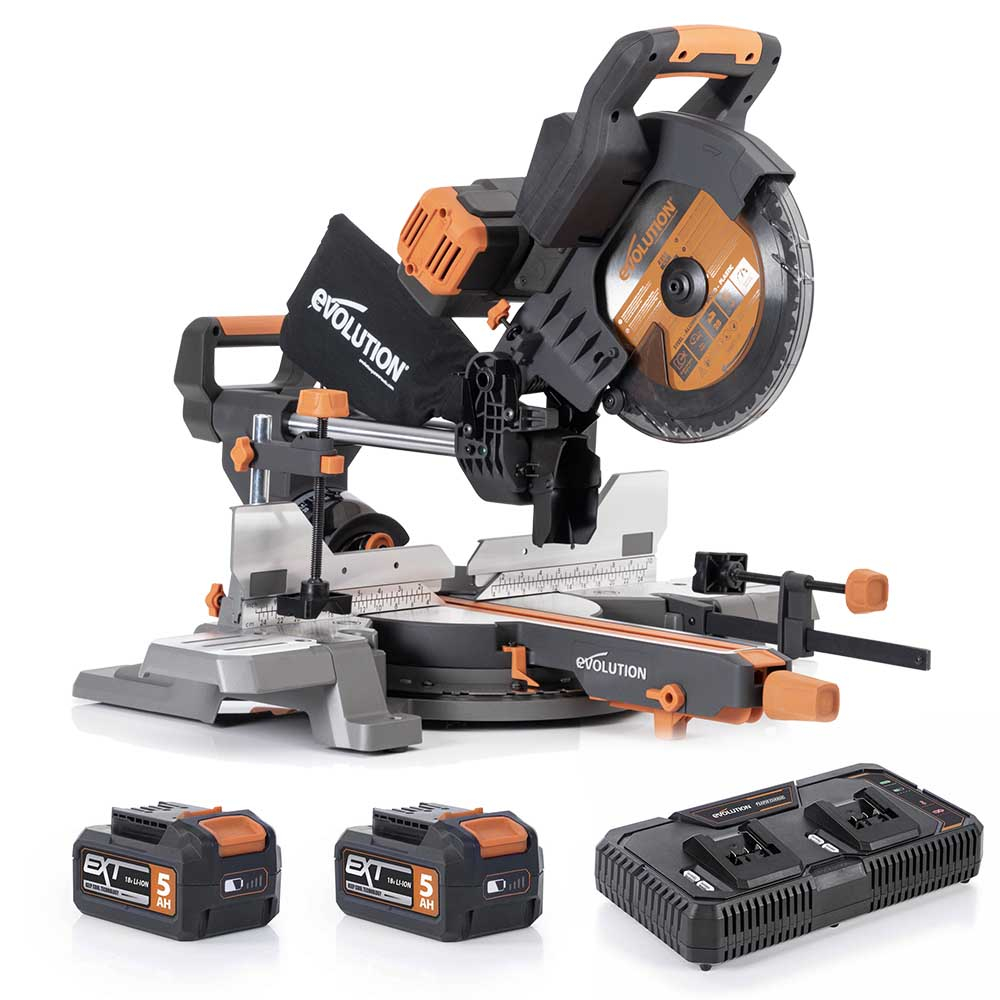

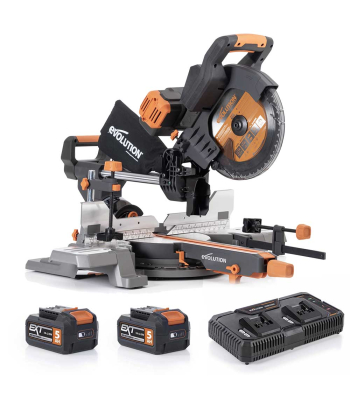

Evolution Cordless R255SMS-DB-Li 255mm 36V Double Bevel Mitre Saw

R255SMS-DB-Li Double Bevel, Double Battery, Cordless, 36 Volt Brushless Mitre Saw from Evolution with Multi-Material cutting technology.

Ready for jobsite and DIY use it delivers accurate double bevel cutting with +/- 48-degreebevel and +/-50-degree mitre capability. Reliable, smooth, square cuts every time in a variety of materials. Powerful hi-torque Brushless DC motor with optimized gearbox & blade system. Compact, lightweight & robust design, weighing only 16.6kg.Powered by two 18v EXT batteries the R255SMS-DB-Li Cordless Double Bevel Mitre Saw provides long run times from a single charge and has the power to get the job done. Add it to one of our Universal Mitre Saw Stands and you have a seriously capable jobsite Mitre Saw.

The R255SMS-DB-Li 36V CordlessDouble BevelMitre Saw is packed with features; Multi-material cutting technology, up to 97% dust collection with our R15VAC, its large 305mm x 90mm cross-cut capacity offersa touch more cuttingcapacitythan the cordedDouble Bevel model. Our innovative Shadow Line LED cutting guide perfectly projects the blade kerf onto the cutting surface for measure once cut once accuracy and the included Zero Clearance Insert offers enhanced accuracy for making the smallest cuts.The new Cordless Double Bevel Mitre Saw delivers clean and accurate cuts through new and reclaimed wood, as well as cool to the touch, burr-free cuts through mild steel and non-ferrous metals with the supplied Multi-Material blade. It's the ultimateportable 1st and 2nd fix saw.

Powered by a pair of Evolutions 18V EXT Li-Ion batteries to deliver36 Voltpower and performancethe R255SMS-DB-Li delivers long run times. The loaded version is bundled with two of our R18BAT-Li5 5Ah batteries and is capable of320 cuts through 4x2" CLS on a single charge, and as many as 510 cuts per charge when fitted with 2x 8Ah batteries. The R18RCH-Li2 Dual Port Rapid Charger which will takeboth batteries from zero to fully charged in only 60 minutes. All of Evolutions EXT Cordless Li-ion power tools are compatible with all EXT batteries, so you can share across multiple tools for maximum versatility.

Choose the new R255SMS-DB-LiCordless, Double Bevel, Double Battery Mitre Saw if you want a portable, powerful, accurate, reliable, fully-featured Mitre Saw that cancut any material anywhere.

Features

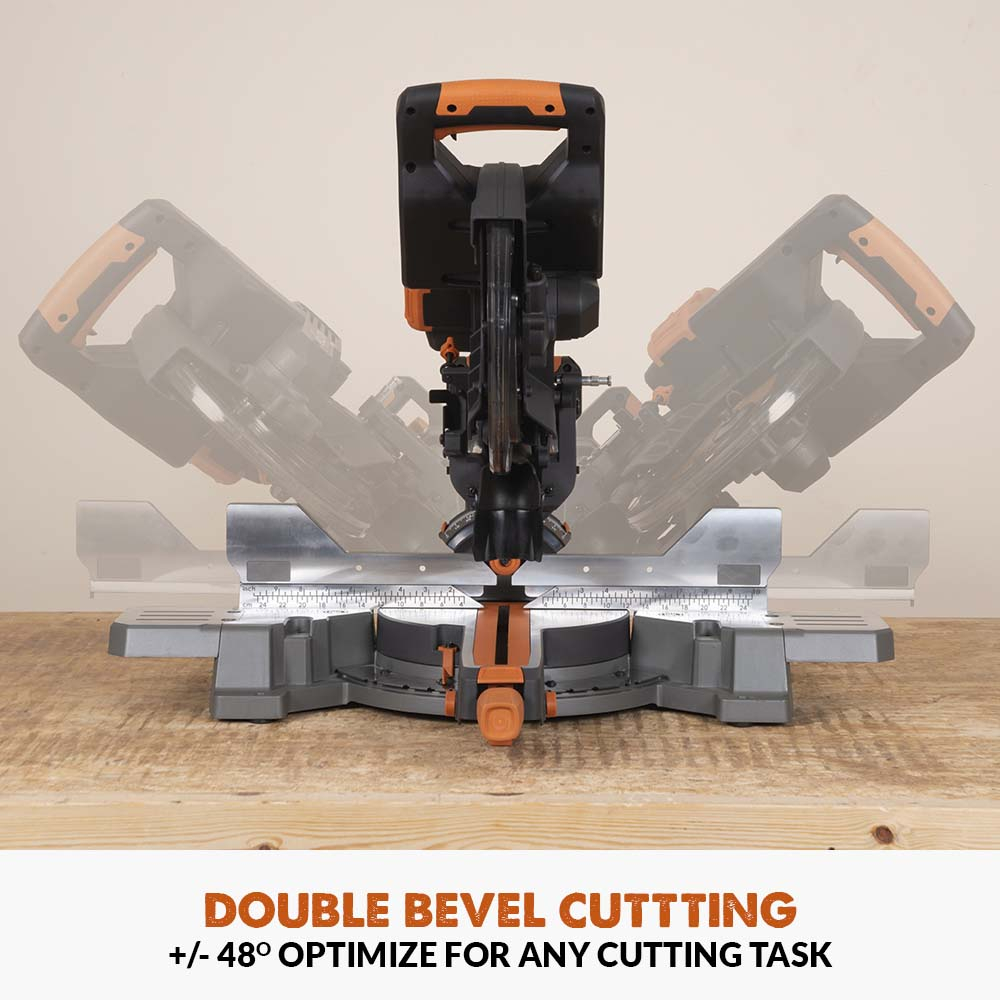

  • Double Bevel capable +/- 48 (L & R) bevel tilt and +/-50 mitre angles.
  • High Power 36v Brushless DC motor.
  • EVO36 Powertrain, 2x 18v Dual Battery Powered, optimisedfor maximum battery life and run time from each charge.
  • 60Minute fast charge time with 2x 5Ah battery.
  • Accurate, Bevel, Mitre & Compound cuts with detent stops at most popular angles.
  • Stainless Steel Mitre angle guide.
  • Mitre Saw Stand compatible
  • Shadow Line, kerf width blade cutting guide. Measure once, cut once.
  • Mitre Saw Stand compatible for go-anywhere support and stability.
  • Multi-Material: premium Japanese 28T Tungsten Carbide Tipped TCT blade, cuts wood, metal, plastic composites and more.
  • Virtually spark free metal cuts, with noheat, no burrs and an instantly workable finish
  • Zero Clearance InsertIncluded.
  • Depth Stop feature enables accurate trench cuts.
  • Back Stop feature for maximum depth cuts.
  • Dual size blade arbor 25.4mm and 5/8".
  • Cast alloy base & side extensions, trade tough build.
  • Ergonomic ambidextrous handles for easy control.
  • Improved front and top clamps with self-levelling design.
  • Soft Start & quick-stop Electronic Blade Brake For Safety.
  • Vacuum compatible up to 97% dust extraction, R11VAC-LI and R15VAC.
  • Dust Bag & Dust Port Adaptor included.
  • Single bolt blade change, quick and easy replacement.
  • Integrated Carry Handles.
  • Diamond masonry blade compatible.
  • Blade change tool included, quick and easy swaps.
  • 3-Year limited warranty**
  • EXT Li-ion cordless performance and versatility.
  • Erbauer EXT battery system compatible.

Machine Specifications
NameR255SMS-DB-LI
Product Code100-0001
Voltage / (Hz)36v
No Load Speed (min-1 rpm)3,000rpm
Net Weight16.6kg / 18kg
Dust port Adaptor Size35mm
Tool Dimensions451mm x 998mm x 771mm
Cutting Capacity
Mild steel Plate - Max Thickness6mm
Mild Steel Tube Max Wall Thickness3mm
Minimum SizeOffcut (zero clearance insert)20mm
0 Mitre x 0 Bevel305mm x 90mm
45 Mitre x 0 Bevel215mm x 90mm
0 Mitre x 45 Bevel (left)305mm x 52mm (300mm x 33mm right)
45 Mitre x 45 Bevel215mm x 33mm
Mitre Range50- 50
Bevel Range+/- 48 L&R
Blade Diameter255mm
Bore Diameter25.4mm
No of Teeth28T
Kerf2mm
Sound pressure level Lpa84.5 db (A); K=3db (A)
Sound power level Lwa97.5 db (A); K=3db (A)
Uncertainty3db (a)
Items Supplied
BareLoaded
Mitre Sawxx
Instruction Manualxx
Multi-Material 28T TCT Bladexx
Top & Front Clampsxx
Zero Clearance Insertxx
Machine Table Extension = 4x socket headed screwsxx
Double Ended Hex Key M6 x M4xx
Rotary Table & neckxx
Cutting Headx
x
Carriage Slidesxx
Multi-locking Knobxx
Dust Port Adaptorxx
Dust Bagxx
2x 5Ah Batteryx
Single Port Fast Charger
Dual Port Fast Chargerx
