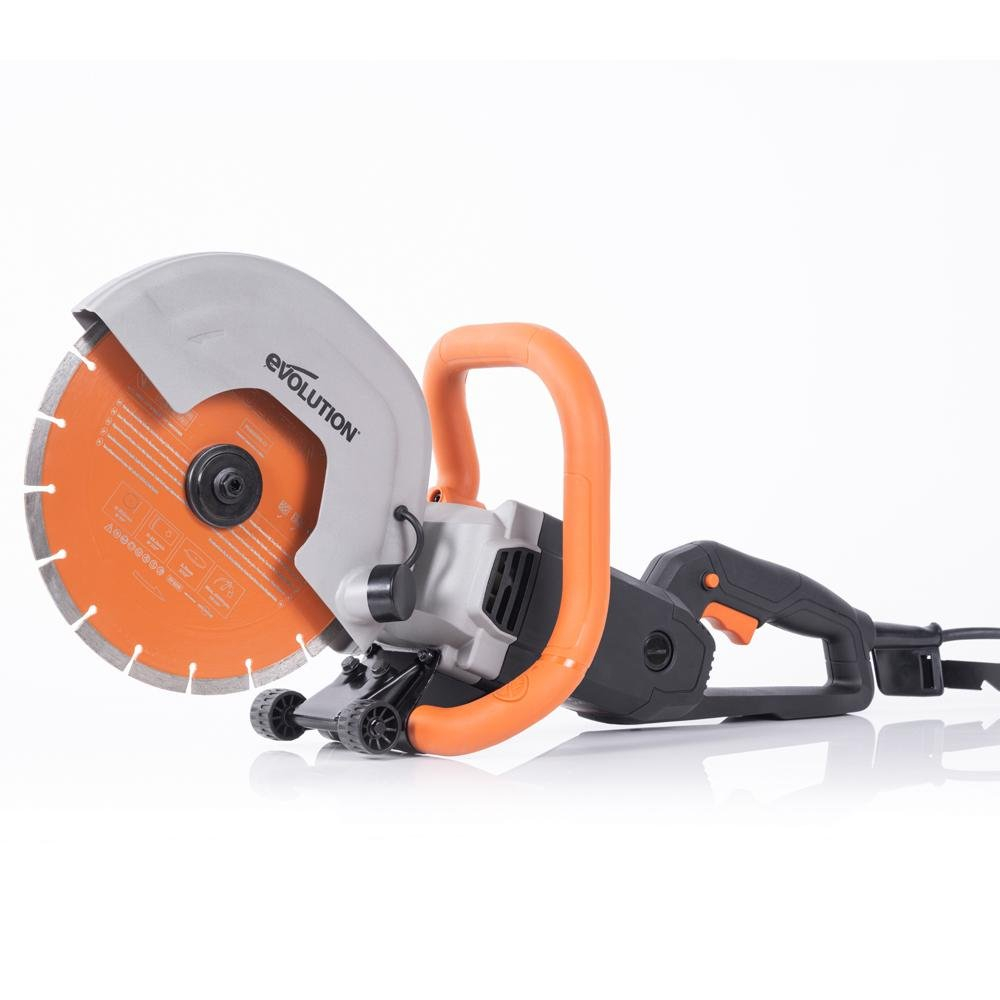

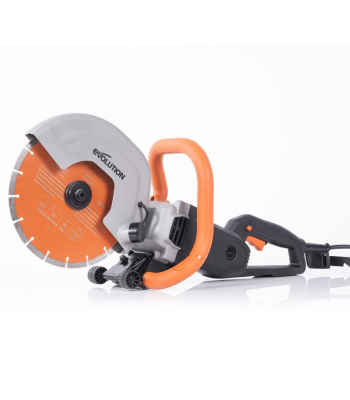

Evolution R255DCT 255mm 10" Electric Disc Cutter Concrete Saw with Premium Diamond Blade

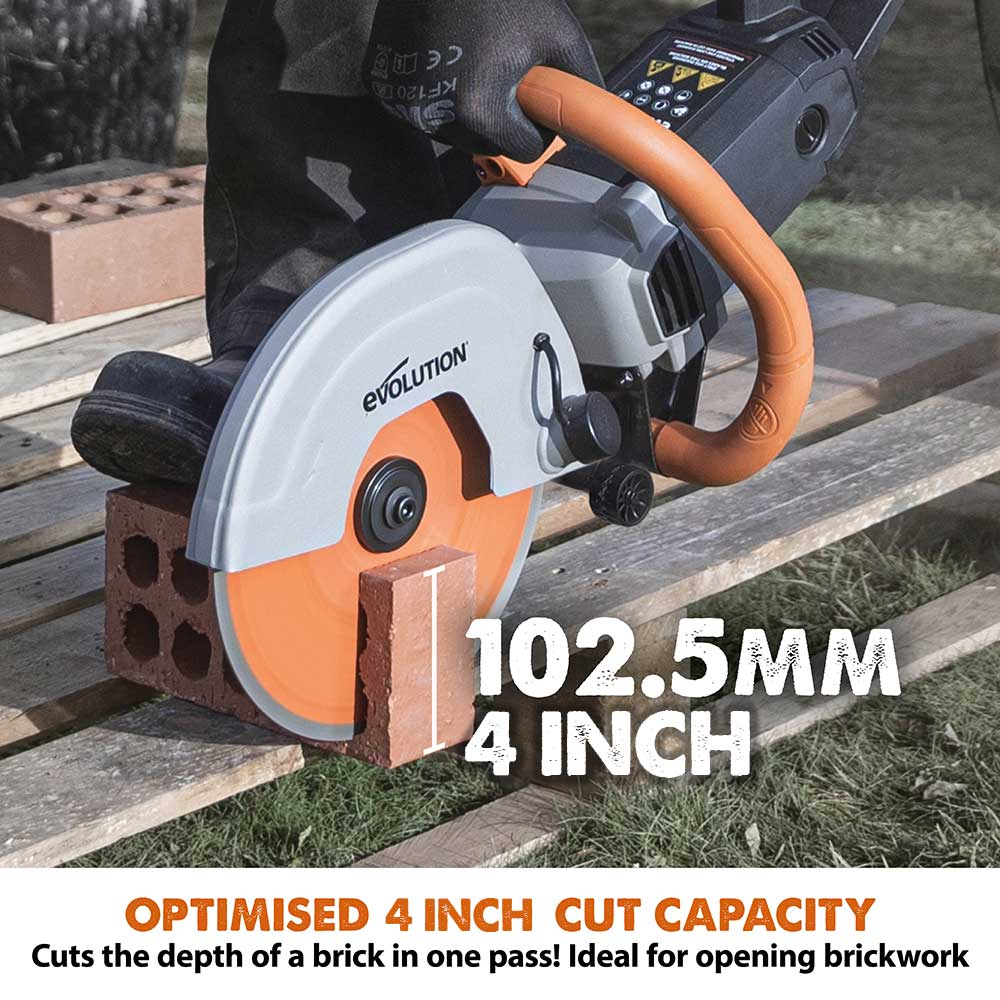

The Evolution R255DCT has up to 70% more cutting depth than a 230mm /9 grinder ,so it can cut through a standard house brick in one pass! The nominal 102.5mm cutting depth makes this the ideal cut off saw for opening windows and doors in brickwork plus makes light work of concrete, reinforced concrete, natural stone, roof tile & more.

The R255DCT comes equipped with Evolutions PremiumDiamond blade, packed with 33% diamond and featuring a multi-compound cutting edge designed to cut faster, cleaner & for longer than alternative designs. The compact R255DCT is easy to use thanks to its ergonomic design with wrap-around front handle & even weight distribution which gives you total control and good user posture. It comes packed with a powerful 2000w** motor for fast cutting and it utilises our Power Protect technology which protects internal components from dust and water ingress. The wheeled skid-plate takes the strain out of long, low-level cutting and also allows you to put the machine down while the blade is still spinning. All that plus blade brake & large blade guard for improved safety, integrated dust port for easy vacuum attachment, multi-tool with onboard storage for easy blade changes & more.

R255DCT User Manual

Features
  • Greater Cut Capacity. Cut standard UK house bricks in one pass with the supplied 255mm /10-inch premium diamond blade.

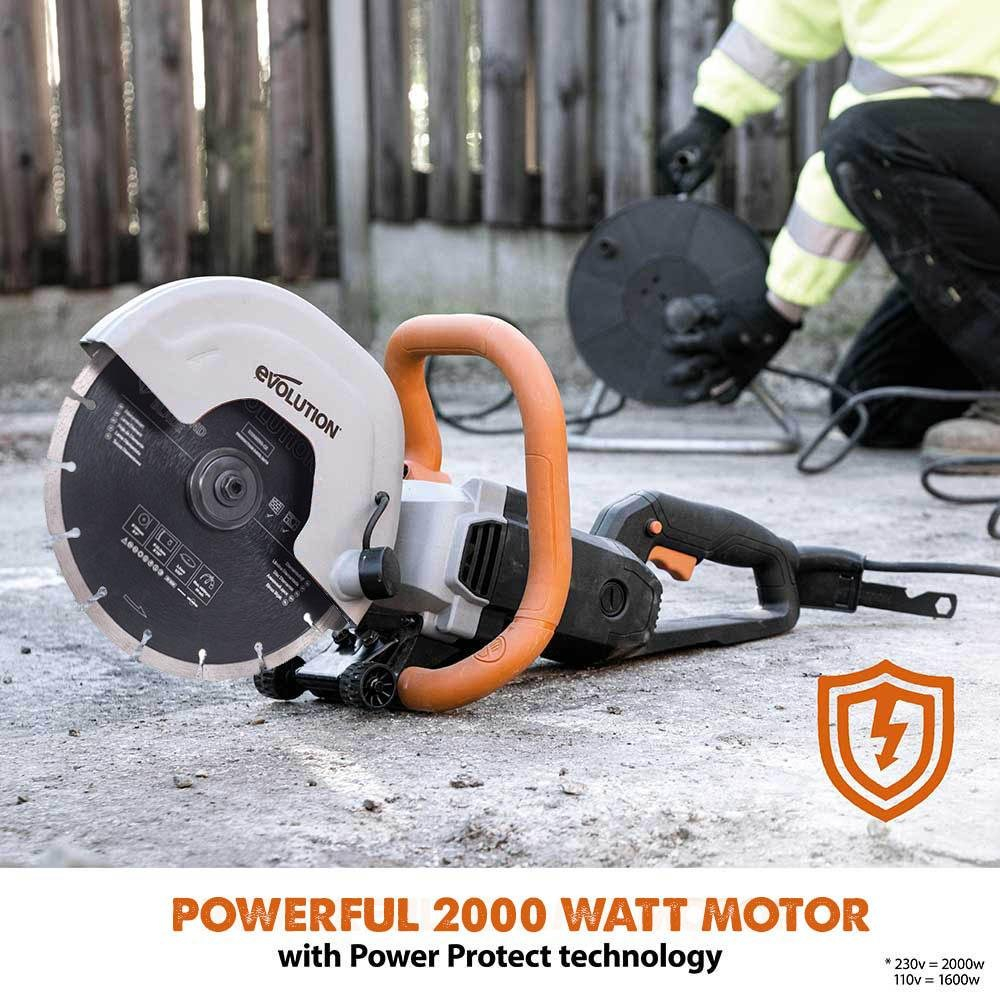

  • Powerful Motor. The powerful electric motor makes light work of all types of masonry including reinforced concrete! Central position gives a balanced centre of gravity.
  • Built-In WheelsGive accuracy when making long, straight cuts at ground level & reduces user fatigue.
  • Electric Blade Brake. Stops the blade in seconds.
  • Built-in Dust Port. With rubber cap for easy vacuum attachment and dust collection.
  • Lightweight Design. No heavy petrol engine or batteries weighing you down for a light and manoeuvrable design.
  • More Economical. No expensive petrol or batteries, no oil & no servicing.
  • No Harmful Fumes. Makes this tool safe to use in any environment.
  • Large Fixed Blade Guard. Protects the user from flying debris & optimises dust suppression & collection.
  • Full Wrap Around Handle. For easy horizontal and vertical cutting.

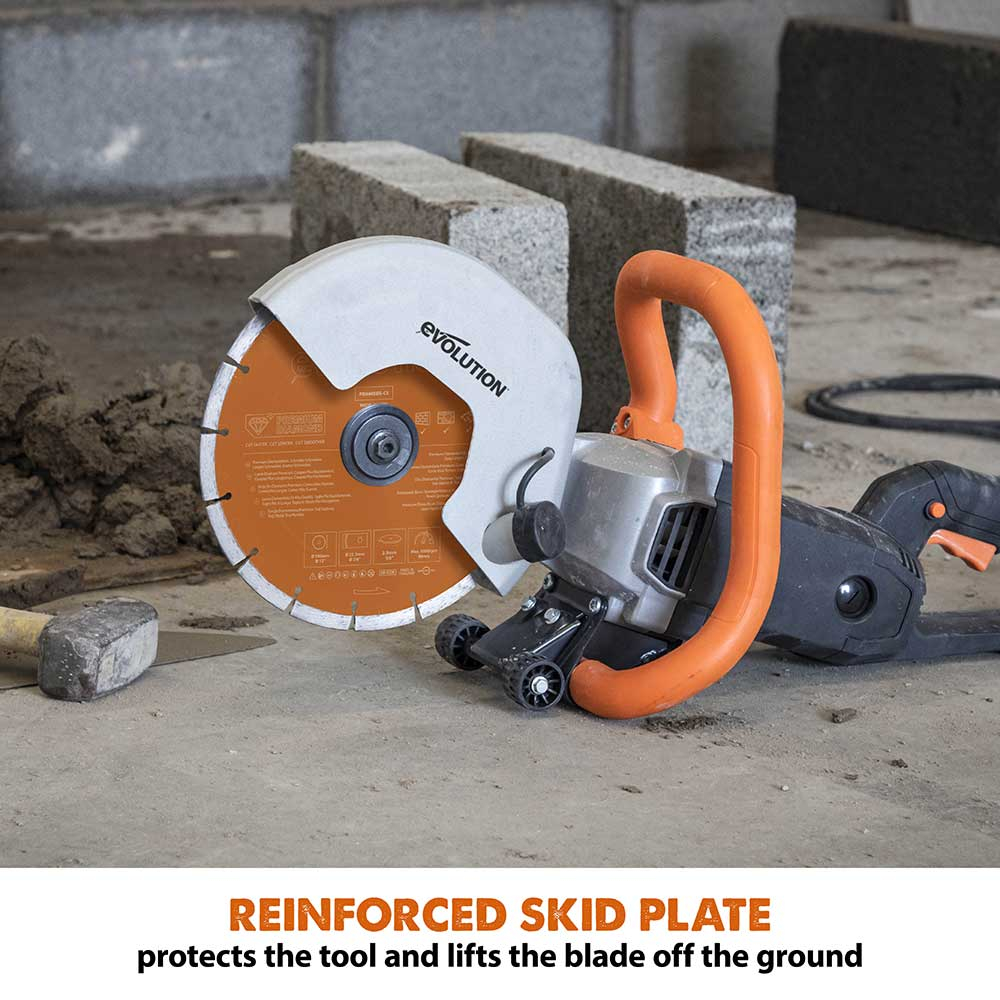

  • Reinforced Skid Plate. Allows you to thrown the machine down on any surface with confidence. The raised angle lifts the blade away from the floor so you can put the machine down straight after the cut.
  • Total Control. Ergonomic handles and optimised weight distribution gives the user total control when cutting giving an accurate cut and reduced user fatigue.
  • Safer To Use. Ergonomic user posture & more blade coverage drastically reduces the chance of an accident.
  • On-board Tool Storage. One multi-tool for all machine adjustments with dedicated onboard storage.
Specifications
Power 2,000 / 1,600 Watt (240v / 110v)
Rated Speed 6000 RPM
Max. Duty Cycle 20 Mins
Weight 7.3kg
Cable 4m /13 ft Rubber Cable
Nominal Cutting Capacity at 90 102.5mm
Blade Supplied PremiumDiamond Blade (PD255SEG-CS)
Blade Diameter 255mm /10 in.
Blade Bore / Arbor 22.2mm
Sound Pressure Max. LPA 98.0dB(A) K=3dB(A)
Sound Power Level Max. LWA 109.0dB(A) K=3dB(A)
Handle Vibration Max. Level 6.15m/s2 K=1.5m/s2
Items Supplied
Blade x1
Multi-Tool (Adjustments) x1
Wheeled Undercarriage x1
Rubber Cap (Extraction Port) x1
Instruction Manual x1.


Compatible With:

R255DCT General Purpose Diamond Blade(D255SEG-CS)
R255DCT Premium Diamond Blade (PD255SEG-CS)
R255DCT Multi-Material Metal Cutting Blade (MD255SEG-CS)
Evolution Soft Shell Carry Tool Bag (012-0250)


NB: Evolution Electric Disc Cutters are not intended to be used with 3rd party abrasive discs. These tools have not been certified for these blade types and their use could potentially result in accident or injury.
