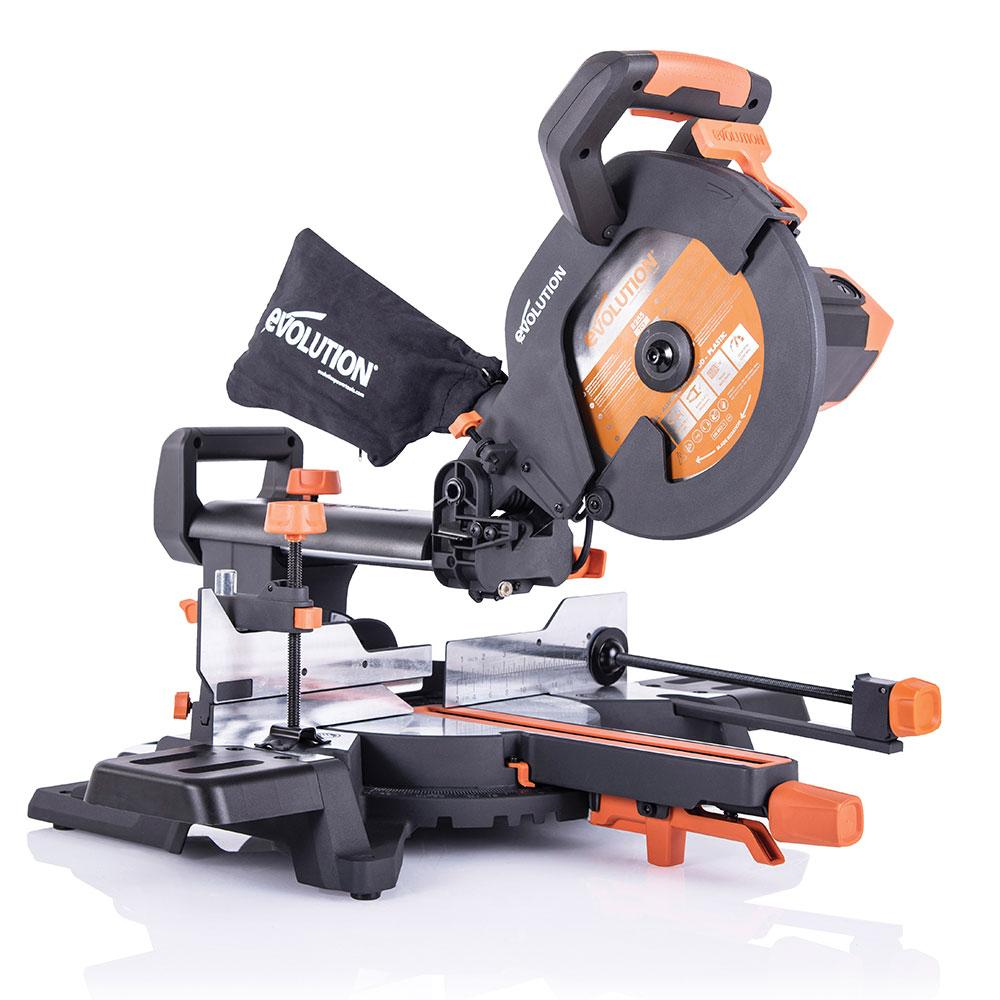

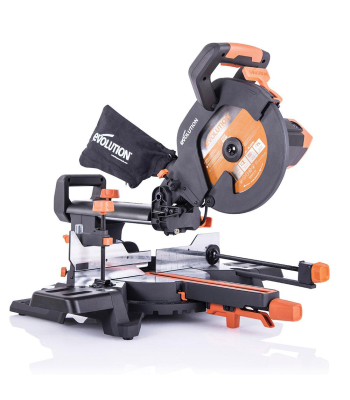

Evolution R255SMS+ 255mm Sliding Compound Mitre Saw With TCT Multi-Material Cutting Blade

This R255SMS+ Evolution Mitre Saw is built for accurate crosscut, bevel, mitre and trench cuts in wood, wood composite, plastics, and metal. Powered by a 2000W motor (240V), it comes with a 255mm tungsten carbide tipped (TCT) Multi-Material blade and has a 300mm x 80mm crosscut capacity and the ability to deliver cut accuracy within +/- 0.5, 0 - 45 bevel tilt and 50 - 50 mitre angles.

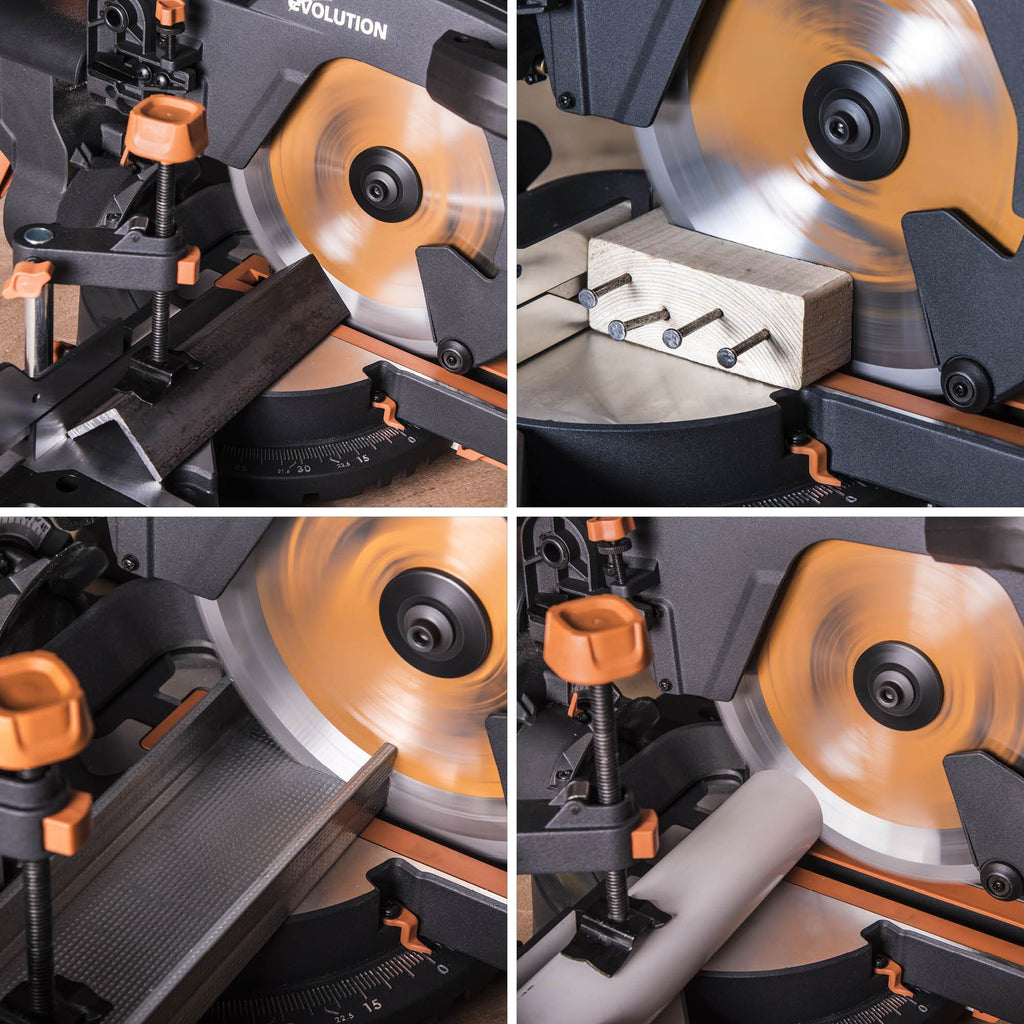

Trade rated and approved the R255SMS+ compound mitre saw is the ultimate tool on the job site. Accuracy, power and reliability are at the forefront of its design, this 255mm compound sliding mitre saw is equipped to power through 6mm thick mild steel, and cut hardwood, laminate and even nail-embedded wood with precision. Pair it with the Evolution Mitre Saw Stand and you have a cutting station ready to tackle the biggest jobs on site or at home.

The R255SMS+compound mitre saw is a true workhorse with a max cross cut of 300mm x 80mm. It's ready to cut almost anything with our Multi-Material blade, and the R255SMS+ can be used with any of our 255mm wood blades if you want a finer finish or faster cuts for those perfect crown mouldings and laser precise joints.

Features

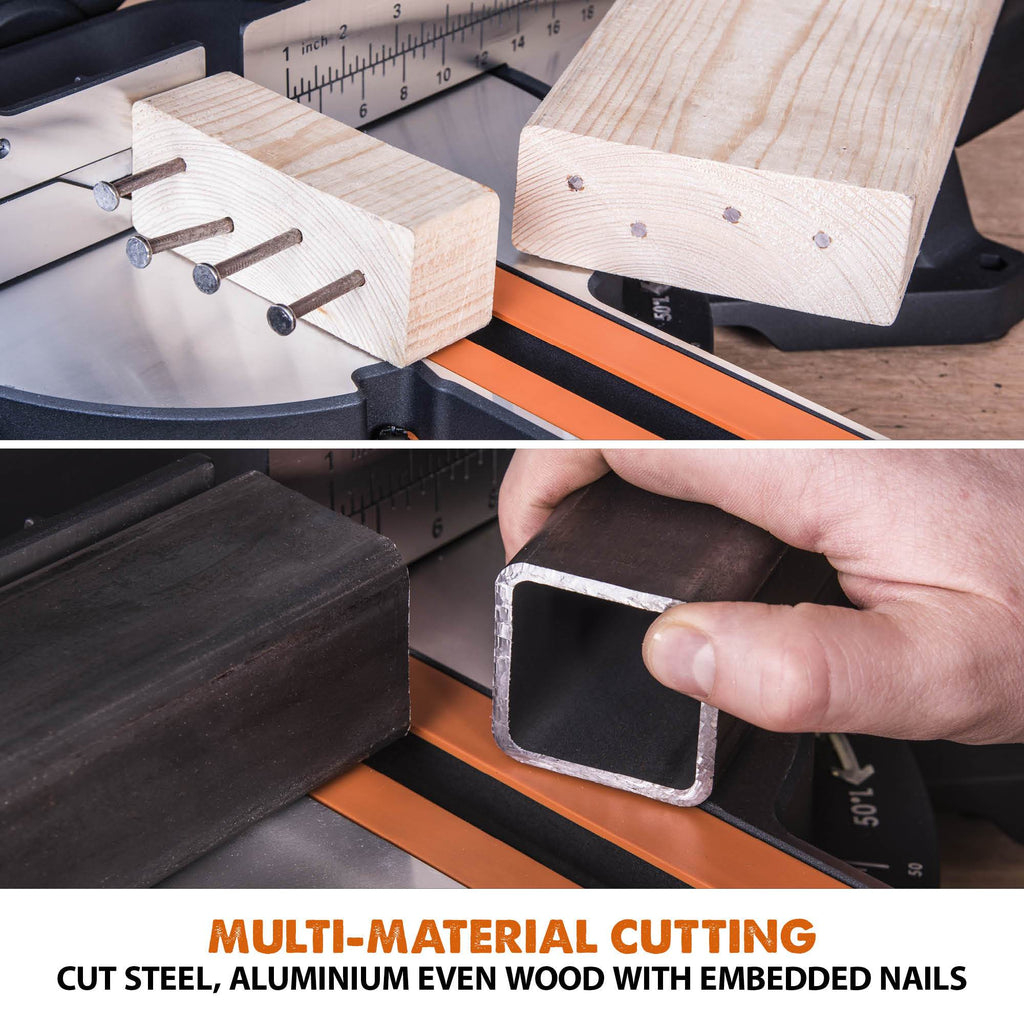

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
Smooth, square, reliablebevel and mitre cuts every time in a variety of materials.
Powerful 2000W (240v) / 1600W (110v) hi-torque, optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
Clean & consistent smooth cutting to within +/- 0.5 with 0 - 45 bevel tilt and 50 - 50 mitre angles with quick click mitre stops at 0, 15, 22.5, 30, and 45 both left & right.

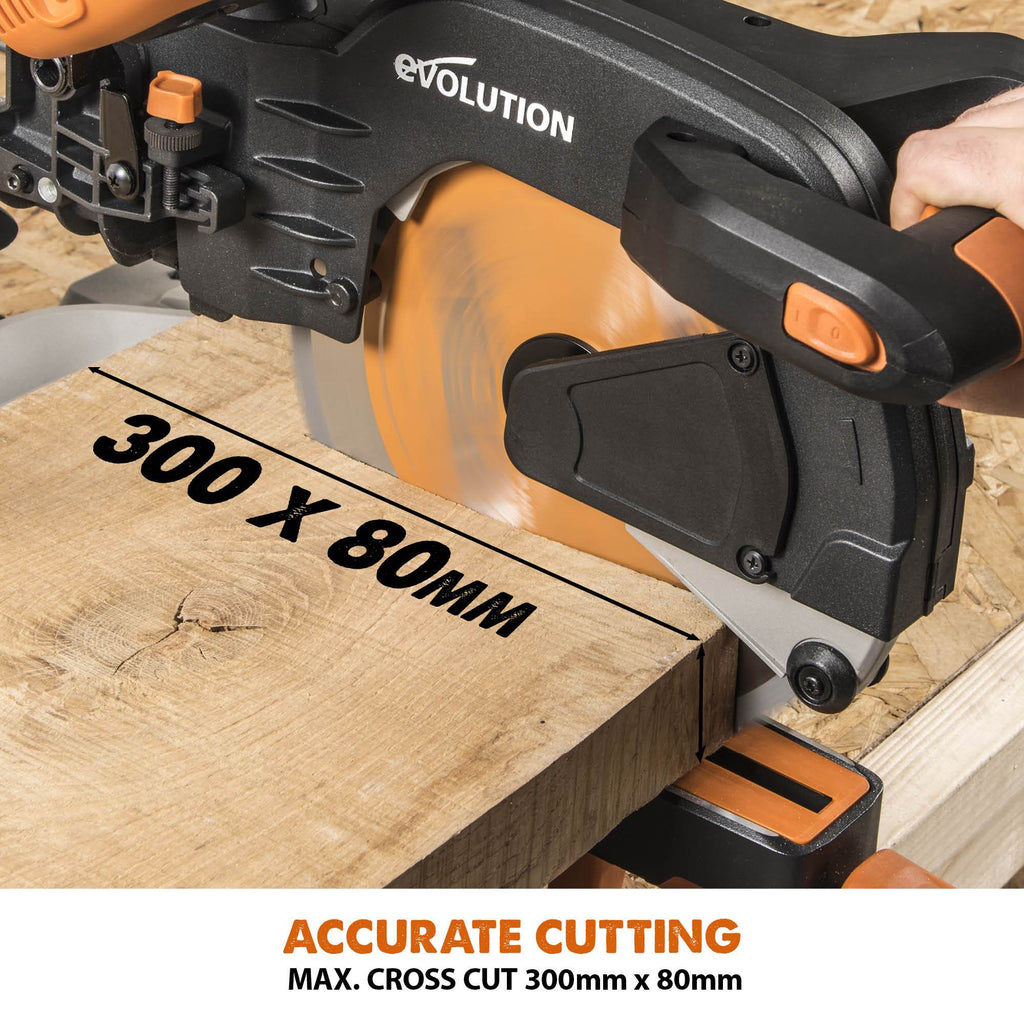

Slice through skirting boards, cornices, boards, decking and more up to 300mm x 80mm.
Ambidextrous, ergonomic, horizontal trigger with comfortable grip combats repetitive strain.
Compatible with Evolution's Mitre Saw Stand allows you full control to cut accurate repeated lengths on wide and long materials with ease.
The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
3 Year limited warranty.

PLUS+ Features

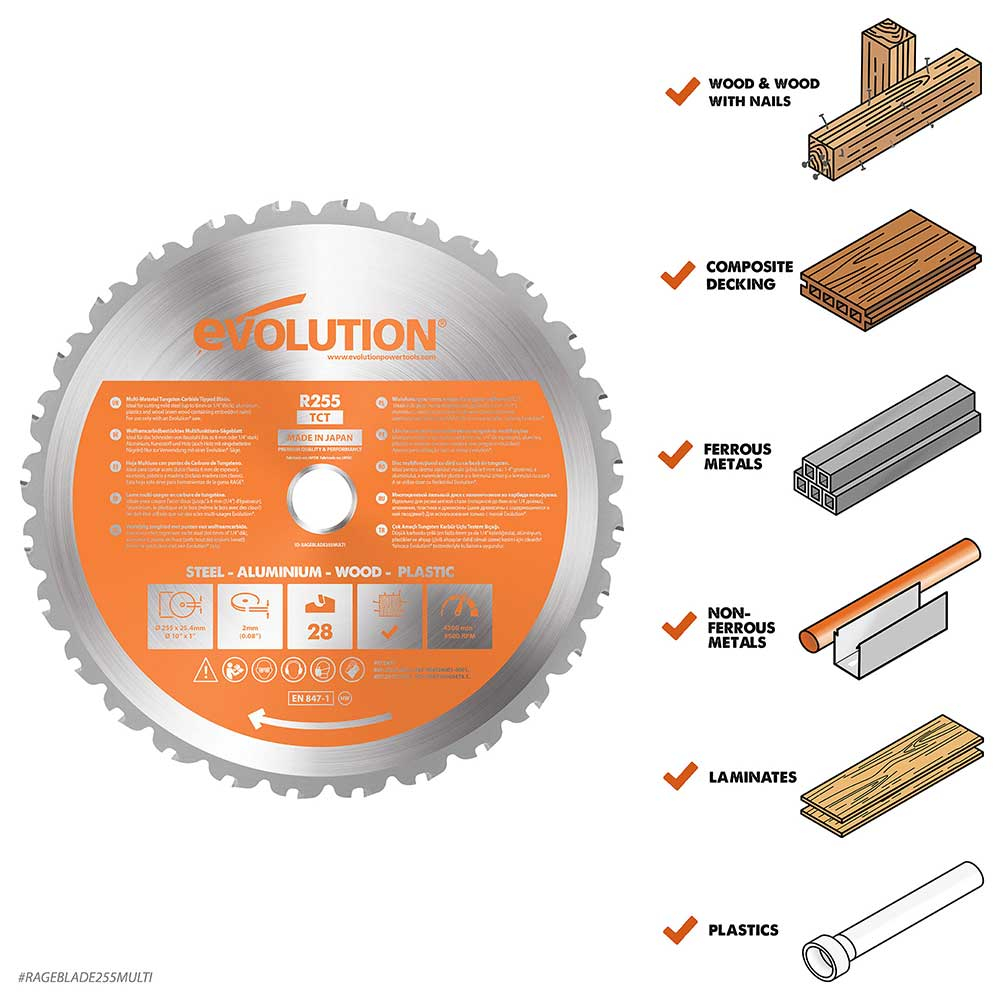

Premium Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.
Dual Quick-Release clamps included for additional accuracy & faster adjustments.
Slide rail protector included protects against damage & prevents dust ingress.
Cleaner & safer working environment with dust collection bag & dust port adaptor for use with vacuum extraction.
Integrated carry handles - easy to carry & transport around the workplace.
3m power cable reduces the need for extension leads.

Specifications

Motor (110V 50Hz):	1600W
Motor (240V 50Hz):	2000W
Speed No Load:	2500 min-1
Max. Mitre:	50 - 50
Max. Bevel (Left):	45
Blade Guard:	Cast Aluminium
Cable Length:	3m
Blade Dia.:	255mm
No. of Teeth:	28
Bore:	25.4mm
Kerf:	2mm
Max. Cross Cut (0 x 0):	300mm x 80mm
Max. Bevel Cut (0 x 45):	300mm x 45mm
Max. Mitre Cut (45 x 0):	210mm x 80mm
Max. Compound Cut (45 x 45):	210mm x 45mm
Mild Steel Plate (Max. Thickness):	6mm
Mild Steel Box Section (Max. Wall Thickness):	3mm
Product Dimensions:	360mm x 705mm x 730mm (with saw head down)
Packaging Dimensions:	365mm x 565mm x 520mm
Product Weight:	15.3 kg
Packaged Weight:	18.5 kg
Sound Pressure Level LPA:	110V: 95.8 dB(A) / 220-240V: 95.8dB(A)
Sound Power Level LWA:	110V: 108.8 dB(A) / 220-240V: 108.8dB(A)
Uncertainty K:	KpA& KWA: K=3 dB(A)
Laser Class:	Class 2
Laser Source:	Laser Diode
Laser Output Power (Max):	<1mW
Wave Length (Nm):	650

Items Supplied

Machine Table Extensions

Double Ended Hex Key (M6 & M5)

Rotary Table And Neck

Cutting Head

Carriage Slides

Mitre Locking Knob

Mains Cable Guide/Clamp

Self Tapping Cap Screw

Socket Headed Screws

Cable Clamp Component

Laser Lens Cap

Double Ended Cable Clip

Carry Handle

Tall Fence

Dust Port Adaptor

Dust Collection Bag

Slide Rail Protector

3pc Hold Down Clamp

Front Clamp

255mm 28 Tooth Blade

Compatible With

255mm Multi-Material Cutting TCT Blade
255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand

Brand: Evolution Power Tools

Identifier: 052-000
