Evolution R255SMS-DB+ 255mm Double Bevel Sliding Compound Mitre Saw with 40T Wood Blade and 28T Multi-Material TCT Blade

The largest and most powerful Mitre Saw in the Evolution line-up the R255SMS-DB+ has a huge 300 x 90 crosscut capability which means it can slice through floor joistsin one pass. Hugely powerful, incredibly accurate, it offers best in class performance at an unmatched price. With 2,000 watts of power and a multi-material blade that slices through wood, plastic, metal, and even reclaimed wood with embedded nails it offers best in class power and versatility.

Packed with features this double bevel mitre saw cuts 45 bevels in both directions. An integrated laser cutting guide and positive bevel stops provide accuracy for every cut. A durable die-cast aluminium base is tough enough to handle any material. With great ergonomics, single-handed cutting action and easy access storage tools and workpiece clamps the R255SMS-DB+ is the ultimate trade and workshop mitre saw, you can pay more but you can't buy better.

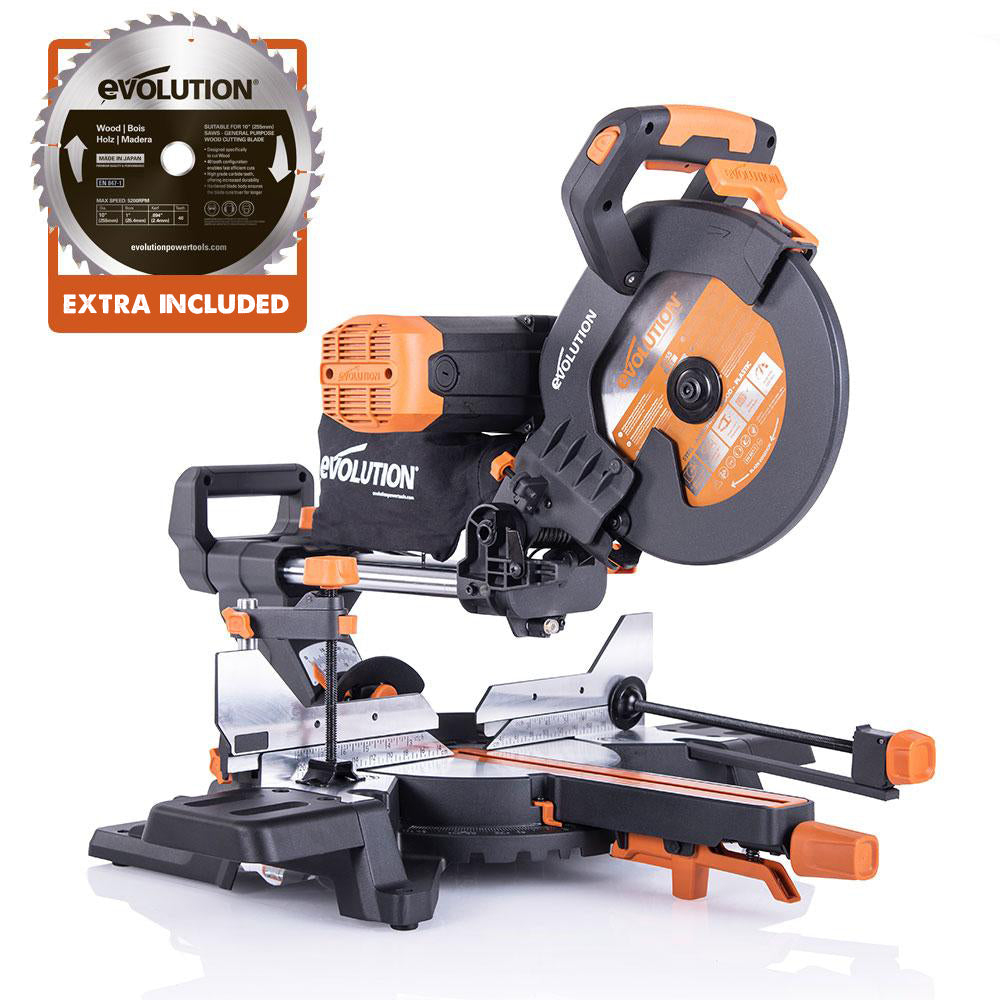

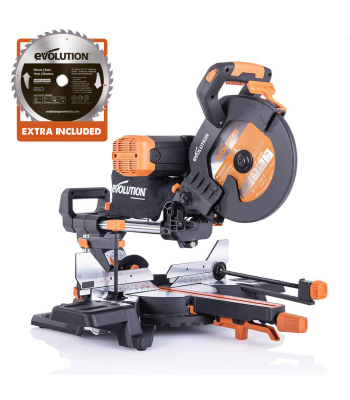

This GPW version is supplied with two blades as standard, our 255mm Multi-material blade and an extra 255mm General Wood Blade which is ideal for when you want perfect cuts in wood.

Features

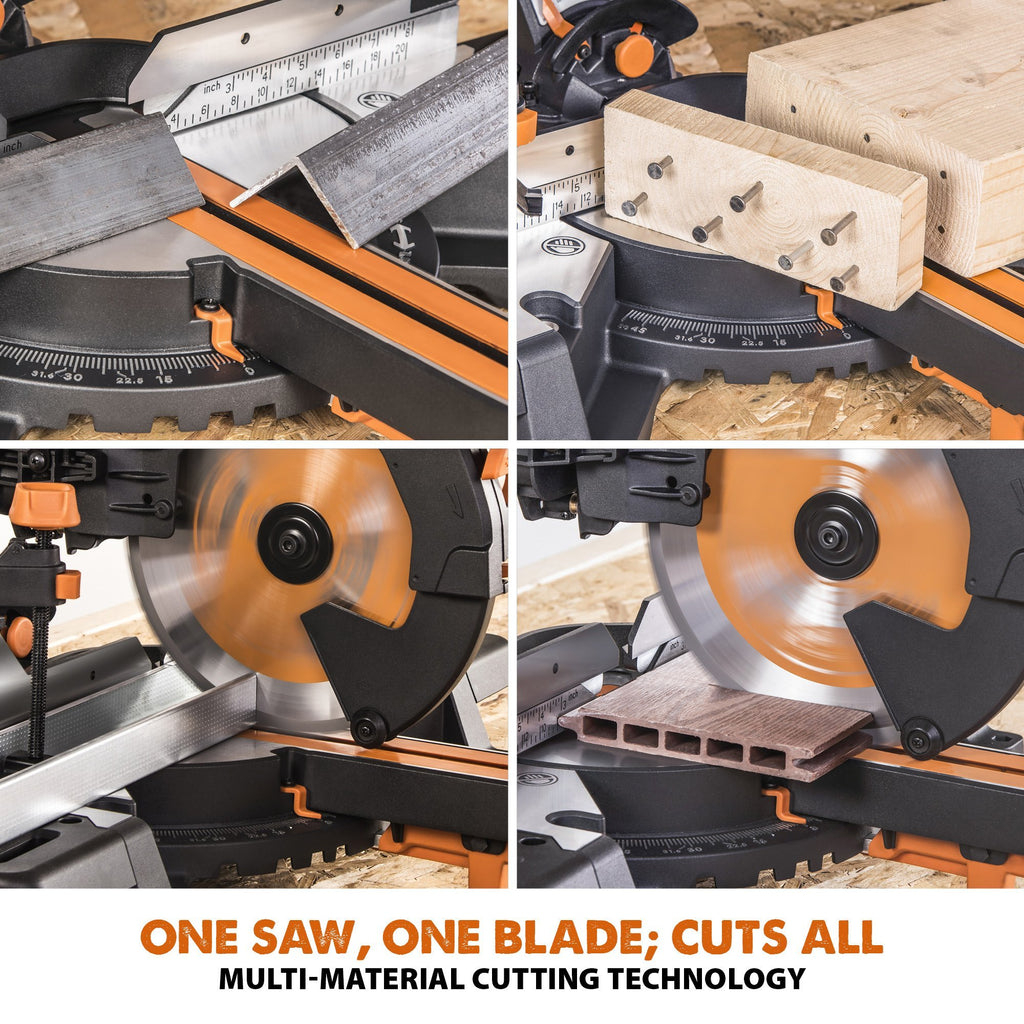

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate cutting with 300mm sliding functionality, adjustable depth of cut and laser precision guidance.
Smooth, square, reliable cutting every time in a variety of materials. Cut mild steel with no heat, no burrs & virtually no sparks.
Powerful 2000W (230v option), 1600W(110v option), hi-torque optimised gearbox and blade system increases motor and blade life to cut through a variety of materials with ease.
Perform accurate Crosscuts, Mitre cuts, Bevel cuts and Compound cuts with adjustable precision settings.
Cut to within +/- 0.5 with 45 - 45 bevel tilt and 50 - 50 mitre angles with quick click mitre stops at 0, 15, 22.5, 30, and 45 both left & right.

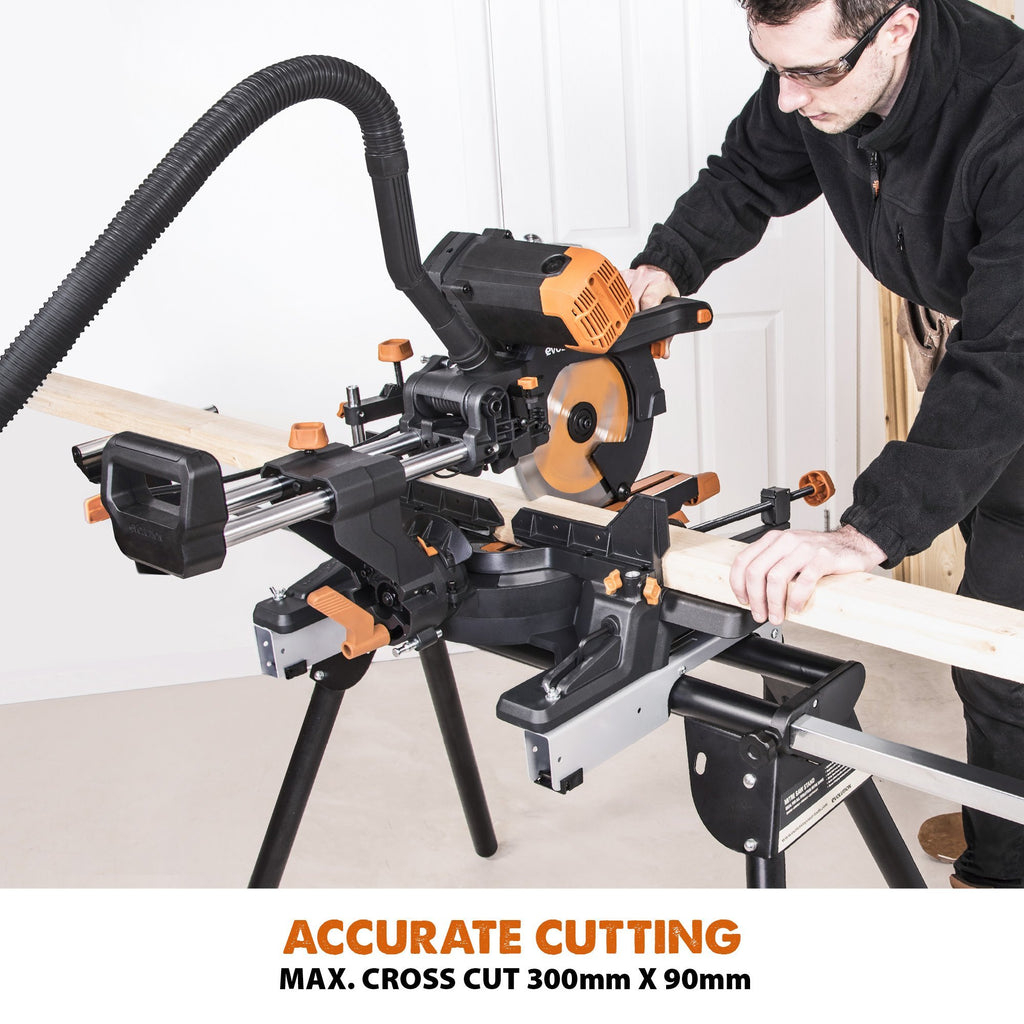

An impressive 300mm x 90mm max. crosscut capacity enables you to cutthrough most framing beams.
Ambidextrous, ergonomic, horizontal trigger with comfortable grip = combats repetitive strain.
Compatible with Evolution's Mitre Saw Stand, giving you full control to cut accurate repeated lengths on wide and long materials with ease.
The Evolution 255mm Diamond blade can also be fitted for cutting ceramic tiles and ornamental stone, (sold separately).
3-year limited warranty.

PLUS+ (GWB) Features

Premium Japanese 28T Tungsten-Carbide-Tipped (TCT) 255mm blade included for long-life, multi-material cutting.
Premium Japanese 40T Tungsten Carbide-Tipped (TCT) 255mm General Wood Blade for crosscut and ripping duty.
Quick-Release top clamp included for additional safety and faster adjustments.
Tall neck and fences for increase cut capacity and versatility when cutting materials stood upright such as skirting and cornices.
Laser-guided precision projects the cutting line on your workpiece for assisted straight-line cutting.
Cleaner and safer working environment with a dust collection bag and dust port adaptor for use with vacuum extraction.
Integrated carry handles - easy to carry and transport around the workplace.
4m rubber power cable gives you the power and reach you need to get the job done.

Specifications

Motor (240V 50Hz):	2000W
Motor (110V 50Hz):	1600W
Speed No Load:	2600 min-1
Max. Bevel (Left):	45 - 45
Max. Mitre:	50 - 50
Cable Length:	4m
Blade Dia.:	255mm
No. of Teeth:	28
Bore:	25.4mm / 1 in.
Kerf:	2mm

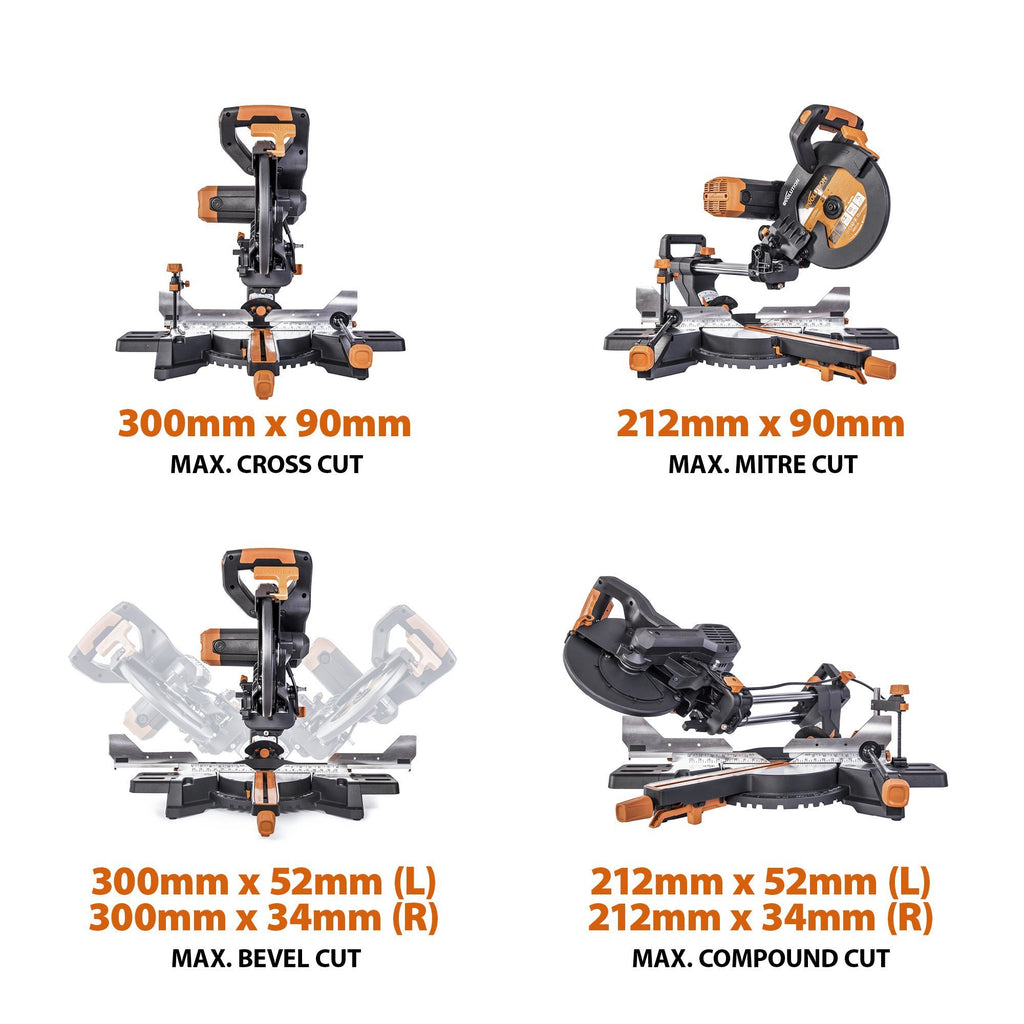

Max. Cross Cut (0 x 0):	300mm x 90mm
Max. Bevel Cut Left (0 x 45):	300mm x 52mm
Max. Bevel Cut Right (0 x 45):	300mm x 34mm
Max. Mitre Cut (45 x 0):	212mm x 90mm
Max. Compound Cut Left (45 x 45):	212mm x 52mm
Max. Compound Cut Right (45 x 45):	212mm x 34mm
Mild Steel Plate (Max. Thickness):	1/4 in.
Mild Steel Box Section (Max. Wall Thickness):	1/8 in.
Product Dimensions:	570 x 545 x 385mm
Packaging Dimensions:	575 x 545 x 385mm
Product Weight:	18.24 kg
Packaged Weight:	20.5 kg
Sound Pressure Level LPA:	95,8 dB(A) K=3 dB(A)
Sound Power Level LWA:	108,8 dB(A) K=3 dB(A)

Items Supplied

255mm (10 In.) 28 Tooth Multi-Material Cutting Blade

Machine Table Extensions x2

6mm & 4mm Dual-Ended Hex Key

Rotary Table And Neck

Cutting Head

Carriage Slides

Mitre Locking Knob

Mains Cable

Guide/Clamp

Self Tapping Cap Screw x1

M6 x 16mm Socket Headed

Screws x4 M5 x 12mm

Socket Headed Screws x2

Laser Lens Cap

Cable Clip

Slide Locking Knob

Dust Port Adaptor

Dust Collection Bag

Quick Release Hold Down Clamp

Instruction Manual

Compatible With

255mm Multi-Material Cutting TCT Blade
255mm Diamond Masonry Cutting Blade
255mm Wood Cutting Blade
Mitre Saw Stand
