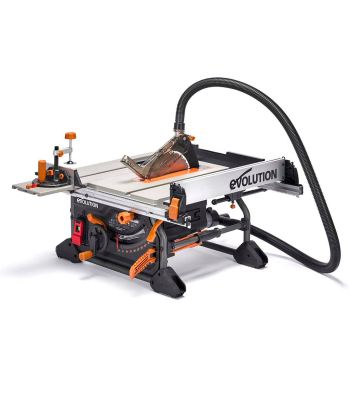

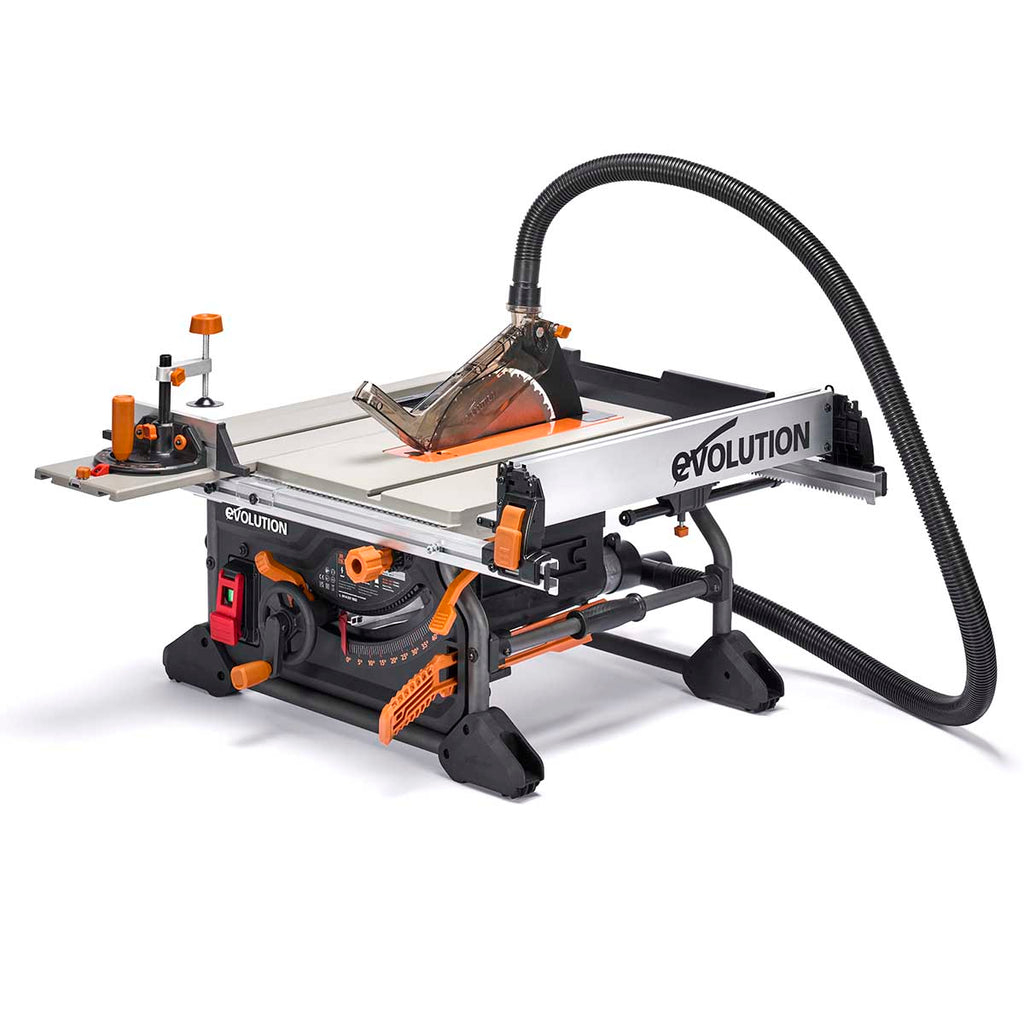

Evolution R255TBL+ 230v Portable Jobsite Table Saw with 255mmTCT Multi-material Blade

The R255TBL+ Portable Jobsite Table Saw from Evolution is here. Designed to replace 255mm jobsite saws, it's our highest performing Table Saw & is ready to deliver new standards for accuracy, reliability and powerful Multi-material cutting.

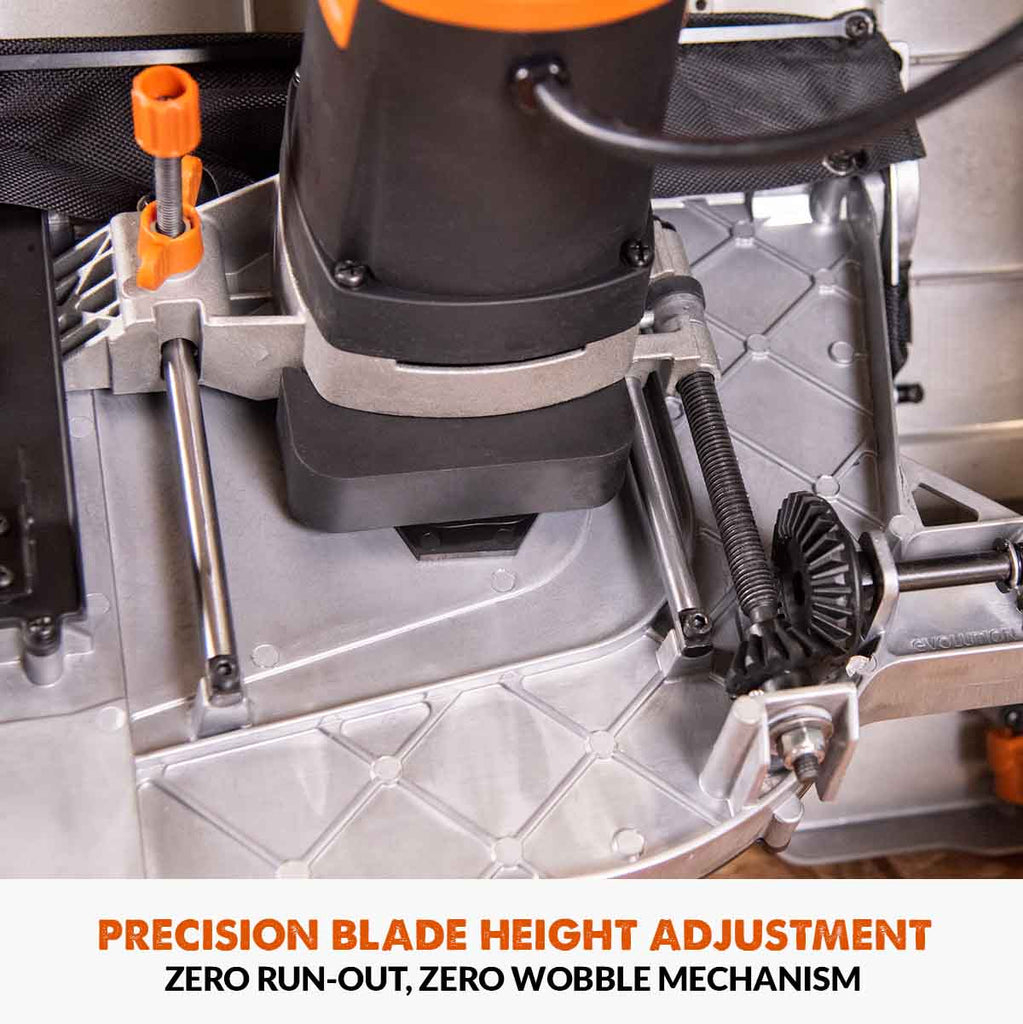

The R255TBL+ Table Saw is more accurate. A clean sheet design from top to bottom, it features a Dual Rack & Pinion Rip-Fence for accurate, repeatable cuts. A new Blade Height and Bevel Adjustment Mechanism offers wobble free adjustment. Our patented Blade-to-Rip-Fence Parallelism Adjustment allows for perfectly aligned cuts in full size sheets. The R255TBL+ also features a Metal Throat Plate with corner height adjustment. All this comes together to make the R255TBL+ the most accurate and adjustable table saw weve ever made.

The R255TBL+ is more versatile. The Integrated Mitre Sled uses an industry-standard channel profile for compatibility with 3rd party accessories, as well as our own Top-Clamp Equipped Mitre Guide. It offers a 85mm cut depth at 90 degrees and 58mm at 45 degrees. It features a wider, cast table top with integrated outfeed support, able to handle full 8x4 sheets with ease but still weighs less than the RAGE5-S. Add in improved dust extraction, Multi-material cutting ability, tool free set-up and adjustment and you have the most versatile Table Saw we've ever made.

This R255TBL+ Table Saw is more portable. Smaller and lighter than the RAGE5-S the R255TBL+ is mounted within a light,roll-cage chassis, with integral carry handles. Its an easy one man carry without the wheeled stand, and superbly mobile on its large all-terrain wheels, easily passing straight through a standard width internal door (32") making it the perfect jobsite saw.

The R255TBL+ is safer. The more powerful 1,800w motor features Soft-Start, Electronic Blade Brake, motor overload protection and a paddle style emergency stop. The blade guard offers improved cut visibility, and the Quick Release Riving Knife design features offset angle and lateral adjustment for easier and safer cutting, especially when handling full size boards. The new motor housing offers improved dust extraction, better access for cleaning, and blade swaps are easier than ever before.

The R255TBL+ 255mm Portable Table Saw is built to take on the jobsite. Its more powerful, more accurate, safer to use, and quicker and easier to set-up than the RAGE5-S Table Saw. Its ready to deliver multi-material cutting performance as well as the accuracy and finish quality required for your fine woodwork projects.

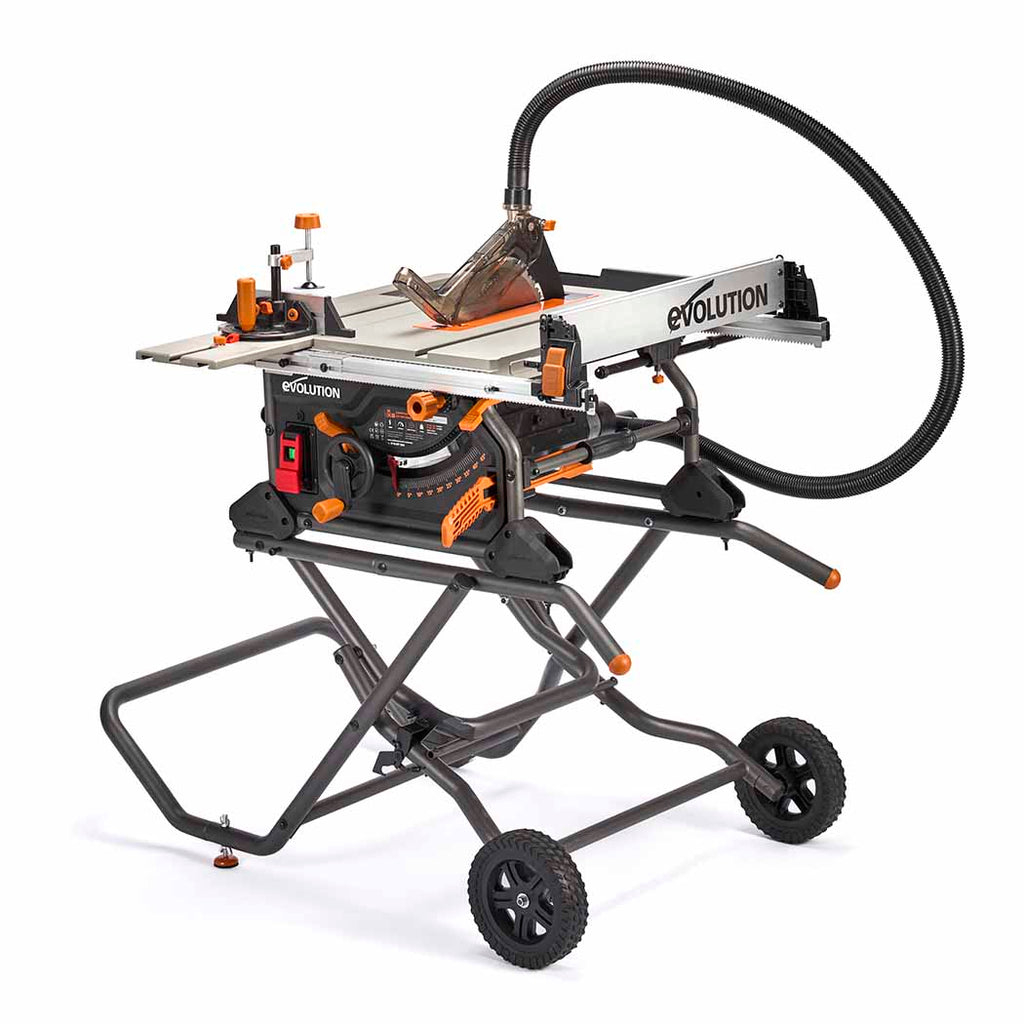

*The R255TBLX+ version comes equipped with the new tubular steel all-terrain wheeled support as standard. Fixed to the table with 4 bolts it gives you the flexibility to run your new table saw as a bench mount or stand mount unit and to swap between the two options in less than a minute.

Features

• More portable, powerful, accurate and easier to adjust and calibrate.
• Improved accuracy for every cut type and ease of set-up

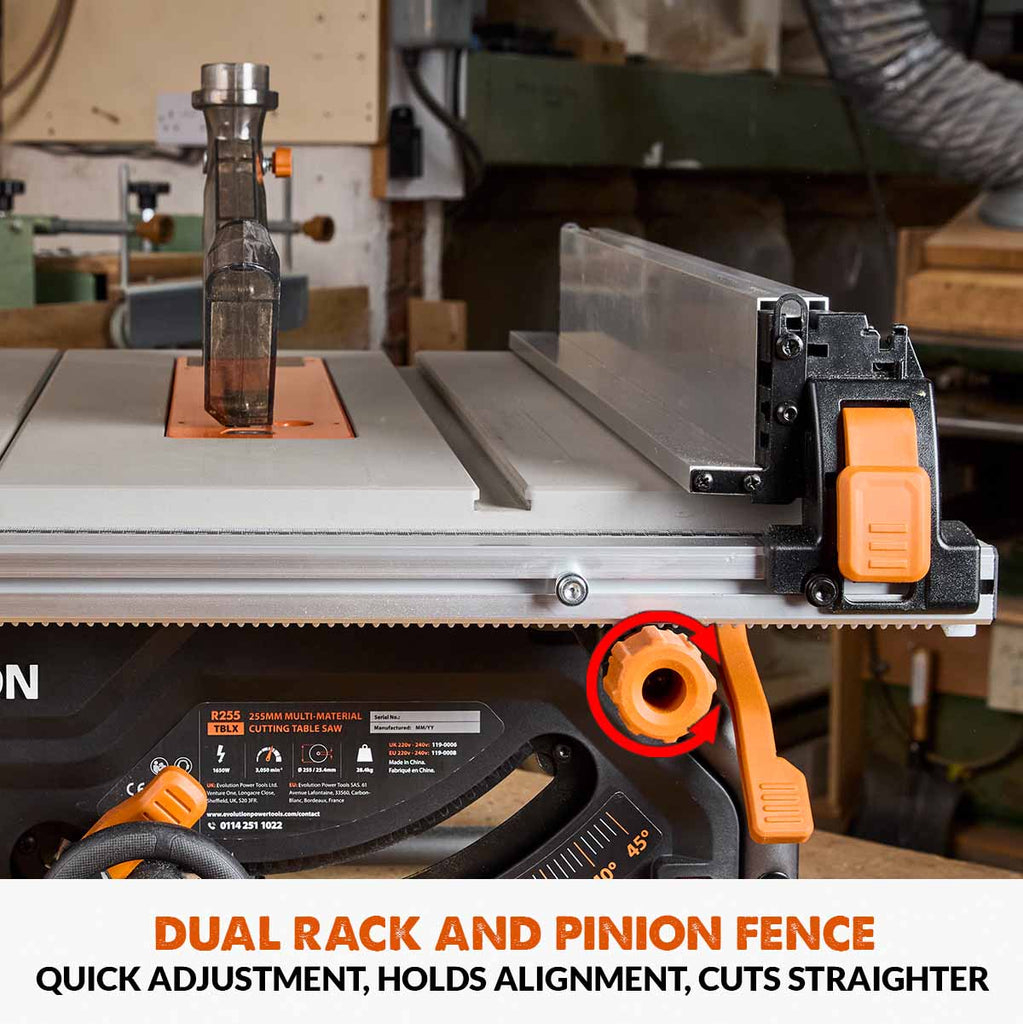

• Dual Rack & pinion parallel fence for precision rip cuts
• Crosscut Sled Insert industry standard accessory channel profile for Mitre Guide
• Geared micro-adjustable bevel angle selector 45 Range (+&- 2)
• Quick Release Riving Knife with offset angle and lateral adjustment.
• Metal roll cage chassis with integrated carry handles
• Increased depth of cut 85mm at 90 and 58mm depth of cut at 45 degrees
• New blade guard. easier adjustment and enhanced cut visibility & dust extraction
• More compact and portable wheeled support rolls through standard width door
• ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
• AOS Active Overload System enhanced reliability Soft Start, E-Brake, Intelligent Motor Overload Protection
• Paddle Style Emergency Stop Switch provides increased user safety
• Reduced pack and storage size
• Multi-Material cutting technology. One saw, one blade, cuts all.*
• More powerful, 1,800W hi-torque motor
• 45 bevel tilt and +/-60 mitre guide covers common, compound cutting angles
• Increased table-top size - includes table extenders and outfeed supports
• 4m durable cable with the built-in storage cable holder
• Includes Outfeed Support
• Includes Dual Inlet Vacuum Hose Kit
• All tools and accessories stored on tool frame
• 3 Year limited warranty
• Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 28T blade included
• Available with or without folding, wheeled accessory stand
• EU Customer support
