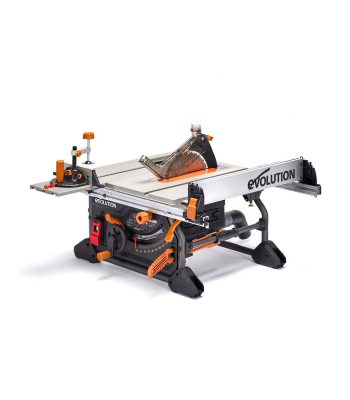

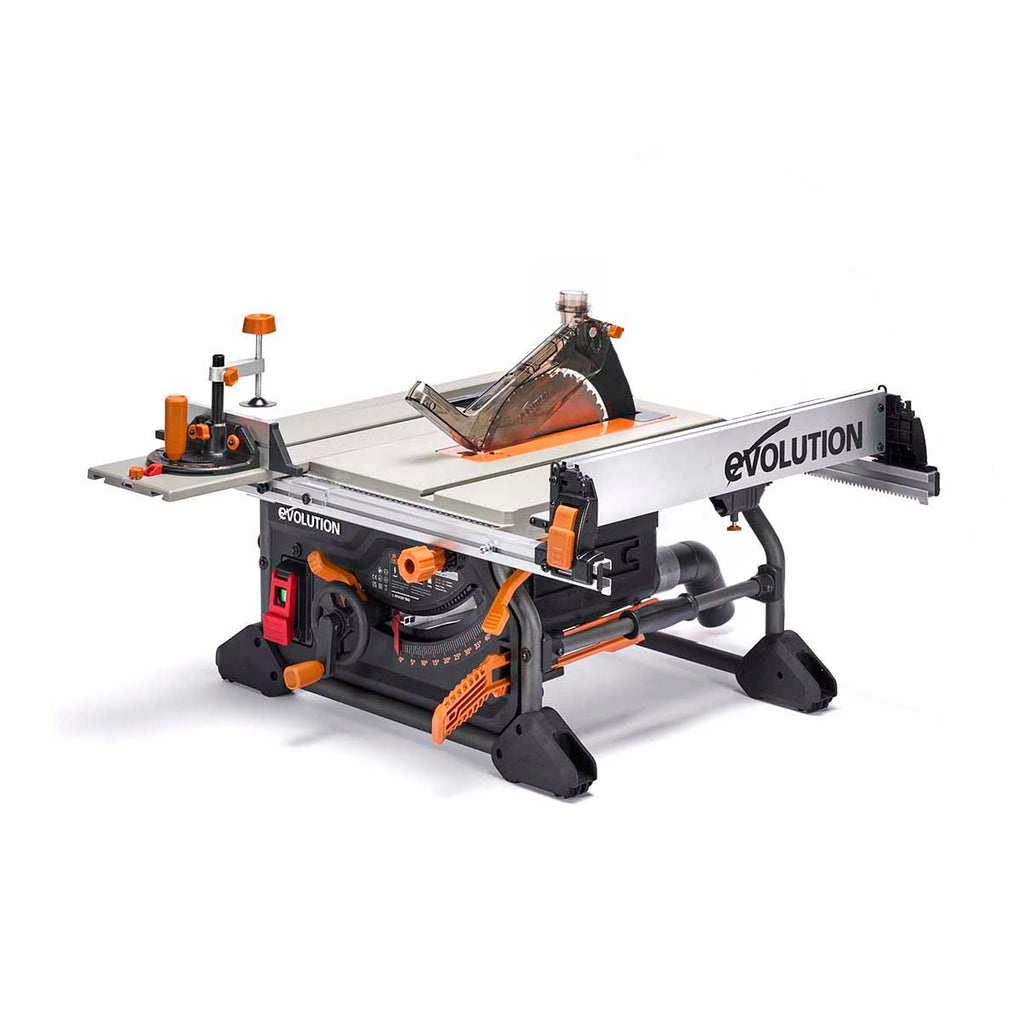

Evolution R255TBL Portable Table Saw 230v 255mm With TCT Multi-material Blade

The R255TBL Portable Table Saw from Evolution is here. Designed to replace the RAGE5-S and other 255mm jobsite saws, it's ready to deliver new standards for accuracy, reliability and powerful multi-material cutting.

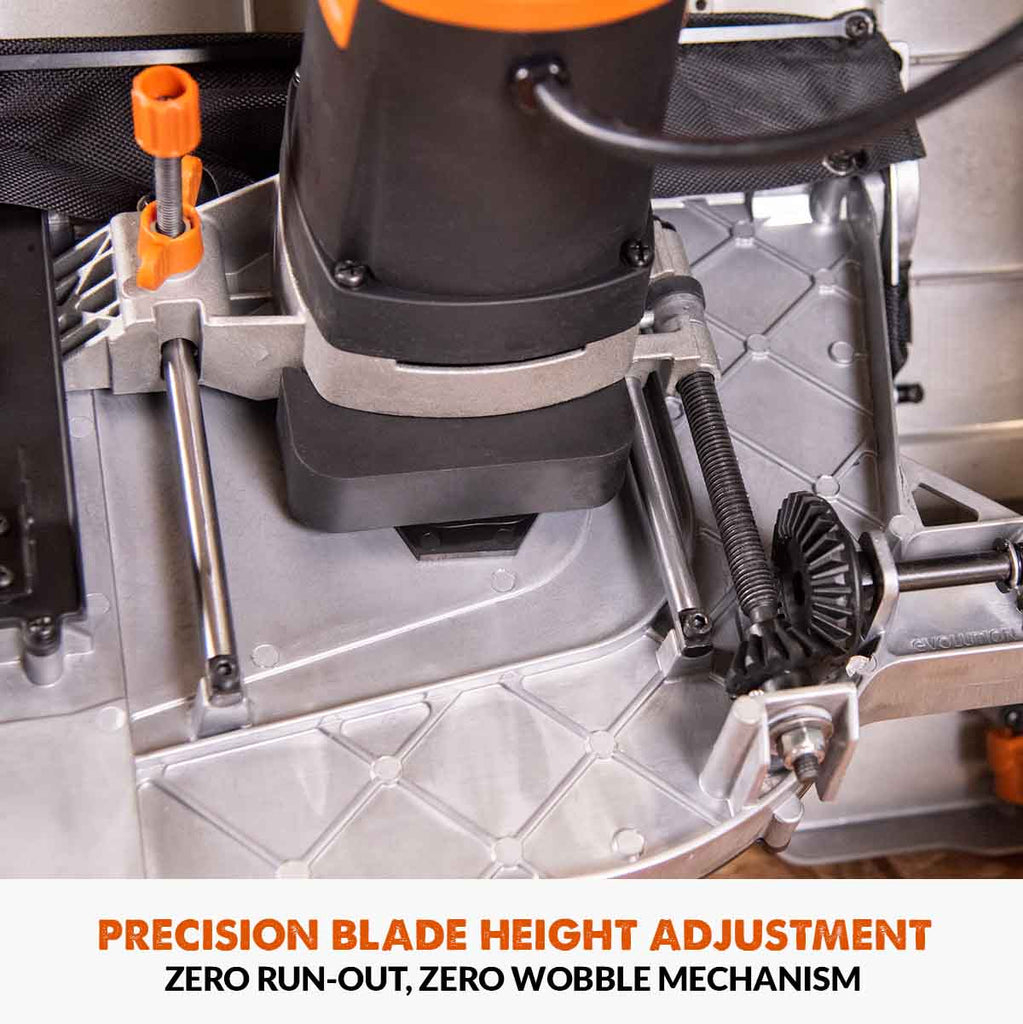

The R255TBL Table Saw is more accurate. A clean sheet design from top to bottom, it features a Dual Rack & Pinion Rip-Fence for accurate, repeatable cuts. A new Blade Height and Micro-adjustable Bevel Cut Angle Mechanism offers wobble free adjustment. Our patented Blade-to-Rip-Fence Parallelism Adjustment allows for perfectly aligned cuts in full size sheets. The R255TBL also features a Metal Throat Plate with corner height adjustment.

The R255TBL is more versatile. The Integrated Mitre Sled uses an industry-standard channel profile for compatibility with 3rd party accessories, as well as our own Mitre Guide. It offers a 85mm cut depth at 90 degrees and 58mm at 45 degrees. It features a wider, cast table top designed to excel at handling 8x4 sheets but still weighs less than the RAGE5-S. Add in improved dust extraction, Multi-material cutting ability, tool free set-up and adjustment and you have the most versatile Table Saw we've ever made.

This R255TBL Table Saw is more portable. Smaller and lighter than the RAGE5-S the R255TBL is mounted within a light, roll-cage chassis, with integral carry handles. Its an easy one man carry without the wheeled stand, and superbly mobile on its large all-terrain wheels, easily passing straight through a standard width internal door (32") making it the perfect jobsite saw.

The R255TBL is safer. The more powerful 1,650w motor features thermal overload protection and a paddle style emergency stop. The blade guard offers improved cut visibility, and the Quick Release Riving Knife design features offset-angle and lateral adjustment for safer cutting. The new motor housing offers improved dust extraction, better access for cleaning, and blade swaps are easier than ever before.

The R255TBL 255mm Portable Table Saw is built to take on any home project or jobsite cutting task. Its more powerful, more accurate, safer to use, and much quicker and easier to set-up than the RAGE5-S Table Saw that it supersedes. Its ready to deliver our 'one blade cuts all' multi-material technology as well as the accuracy and finish quality required for your woodwork projects.

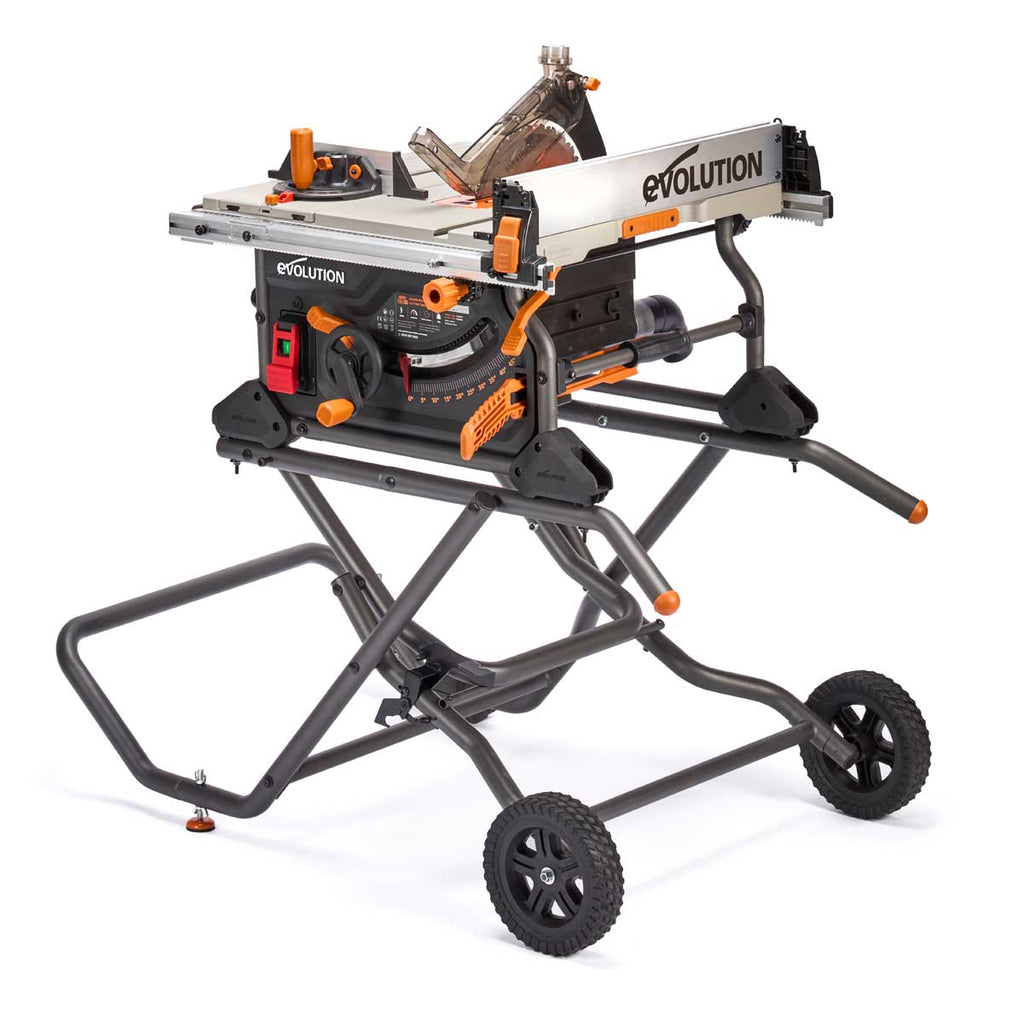

*The R255TBLX version comes equipped with the new tubular steel all-terrain wheeled support as standard. Fixed to the table with 4 bolts it gives you the flexibility to run your new table saw as a bench mount or stand mount unit and to swap between the two options in less than a minute.

Features

More portable, powerful, accurate and easier to adjust and calibrate.
Improved accuracy for every cut type and ease of set-up

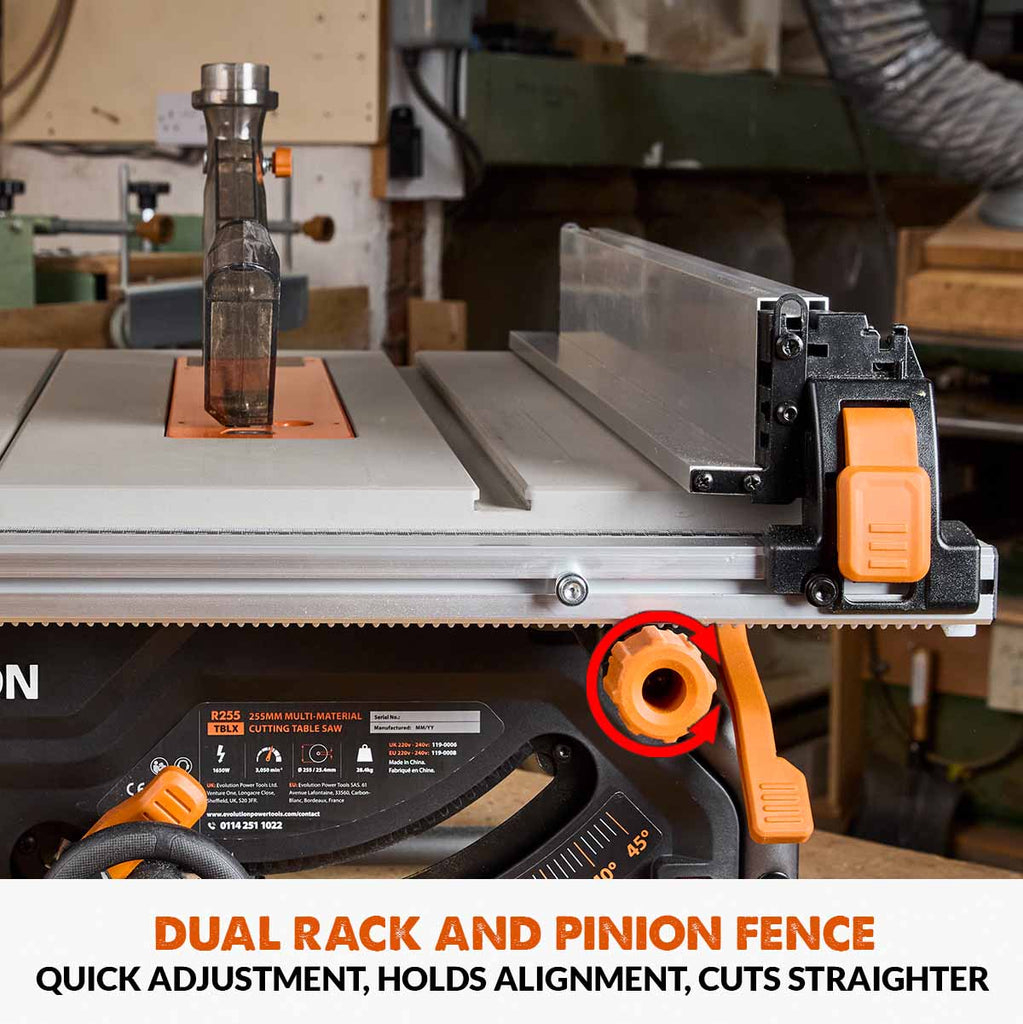

Dual Rack & pinion parallel fence for precision rip cuts.
Quick Release Riving Knife with offset angle and lateral adjustment.
Crosscut Sled Insert industry standard accessory channel profile for Mitre Guide
Geared micro-adjustable bevel angle selector 45 Range (+ and - 2)
Metal roll cage chassis with integrated carry handles.
Increased depth of cut 85mm at 90 and 58mm depth of cut at 45 degrees.
New blade guard. easier adjustment and enhanced cut visibility & dust extraction.
More compact and portable wheeled support rolls through standard width door.
ADC Active Dust Collection. Improved dust extraction and release (all new dust system)
Intelligent Motor Overload Protection.
Paddle Style Emergency Stop Switch provides increased user safety.
Reduced pack and storage size.
Multi-Material cutting technology. One saw, one blade, cuts all.*
More powerful, 1,650W hi-torque motor
45bevel tilt and +/-60mitre guide covers common, compound cutting angles.
Increased table-top size.
4m durable cable with the built-in storage cable holder.
All tools and accessories stored on tool frame.
3 Year limited warranty.
Multi-material cut capable, Japanese Tungsten-Carbide-Tipped (TCT) 255mm 24T blade included.
Available with or without folding, wheeled accessory stand.
UK Customer support & servicing

Specifications

Motor (240V 50Hz):	1,650W
Speed No Load:	2,500rpm
Max. Bevel (Left):	45 (-2 to 47 with stop washers removed)
Blade Dia.:	255mm
No. of Teeth:	24
Bore:	25.4mm
Kerf:	2mm
Max. Depth of Cut (0):	85mm
Max. Depth of Cut (45):	58mm
Mild Steel Plate (Max. Thickness):	6mm
Rip Capacity - Right of the blade	650mm
Rip Capacity - Left of the blade	371mm
Riving Knife Thickness	1.8mm
Product Dimensions:	(With Leg Assembly) 1050mm x 750mm x 940mm
Product Dimensions:	(Without Leg Assembly) 880 x 730 x 330mm
Max. Table Dimensions	1200mm x 640mm
Min. Table Dimensions	745mm x 640mm
Packaging Dimensions:	910mm x 370mm x 750mm
Storage Dimensions:	H 1110mm x D 660mm x W 825mm
Product Weight:	21.2 kg
Packaged Weight:	33.5 kg
Sound Pressure Level LPA:	93,2dB(A) K:3dB(A)
Sound Power Level LWA:	106,2dB(A) K=3 dB(A)

Items Included

28T Multi-Material TCT Blade

Blade Guard with Dust Extraction Port

Built In Crosscut Sled

Dust Extraction 90 Elbow

Mitre Gauge

Adjustable Rip Fence

Push Stick

Riving Knife

Blade Changing Spanners

Assorted fixings
