Evolution RAGE5-S 255mm 110V Table Saw

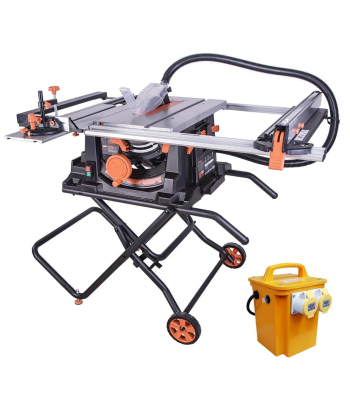

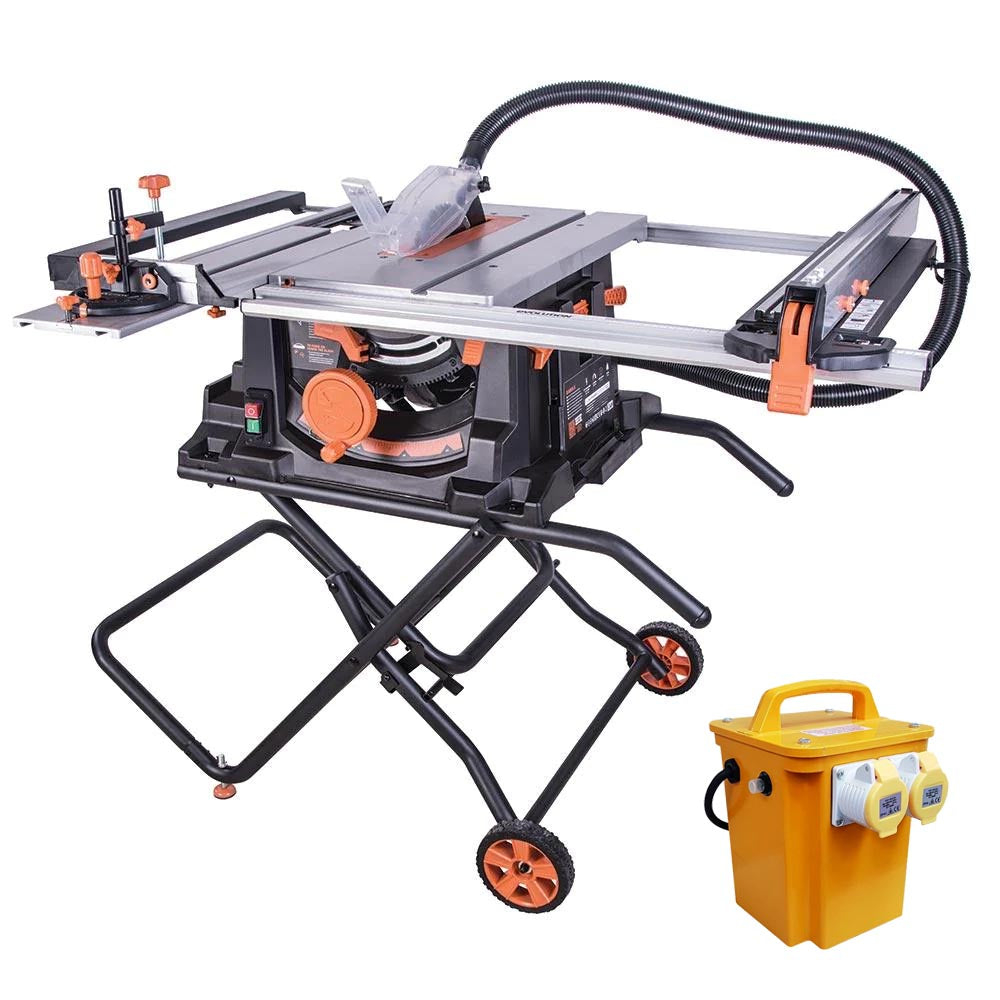

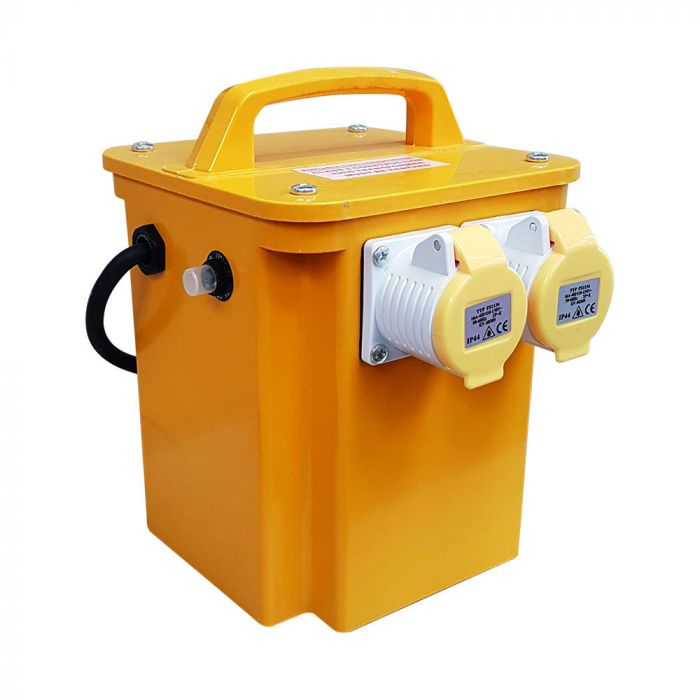

110v RAGE5-S Table Saw for use with 3,300VA 110v Transformer

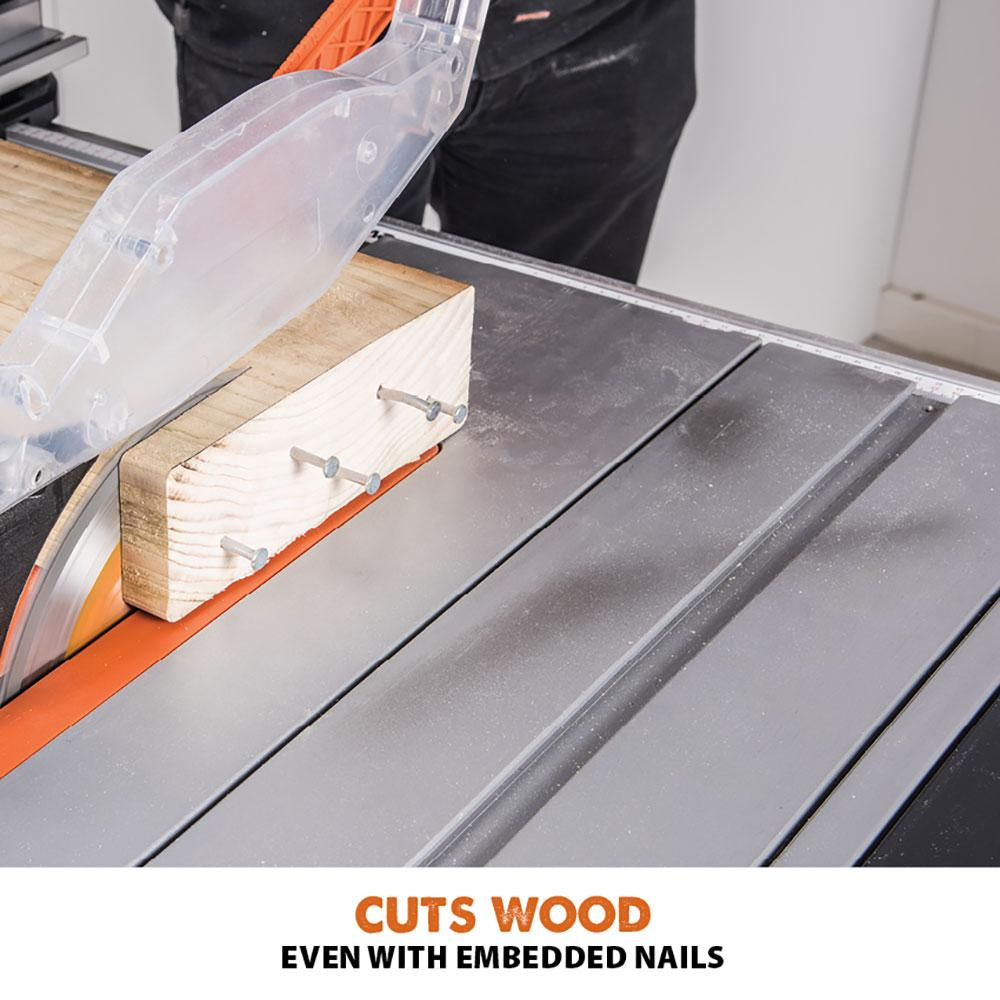

The RAGE5-S Multipurpose Table Saw is the tool that all good workmen know. Powerful, with its high-torque motor and tungsten-carbide-tipped 255mm TCT 28T blade, its the most versatile multi-material cutting table saw you can buy for the money. The RAGE5-S will easily cut steel, aluminium, wood, even wood with embedded nails and plastic, using just one blade. Excellent at ripping thin stock, making accurate crosscuts and handling sheet materials. Its the perfect tool for the keen home diyer and construction crew alike.

The RAGE5-S specification includes a powerful 1500W high-torque motor to make light work of any cut. Up to 45 bevel and 60 mitre cut ability can be fine tuned and easily adjusted. Blade depth can be adjusted across an 80mm height range. A full length adjustable fence, angle guide, adjustable material pusher and extendable platform on the left and right sides of the top plate make this a truly versatile table saw. The RAGE5-S has the power for the big jobs and the finesse to tackle the small ones. If youre going to be specialising in one specific type of material cutting why not take in our range of material specific, wood, fine wood, mild steel, aluminium, stainless and diamond coated cutting blades.

Features

Multi-Material cutting technology. One saw, one blade, cuts all.*
Accurate rip cutting, assisted by an adjustable, full-length, parallel fence with measuring rail guide.
Reliable smooth square cutting every time in a variety of materials.
Powerful hi-torque motor with an optimized gearbox & blade system.
0- 45-degree bevel tilt and 60- 60-degree mitre fence covers all common, compound cutting angles.
83mm depth of cut at 90 degrees and 58mm depth of cut at 45 degrees.
Integrated dust port above and below the blade captures dust effectively when fitted to an extraction unit/vacuum (sold separately).
Collapsible frame with wheels for easy storage and portability.
Left and right table extensions support wide work-pieces with a table surface area of 1200mm x 640mm when fully extended.
1.5m durable cable with the built-in storage cable holder.
Push Stick included for safer operation when handling smaller offcuts.
3 Year limited warranty.

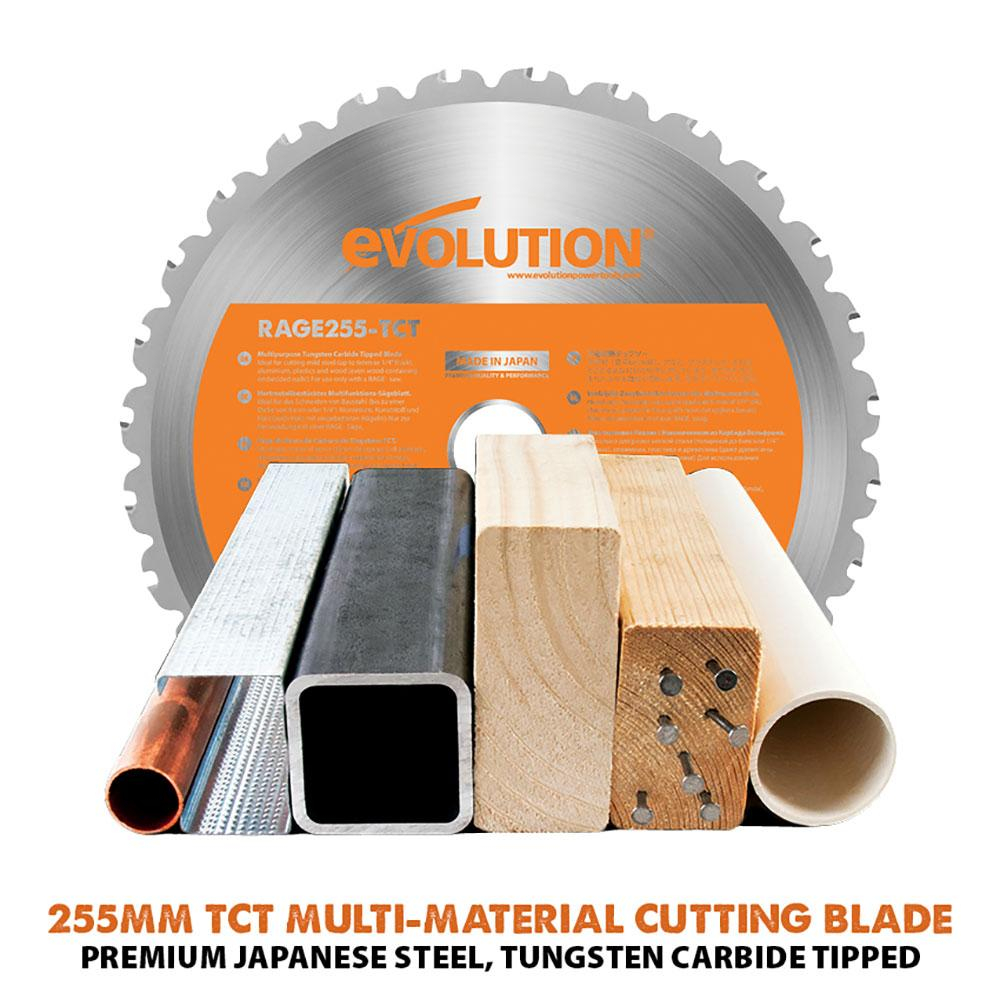

Japanese Tungsten-Carbide-Tipped (TCT) 255mm blade included.

Specifications

Motor (110V 50Hz):	1600W
Speed No Load:	2500rpm
Max. Bevel (Left):	45
Blade Dia.:	255mm
No. of Teeth:	24
Bore:	25.4mm
Kerf:	2mm
Max. Depth of Cut (0):	83mm
Max. Depth of Cut (45):	58mm
Mild Steel Plate (Max. Thickness):	6mm
Rip Capacity - Right of the blade	605mm
Rip Capacity - Left of the blade	305mm
Riving Knife Thickness	1.8mm
Product Dimensions:	(With Leg Assembly) 1050mm x 750mm x 940mm
Product Dimensions:	(Without Leg Assembly) 880 x 730 x 330mm
Max. Table Dimensions	1200mm x 640mm
Min. Table Dimensions	745mm x 640mm
Packaging Dimensions:	910mm x 370mm x 750mm
Storage Dimensions:	H 1110mm x D 660mm x W 825mm
Product Weight:	28.5 kg
Packaged Weight:	33.5 kg
Sound Pressure Level LPA:	93,2dB(A) K:3dB(A)
Sound Power Level LWA:	106,2dB(A) K=3 dB(A)

Items Included

28T Multi-Material TCT Blade

Blade Guard with Extraction Port

Dust Extraction Hose

Mitre Gauge

Anti-Bounce Device

Adjustable Rip Fence

Push Stick

Blade Changing Spanners

Assorted fixings

Quick-Assembly Guide
Step-By-Step Assembly & Calibration Guide
Advanced Setup Guide
