Evopower 50Hz Generator 180kVA / 144kW 3 Phase - EVO180PSC

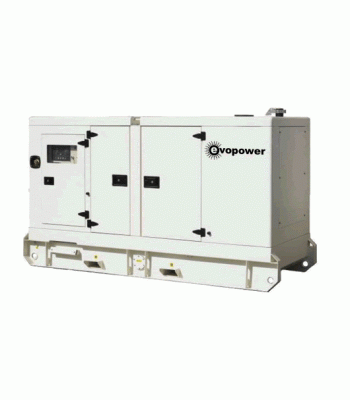

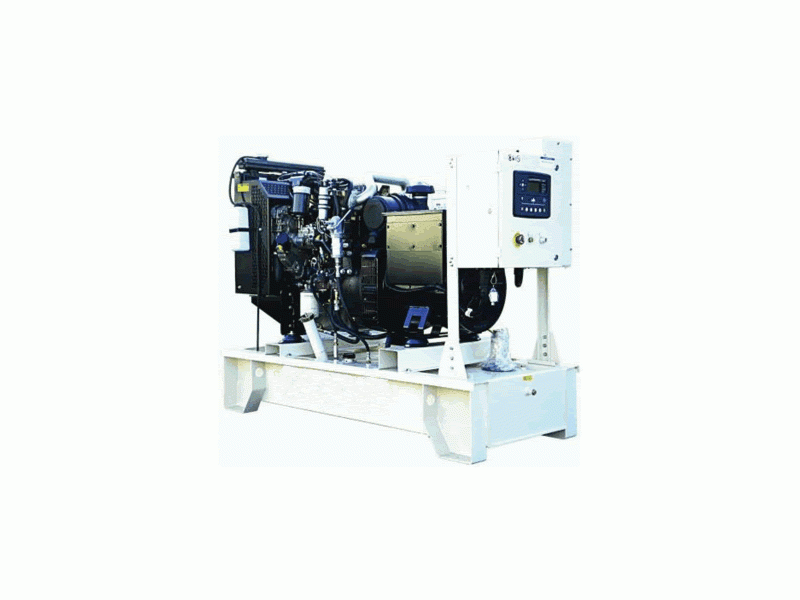

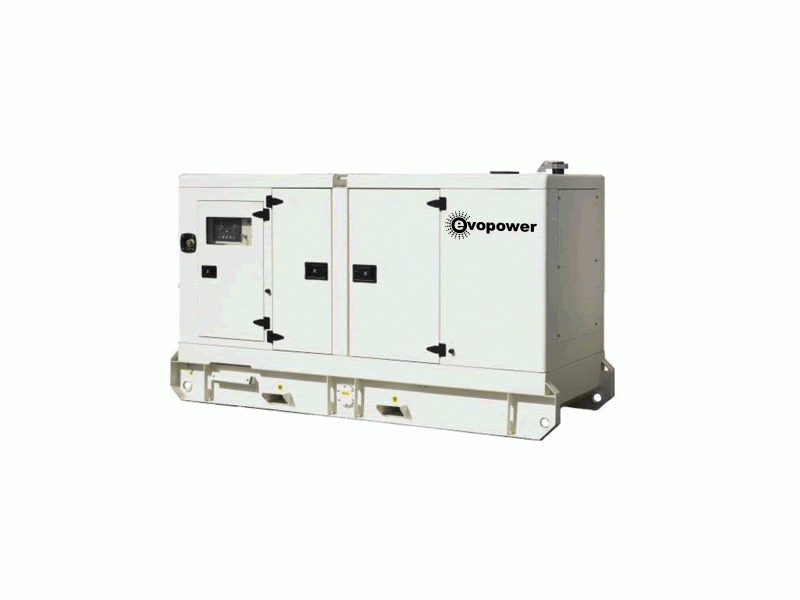

 The images above are for illustration purposes only

Ratings

• Prime output: This rating is applicable for supplying continuous electrical power at variable load. There is no limitation to the annual hours of operation and this model can supply 10% overload power for 1 hour in 12 hours.
• Standby output: This rating is applicable for supplying electrical power (at variable load) in the event of a utility power failure. No overload is permitted on these ratings.
• Standard reference conditions: 25°C, 100m A.S.L., 30% relative humidity

Design Features

• High quality assembly, providing stiffness and low vibration
• Power coated steel. Corrosion and scratch resistant.
• Compact and long service life
• Wiring and connectors with double protection.
• Protection guards in radiator and high voltage parts
• Full 12 month Evopower warranty.

Design Standards

• CE marking
• ISO8528-1995
• GB/T2820-1997
• ISO 9001:2008 Registered Company

Configuration

• 4-Stroke water-cooled diesel engine.
• Industrial silencer.
• Coolant recovery tank
• Single bearing, 4 pole brushless alternator.
• Anti vibration mountings
• Integral fuel tank with fully bunded base protection.
• Fuel level sensor
• Auto start control system with electronic digital control module DSE7420
• Output circuit breaker.
• Emergency stop button
• High engine temperature and low oil pressure shutdown system.
• 24V starter battery with leads and switch

Acoustic Canopy Features

• Water and dust proof design
• Door locks
• High quality sound absorbing and fire retardant inner material
• Lifting lugs
• Forklift holes in base

Engine Data

Engine brand: Perkins

Engine Model: 1106A-70TAG2

Engine Speed: 1500 RPM

Number of cylinders: 6

Aspiration: Turbo & Aftercooled

Combustion system: Direct injection

Displacement: 7.01 Litres

Governor Type: Mechanical

Cooling System: Water Cooled

Total Coolant Capacity: 21 Litres

Total Lube Oil Capacity: 16.5 Litres

Cooling Air Flow: 280.8 m3/min

Exhaust Gas Flow: 31 m3/min

Exhaust Gas Temperature: 499 °C

Fuel cons. @ 110% standby load: 44 l/hr

Fuel cons. @ 100% prime load: 40.2 l/hr

Fuel cons. @ 75% prime load: 31 l/hr

Fuel cons. @ 50% prime load: 20.5 l/hr

Alternator Data

Alternator brand: Leroy Somer

Alternator model: LSA46.2M3

Excitation: Self excited

Insulation class: H

Drip proof protection: IP23

Winding Pitch: 2/3 (wdg 6)

Number of wires: 12 re-connectable

AVR model: R 250

Voltage regulation: +- 0.5%

Total Harmonic Distortion: < 2%

Telephone interference: TIF < 50%

Flanges and Shields: Cast Iron

Enclosed Set Data

L x W x H (mm): 3518 x 1200 x 1842

Weight: 2620kg

Fuel Tank: 420 Litres

Noise @ 7m: 70db
