Manufacturer: Evopower
Price: (£17,042.00 ex VAT) £20,450.40 (inc VAT)

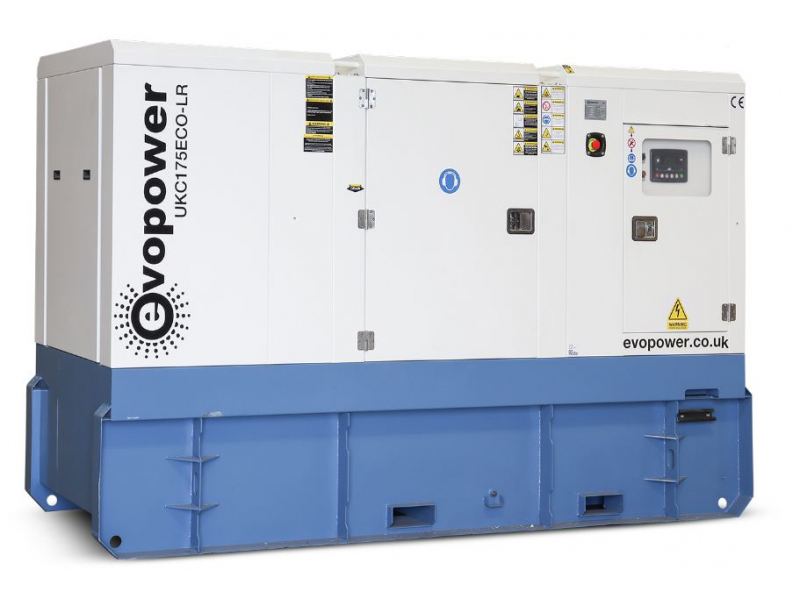

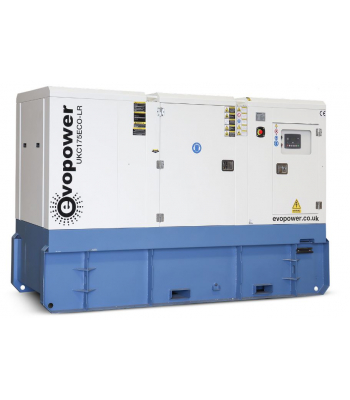

20450.40 2024-12-21The long running Evopower UKC175ECO-LR 175kVA 3-Phase 400/230v diesel generator is powered by a high quality Cummins 6BTAA5.9-G12 engine and outputs a maximum of 175kVA (141kW) when used for standby power applications or 160 kVA (128 kW) when used for consistent or ‘prime power’ scenarios. Standby (ESP) and Prime Power (PPR) ratings are defined within ISO8528. The high quality Genpower LK274F brushless alternator is self-excited and includes an AVR (automatic voltage regulator) to maintain the output voltage and prevent voltage drop due to a sudden increase in load.
The extended running time, thanks to the larger base fuel tank can provide over 52 hours of run time.
Our heavy duty weatherproof close fit canopy enclosure is rust proof, powder coated and fitted with quality sound attenuation to reduce the noise level to only 70 dB at a 7 metre distance. Stainless steel fittings are used for all door hinges and locks.
Designed in the UK, using our vast experience building power equipment, our ECO series generators are much more than an engine and alternator, we only use high quality components in our gensets such as CHiNT 4 pole MCCB breakers, Varta batteries, industrial grade silencers, Cummins engines and DSE (Deep Sea Electronics) control panels along with our custom alternator refined over years of experience building diesel gensets and power equipment.
Our UKC175ECO-LR 175kVA diesel genset has a large integral base mounted fuel tank which holds 888 litres of diesel to power the diesel generator set for over 26 hours at 100% load, and over 52 hours running on 50% load (based on prime power rating). You can use red diesel to save on running costs without affecting any warranty terms. The easy to access external fuel filler cap is lockable for security and there is a fuel gauge mounted internally which is easy to see and read.
The base mounted diesel tank is integrated within the heavy duty skid, complete with fork holes for easy unloading/moving and hook eyes to help keep the machine stable while transporting or lifting into position.
All generators in the ECO range are powered by Cummins and are fitted with battery charger and coolant heater as standard.
| Weight | 2182 kg |
|---|---|
| Dimensions | 3288 × 1130 × 2050 mm |
| Standby Power (kVA) | 175 |
| Standby Power (kW) | 141 |
| Prime Power (kVA) | 160 |
| Prime Power (kW) | 128 |
| Max Amperage | 252.8 |
| Phase | 3 |
| Voltage (V) | 400 |
| Frequency (Hz) | 50 |
| Engine Model | Cummins 6BTAA5.9-G12 |
| Fuel Type | Diesel |
| Fuel Filter Part No. | FF5052, FS1280 |
| Engine Oil Type | SAE 15W40 |
| Engine Oil Volume (Litres) | 16.4 |
| Oil Filter Part No. | LF3349 |
| Rated Speed (R/min / RPM) | 1500 |
| Cooling | Water / Aftercooled |
| Fuel Tank Size (Litres) | 888 |
| Run Time @ 50% Load (Prime) | 52.2 |
| Run Time @ 75% Load (Prime) | 26.1 |
| Alternator Model | LK274F |
| Breakers | CHiNT 4P MCCB |
| Control Panel Model | Deep Sea Electronics 6120 MKIII |
| ATS Compatible? | Yes |
| Sound Level @ 7m (dB) | 70 |
| Air Filter Part No. | KW2140C1 |
