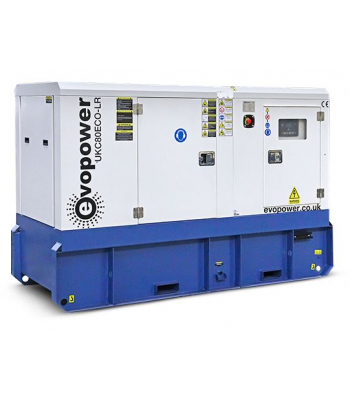

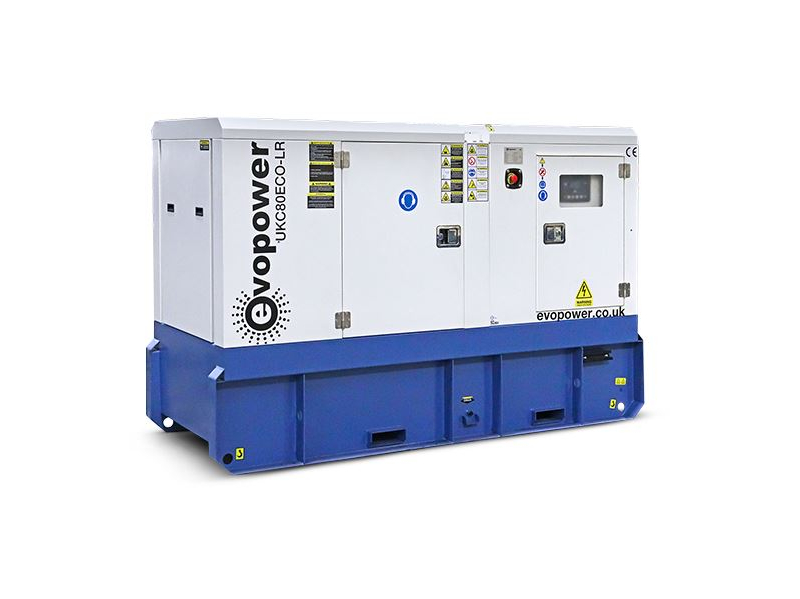

EVOPOWER 80KVA LONG RUN CUMMINS POWERED DIESEL GENERATOR - UKC80ECO-LR

The Evopower UKC80ECO-LR long run generator, powered by Cummins, outputs a maximum 80kVA / 64 kW when used for standby power applications or 73 kVA (58 kW) when used for consistent or ‘prime power’ scenarios. The 3-Phase output can be used for 400v or 230v equipment by running all three phases or from one phase (bearing in mind potential phase in-balances). The Standby (ESP) and Prime Power (PPR) ratings are defined within ISO8528. The high quality Genpower LK224F brushless alternator is self-excited and includes an AVR (automatic voltage regulator) to maintain the output voltage and prevent voltage drop due to a sudden increase in load.

Our heavy duty weatherproof close fit canopy enclosure is rust proof, powder coated and fitted with quality sound attenuation to reduce the noise level to only 70 dB at a 7 metre distance. Stainless steel fittings are used for all door hinges and locks.

Designed in the UK, our ECO series generators are much more than an engine and alternator, we only use high quality components in our gensets such as CHiNT 4 pole MCCB breakers, Varta batteries, industrial grade silencers, Cummins engines and DSE (Deep Sea Electronics) control panels along with our custom alternator refined over years of experience building diesel gensets.

Our UKC80ECO-LR 80kVA diesel genset has an integral base mounted fuel tank which holds 333 litres of diesel to power the diesel generator set for over 22 hours at 100% load, and over 41 hours running on 50% load (based on prime power rating). You can use red diesel to save on running costs without affecting any warranty terms. The easy to access external fuel filler cap is lockable for security and there is a fuel gauge mounted internally which is easy to see and read.

The base mounted diesel tank is integrated within the heavy duty skid, complete with fork holes for easy unloading/moving and hook eyes to help keep the machine stable while transporting or lifting into position.

All generators in the ECO range are powered by Cummins and are fitted with battery charger and coolant heater as standard.

Weight 1408 kg
Dimensions 2538 × 1000 × 1650 mm
Standby Power (kVA) 80
Standby Power (kW) 64
Prime Power (kVA) 73
Prime Power (kW) 58
Max Amperage 113.7
Phase 3
Voltage (V) 400
Frequency (Hz) 50
Engine Model Cummins 4BTA3.9-G11
Fuel Type Diesel
Fuel Filter Part No. FF5052, FS1280
Engine Oil Type SAE 15W40
Engine Oil Volume (Litres) 16.4
Oil Filter Part No. LF3345
Rated Speed (R/min / RPM) 1500
Cooling Water / Aftercooled
Fuel Tank Size (Litres) 333
Run Time @ 50% Load (Prime) 41.1
Run Time @ 75% Load (Prime) 29.2
Alternator Model Genpower LK224F
Breakers CHiNT 4P MCCB
Control Panel Model Deep Sea Electronics 6120 MKIII
ATS Compatible? Yes
Sound Level @ 7m (dB) 70
Air Filter Part No. KW1638
