Fini Cube 7.5-10-270 270L Tank Direct Drive Screw Compressor 7.5kw 400V 37.1 CFM 10 Bar - V91PO92FNM201

Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Estimated Delivery Time 2 Working Days)

Nationwide Delivery
Order now for delivery on
Mon 6th Jan 2025

Quote Ref: @107191

Product ID: FINI_CUBE_F_V91PO92FNM201

Barcode: 8016738809060

Related Products: See all related products

Manufacturer: Fini

Price: 3,709.00 ex VAT) £4,450.80 (inc VAT)

4450.80 2025-01-24
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

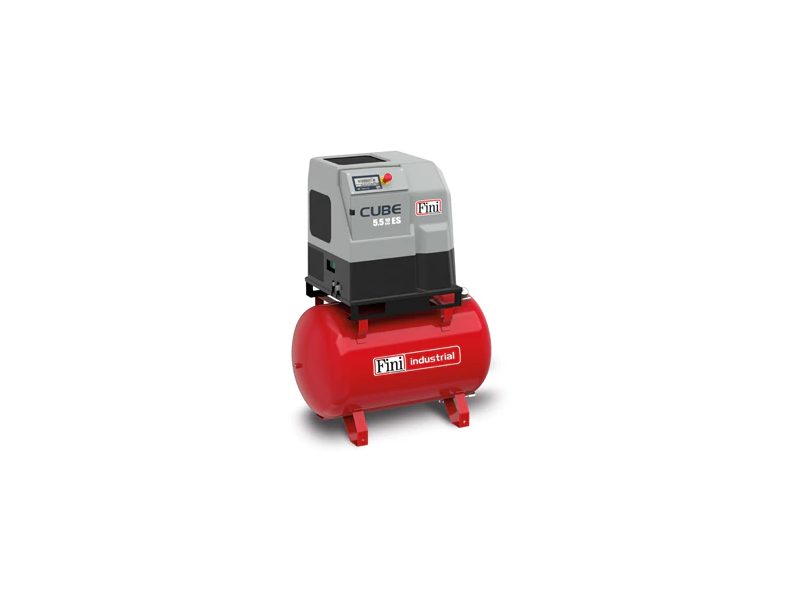

Fini Cube 7.5-10-270 270L Tank Direct Drive Screw Compressor 7.5kw 400V 37.1 CFM 10 Bar - V91PO92FNM201

The CUBE range has always been a benchmark in the industrial compressed air sector. As a result of the gearless coaxial drive system, all the power of the electric motor is transferred to the air-end without losing efficiency and ensuring top operating
reliability. The CUBE compressors are designed to run continuously under the most severe conditions of use, with special attention to energy consumption, quiet operation, reduced operating and maintenance costs, and ease of installation
and use.

The “ES” version has the refrigerated dryer entirely enclosed in the cab while maintaining the same shape and dimensions of the machine. It is immediately ready for operation, without any additional installation costs. The dryer ensures the production of dried air, which is essential for preserving the systems and the quality of the end product. It enables excellent performance, even in unfavourable environmental conditions and high inlet temperatures.

Simplified maintenance Routine maintenance parts are easily accessible and simple to replace, ensuring long service intervals and keeping maintenance costs low.

HIGHLIGHTS:
  • Four Maintenance Timers
  • Auto-Restart After Power Failure.
  • Programmable Cooling Fan Temperature
  • programmable remote Control Starting
  • Flexible Range - 4kW - 7.5kW with freestanding cabinet or with 270Lt & 500Lt air receiver and with on board refrigerated dryer.
Supply voltage (V / Hz / Ph) 400/50/1
Engine power (kW) 7.5
Engine power (HP) 10
Delivery  (CFM) 37.1
Tank Size 270L
Dryer No
Maximum pressure (bar) 10
Lubrication oil
Silent Yes
Noise level (dB) 68
Transmission type Direct Drive
Connection (") 1/2
Applications Recommended for continuous industrial use as an air source for small and medium enterprises, where compressed air is the most important energy source.
Regime of use industrial
Manufacturer  Fini
Individual guarantee (months) 24
Legal entity guarantee (months) 12
Warranty features The warranty granted to the electronic controller and the screw compression unit is 2 years.
Net length length (mm) 1200
Net width width (mm) 600
Net height height (mm) 1450
Net weight (kg) 194

Brand: Fini

Identifier: FINI_CUBE_F_V91PO92FNM201

Product Document Download(s)

  Data Sheet
