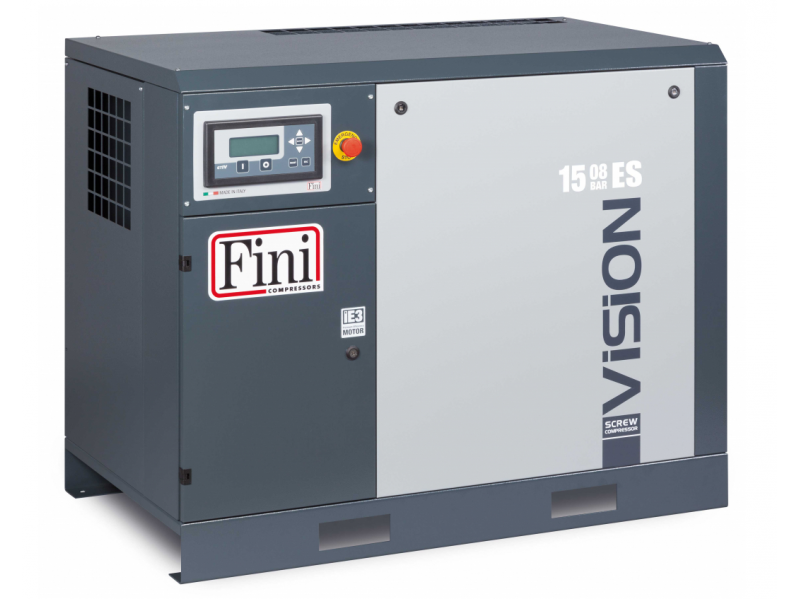

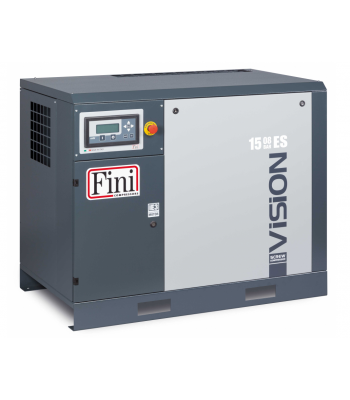

FINI NEW VISION 15-08 ES, 15kW, L/MIN 2150, 8 BAR F-V60SR92FNM860

HIGHLIGHTS:

• Exceptionally quiet operation
• Integrated refrigerated dryer and dual oil removing filters for dry, oil free compressed air ( less than 0.1 micron oil content)
• Advanced EasyTronic IV controller provides monitoring, full programmability, diagnostics and advanced connectivity features
• High output compressor element produces more air from less power
• Durable and reliable in the toughest conditions
• Compact and attractive cabinet
• Fitted with advanced RotEnergy synthetic coolant, for reduced service, less wear and lower power consumption
• Convenient service access with all components reached through the front panel for simple maintenance and ease of installation
• Drive system with POLY- V drive belt for longer life and improved drive efficiency
• The compressor element and all other major components are designed and produced at the FINI factory ensuring the highest quality with advanced design
• Available with maximum pressure from 8 bar to 13 bar

ETIV Advanced electronic controller

The advanced controller fitted to the VISION range has been specifically developed to guarantee optimum monitoring and regulation of the compressor’s operation, allowing flexibility and full programming of the complete compressed air station for maximum efficiency and safety.

Controller with multi-function backlight LCD graphic display, the menu is drop down type. In the main screen display indicates:

• Working pressure (offload and load pressure)
• Oil temperature
• Compressor status (stand-by, offload, load)
• Fan status (off or on)
• Date and time
• Hours remaining before maintenance
• Inverter use percentage

Remote monitoring (on demand)

GSM/GPRS/Ethernet/WiFi module (for on-line compressor status, remote assistance, connection
with PC, Smartphone and Tablet, connectivity in a multi compressor station).

Master/slave function

It is possible to connect up to 4 compressors for managing the workload in
such a way to equalize the hours dynamically changing set pressures of the various compressors.

High efficiency Motors

The design of the VISION compressors, including the high efficiency IE3 motors, has been fully focused on combining the different components that make up a perfect compressed air installation for a completely integrated, modular and functional system that combines maximum convenience with optimum energy efficiency.
