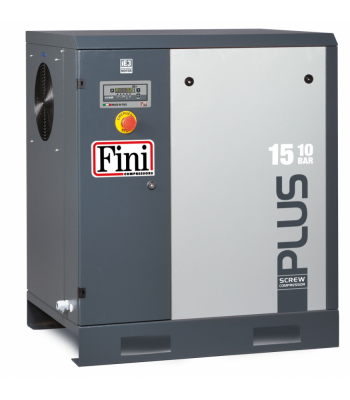

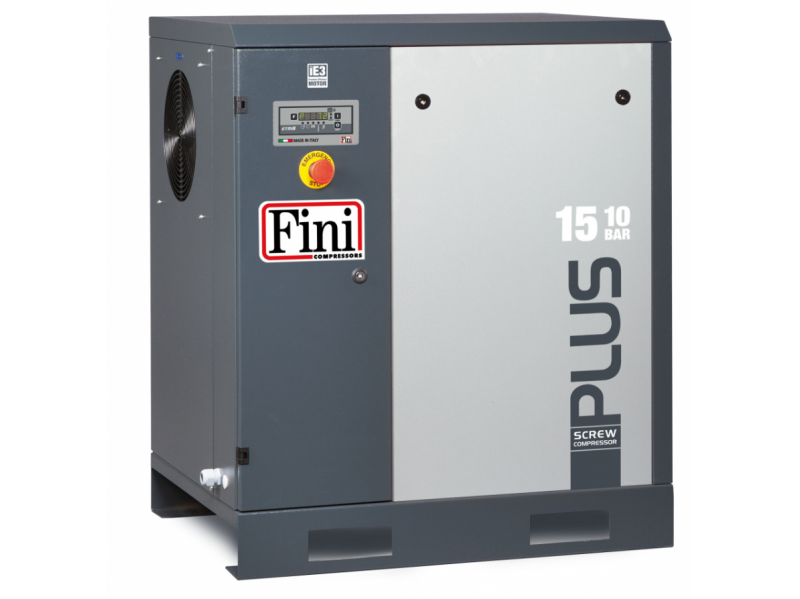

FINI PLUS Rotary Screw Air Compressor 1510, 15 kW, L/MIN 1850, 10 BAR F-V60NQ92FNM760

FINI PLUS Rotary Screw Air Compressor 1510, 15 kW, L/MIN 1850, 10 BAR F-V60NQ92FNM760
Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Available (Estimated Delivery Time 2 Working Days)

Nationwide Delivery
Order now for delivery on
Mon 25th Nov 2024

Quote Ref: @107869

Product ID: FINI_F_V60NQ92FNM760

Barcode: 8017750270371

Related Products: See all related products

Manufacturer: Fini

Price: (£4,328.00 ex VAT) £5,193.60 (inc VAT)

5193.60 2024-12-20
Got a question? E-mail a friend
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!
FiniCategoriesProducts

FINI PLUS 1510, 15 kW, L/MIN 1850, 10 BAR F-V60NQ92FNM760

HIGHLIGHTS:

  • Compact design and very quiet operation - suitable for direct installation in the working environment for maximum convenience and reduced installation.
  • Electronic controller ETMII
  • Advanced cooling system - The deployment of the thermostatically controlled centrifugal fan reduces noise and saves energy. The large surface area coolers for the air and oil ensures cool operation and lower air outlet temperatures even at higher ambient temperatures.
  • Simple maintenance - All service items are located in one position with easy access reducing costs and down time. The compressor is supplied with Rotenergy PLUS synthetic coolant with longer intervals before changing and reduced friction and wear to components.
  • POLY-V belt drive system - Providing three times the service life of normal V belts with much greater drive efficiency improving ouput and saving power.
  • IE3 High efficiency Motors - Allowing reduced energy consumption
  • High quality air - The PLUS is available with on board refrigerated dryer (ES models) ensuring dry compressed air benefits your system.
  • Long life and reliability - The PLUS benefits from state of the art manufacturing and over 50 years experience in the production of air compressors with most components designed and manufactured 'in house'
  • Flexible Range - 7.5kW - 15kW with freestanding cabinet or with 270Lt or 500Lt air receiver and with on board refrigerated dryer.

ETMIIInstalled on models from 4kW to 15kW

  • Four maintenance timers (air cartridge, oil, oil filter, oil separator).
  • Automatic re-start after power failure.
  • Cooling fan temperature settable.
  • Compressor remote start settable.
  • Integrated sequence phase relay.

Controller with multi-function backlight display, the menu is alphanumeric type. In the main screen are displayed:

Working pressure (offload/load);Oil temperature;Total working hours; On-load working hours;Compressor status led (stand-by, offload, load);Hours remaining before maintenance

High efficiency Motors

The design of the PLUS compressors, including the high efficiency IE3 motors, has been fully focused on combining the different components that make up a perfect compressed air installation for a completely integrated, modular and functional system that combines maximum convenience with optimum energy efficiency.

SPECIFICATION

kW - 15
Hp - 20
L/min - 1850
m3/h - 111
c.f.m - 65.3
Bar - 10
Psi - 145
dB(A) - 70
Outlet G (") - 3/4''
Kg - 235
Receiver Size - Floor Mounted
Product L x W x H (mm) - 800 x 700 x 980

Brand: Fini

Identifier: F-V60NQ92FNM760
