Fischer Rebar Anchor FRA 12/900 M 12-60 A4 - Qty8

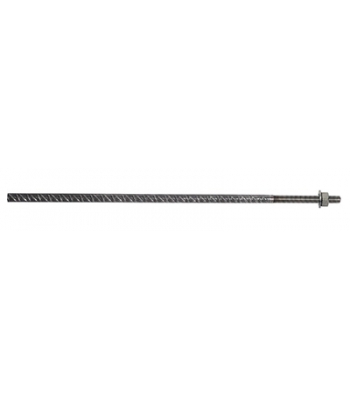

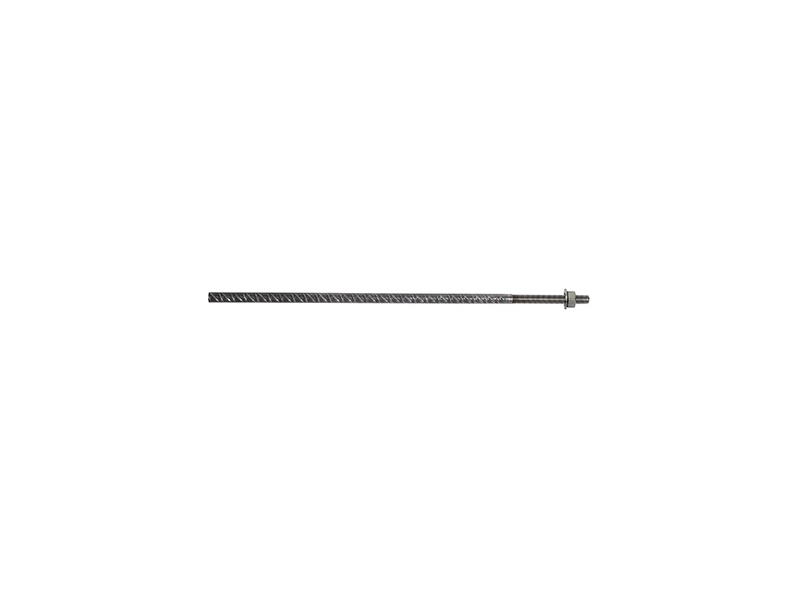

The fischer rebar anchor FRA is a concrete steel bar with a friction-welded threaded part made of stainless steel. The FRA is a system component for rebar connections with fischer injection mortars FIS V and FIS EM. The mortar is extruded bubble free into the drill hole using the injection adapter. The mortar bonds the entire surface of the reinforcement bar with the drill hole wall. The fischer rebar anchor FRA is approved for post-installation mortared overlap joints, connection reinforcements and needling.

The injection mortars FIS V and FIS VS LOW SPEED allow for rebar connections from Ø8 to 28 mm, whilst injection mortar FIS EM allows for rebar connections up to Ø40 mm to be carried out. This offers maximum flexibility.
The injection mortar FIS SB allows the user for realizing rebar connections from Ø 8 to 32 mm in combination with a simple and thus user-friendly cleaning of the drill hole.
FIS EM also allows for the execution of rebar connections in diamond-drilled holes.
The FRA with connecting thread in stainless steel A4 fully utilises the load-bearing capacity of the concrete. This means that extremely high tensile loads can be introduced into the base material.
Accessories in line with building site requirements, such as injection adapters and extension tubes, ensure rapid progress.
The FIS rebar case contains all of the individual components required, thus ensuring a convenient installation.

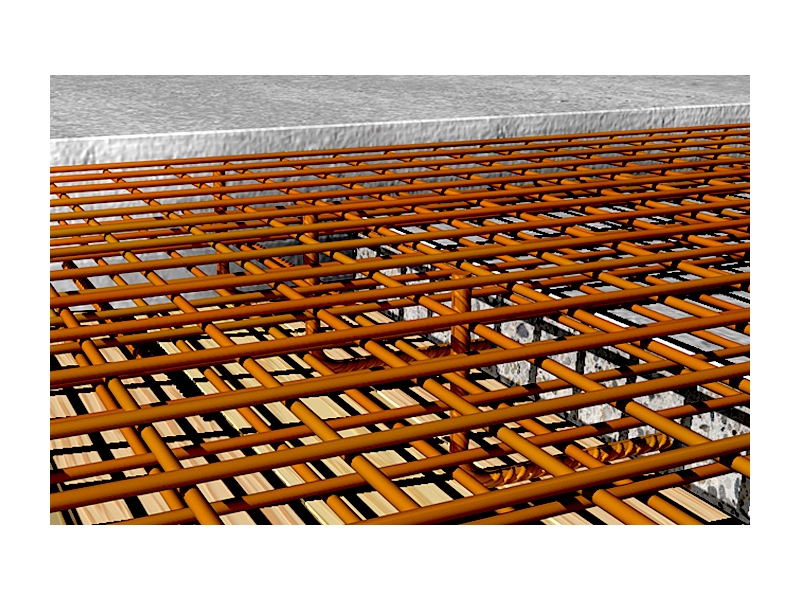

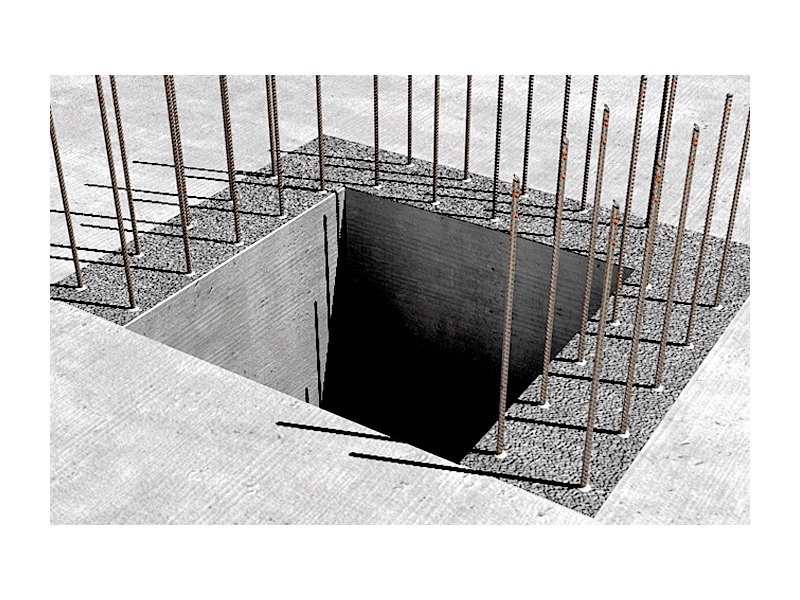

Post-installed concrete steel bars, e.g. for overlap connections, end anchorings, starter bars, crack stitching etc.
Rebar anchor FRA

Approved for:

Concrete C20/25 to C50/60, cracked and non-cracked

* You can find detailed information on building materials in the registration document.

Functioning

Anchoring as with cast-in reinforcement bars in line with Eurocode 2 and DIN 1045-1.
The mortar is extruded bubble free into the drill hole using the injection adapter. The geometry causes a build-up of pressure in the drill hole, which pushes the injection adapter and extension tube automatically out of the drill hole.
The mortar bonds the entire surface of the reinforcement bar with the drill hole wall.
A special certification is necessary for installation according to approval in Germany. The fischer Academy offers the relevant training courses.

Technical Data

DIBt-approval Yes
ETA-approval Yes
Total length	l	975	[mm]
Max. fixing thickness	tfix	60	[mm]
Drill hole	d0	16	[Ø mm]
Fill quantity		50	[scale units]
GTIN (EAN Code)		4048962070262

Brand: Fischer

Identifier: 505529
