Fox F46 251 Midi Lathe - 10" (240 Volt Only)

This is now a "Discontinued Product"

(Item No Longer Available - No Direct Replacement)

Fox F46 251 Midi Lathe - 10 inch  (240 Volt Only)
Authorised Reseller
Authorised Distributor

Free UK Mainland Delivery over £50 ex. VAT!

Discontinued! This item has been discontinued.

Quote Ref: @5096

Product ID: FOX_F46251

Manufacturer: Fox

Warranty: 3 years

Fox power tools come with a standard 3 year warranty on all power tools except the paddle mixers and sanders. The first year covers parts and labour and the second and third years cover just parts.

Fox Paddle Mixers and Sanders come with a one year warranty and covers parts and labour.

Fox warranties are not covered if the item is used outside the UK.

Price: 176.06 ex VAT) £211.28 (inc VAT)

211.28 2025-05-29
Error! Sorry there has been a problem adding your items to the cart.
Available at checkout!

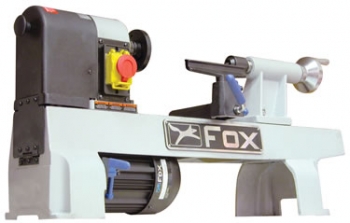

Fox F46 251 Midi Lathe - 10" (240 Volt Only)

  • A compact yet powerful lathe constructed predominantly from grey cast iron, precisioin milled for accuracy and smoothness in operation
  • 15" (375mm) between centres with an optional lathe bed extension available to increase this capacity to a maximum of 39" (990mm)
  • Bowl turning capacity of 10" (250mm)
  • Powerful whisper quiet ¾hp induction motor providing more than sufficient power to prevent slowing or stalling
  • Maximum power transmission is achieved via a high performance serpentine belt system and a combination of six grooved pullies enabling turning speeds from 410rpm - 3050rpm
  • Fox Tools have used industry standard components, enabling a wide range of accessories to be used with this lathe
  • Main drive spindle has a 1" x 8tpi thread, coupled with a morse No. 2 taper
  • Hollow tailstock facilitates up to 3/8" hole boring for applications such as lamp making
  • Comes Standard with a 6" cast tool rest, face plate, spur centre and revolving centre.
  • One year manufacturers guarantee
  • Technical Specifications:
  • Motor ... ¾hp Induction
  • Speed (variable) ... 410rpm, 650rpm, 1030rpm, 1500rpm, 2200rpm & 3050rpm
  • Distance between centres ... 15" (375mm)
  • Swing over bed ... 10"
  • Thread ... 1" x 8tpi
  • Tapers ... Morse No.2
  • Tail stock spindle travel ... 2¼" (60mm)
  • Weight ... 35Kg
  • F46 856 Extension Bed Is Here

Brand: Fox

Identifier: F46 251
