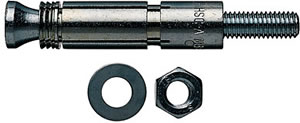

Hilti HSC-A M10 x 40/20 Self-Undercutting Anchor with External Thread (per 25)

Hilti HSC-A M10 x 40/20 Self-Undercutting Anchor with External Thread (per 25)

£5.95 UK Mainland Delivery for orders under £50 ex. VAT

Available (Next Working Day Delivery (if ordered by 3pm))

Quote Ref: @2233

Product ID: HIL_00031140

Manufacturer: Hilti

Price: 49.99 ex VAT) £59.99 (inc VAT)

59.99 2024-12-25
Error! Sorry there has been a problem adding your items to the cart.
10 people have bought this item!

Hilti HSC-A M10 x 40/20 Self-Undercutting Anchor with External Thread (per 25)

  • Material Coating/Plating/Finish zinc plated
  • Approvals/Listings Fire resistance data, SOCOTEC, DIBt

Applications Uses

  • Fastening where safety is at stake eg to secure cladding, facades and security barriers - Width Across Flats 17mm
  • Thread Diameter M10
  • Standard Embedment Depth 40mm
  • Baseplate Clearance Hole 11mm
  • Recommended Tension Load General 6.1 kN
  • Recommended Shear Load General 13.3 kN
  • Zinc Plated- Minimum Hole Depth 46mm
  • Maximum Thickness Fastened 20mm
  • Length 79.5mm
  • Hole Depth 46mm
  • Bit Diameter 16mm
  • Required Torque 20Nm
  • Box of 25
  • Item No. 000311407

Brand: Hilti

Identifier: HIL 00031140
