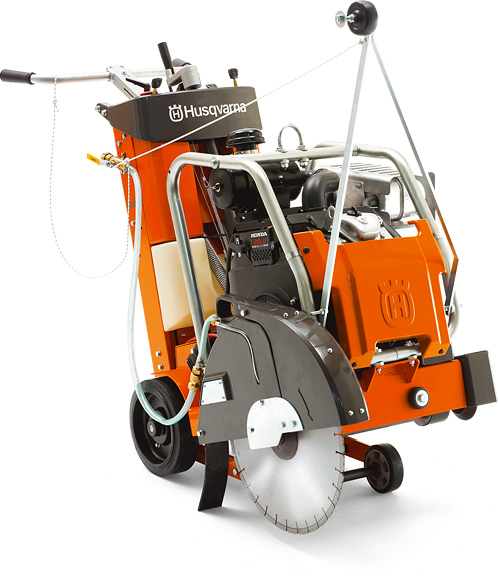

Husqvarna FS 524  600mm  18/20/24" Petrol Floorsaw

Part No: 965150205

Series of floor saws with engine options from 13 to 24 hp. The floor saws are developed with a clear focus on ergonomics and user friendliness, featuring many innovative solutions that make your job easier. Their unique transmission makes them ideal for more demanding jobs, despite their compact size.

      *  Poly-V belts for optimum power transmission.
    * Husqvarna’s floor saws are robust, well designed and easy to use thanks to features as protective cage, lift bail and cutting depth indicator.
    * Patent-pending raise/lower assist system, using springs.
    * Innovative series of self-propelled small flat saws with blade capacities of 500 to 600 mm.
    * Patent-pending engine and bladeshaft mounting system reduce vibrations and give better cutting performance.
    * Patented IntelliSeal bladeshaft system allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings.
    * Patent-pending spring-assist screw feed adjustment reduces the force required to adjust the blade in and out of the cut.

TECHNICAL DATA

Engine

Motor manufacturer    Honda
Max output (As rated by the engine manufacturer)   15.3 kW / 20.5 hp(I)

Cutting equipment

Diamond blade, max   600 mm / 24 "
Max cutting depth   220 mm / 9.625 inch

Dimensions

Weight   231 kg / 509.26 lbs
Product size, LxWxH   1750x660.4x1200 mm / 68.9x26x47.24 inch
