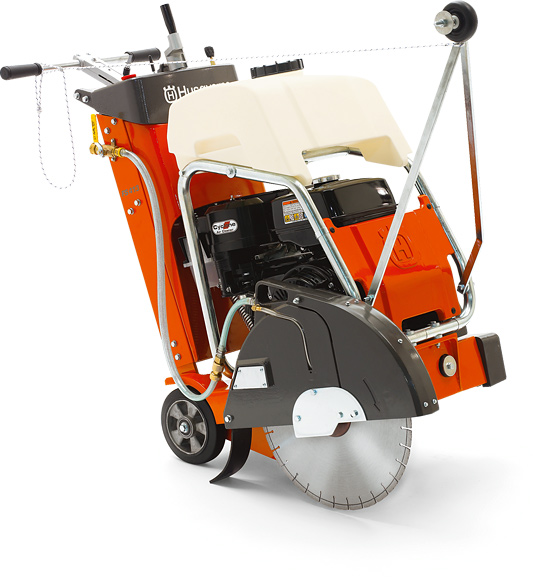

Husqvarna FS410 D  500mm 18/20" Diesel Floorsaw

Part No: 965150101

The new FS 400 series floor saws are true multi-purpose concrete saws, available with engine alternatives from 9 to 11 hp. They are compact and developed with a clear focus on ergonomics, making them ideal for small to mid-sized jobs.

  *  Poly-V belts for optimum power transmission.
    * Husqvarna’s floor saws are robust, well designed and easy to use thanks to features as protective cage, lift bail and cutting depth indicator.
    * Patent-pending raise/lower assist system, using springs.
    * A compact push saw with a clear focus on ergonomics.
    * Patent-pending engine and bladeshaft mounting system reduce overall vibration and produce better cutting performance.
    * Patented IntelliSeal bladeshaft system allows for a minimum of 250 maintenance-free hours and eliminates daily greasing of bearings.
    * Patent-pending spring-assist screw feed adjustment reduces the force required to adjust the blade in and out of the cut.
    * Compact and easy to transport.

TECHNICAL DATA

Engine

Motor manufacturer    Yanmar
Max output (As rated by the engine manufacturer)    6.8 kW / 9.2 hp(I)

Cutting equipment

Diamond blade, max   500 mm / 18 "
Max cutting depth   190 mm / 7.48 inch

Dimensions

Weight   145 kg / 319.66 lbs
Product size, LxWxH   1550x655x1200 mm / 61.02x25.79x47.24 inch
