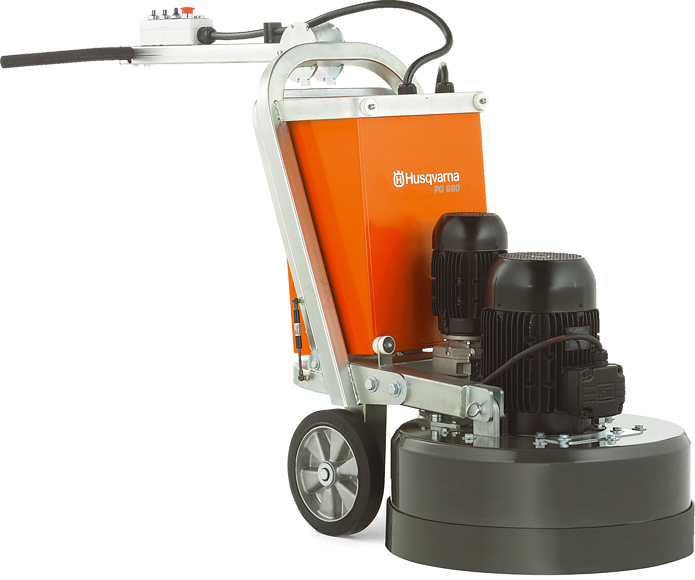

Husqvarna PG 680

Part No: 965195703

The Husqvarna PG 680 is an excellent choice for applications both large and small and especially commercial purposes. Smaller in size than the PG 820 the PG 680 is renowned for its manoeuvrability and ease of use without sacrificing power and output.

OTHER FEATURES

    * Applications range from concrete floor preparation and repair to grinding and polishing of concrete floors as well as the repair and polishing of terrazzo and other natural stone.
    * High power machinery capable of delivering extremely high production rates, increasing profit and saving valuable time.
    * Superior industrial strength construction delivers an atrractive yet robust machine.
    * Multi purpose application possibilities. A highly versatile line of equipment.
    * Comprehensively tried and tested on actual projects, ensuring technological effectiveness in the field in most applications and situations.
    * Low tool and maintenance cost per square metre/foot.
    * A unique 5-way sealing mechanism protects bearings and internal parts from aggressive concrete dust and slurry, which contributes to a longer machinery service life before first service and between subsequent services.
    * The control box is clearly marked and easy to use. Regulates and controls various functions on the machine.
    * Husqvarna’s Redi Lock™ is an instant and hassle-free system for changing diamond tooling. Robust construction ensures maximum protection and life of your diamond tools.
    * An excellent machine with power and a versatile size.
    * At 680 mm, it will fit through a standard door making it accessable to most projects.
    * Dual Drive Technology™ – fully independent control of both planetary and satellite grinding heads in regards to speed and direction of rotation. This enables higher production rates.
    * Triple-headed grinder – more downward pressure and power can be delivered to grinding heads, compared to 4-head machines. More stable operation over undulating surfaces than 4-head machines.
    * Market-leading power-to-weight ratio.
    * Long machinery service life thanks to the 5-way sealing mechanism, the spring steel head system and all zincplated steel parts.
    * Gear-driven planetary head; premium quality belt for powering grinding heads.
    * Industrial strength construction (robust steel frame, strong single-piece aluminium cover).
    * Low tool cost.
    * Ease of manoeuvrability and enhanced operator control.

TECHNICAL DATA

Engine

Power output   12.5 kW / 17 hp(I)
Rated current, A   32 A
Voltage   380 / 480 V
Phases   3

Specs

Grinding width   680 mm / 27 "

Dimensions

Product size, LxWxH   1150x680x1220 cm / 452.76x267.72x480.31 inch
Weight   385 kg / 850 lbs
