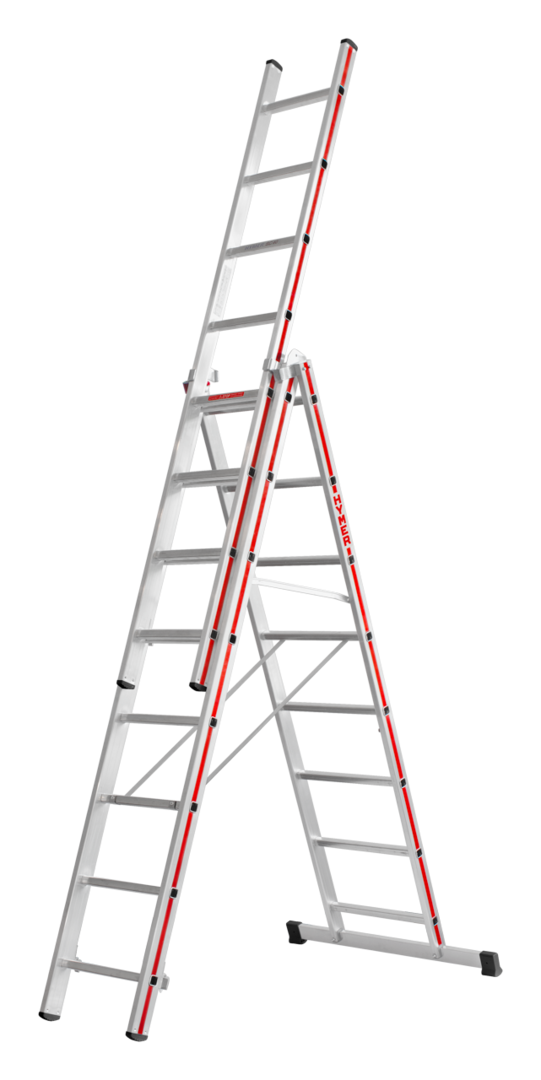

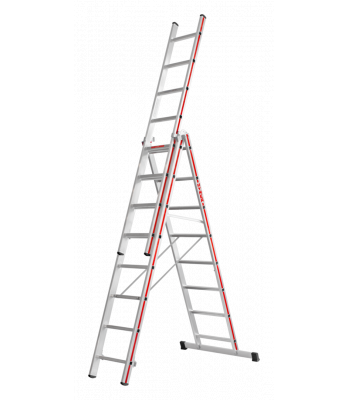

Hymer Red Line Combination Ladder 3x10 - Code 404730

The 4047 series is the ultimate combination ladder. Can be used as a freestanding ladder, leaning ladder, extension ladder and stairway ladder (up to 3x10)The simple locking mechanism allows easy assembly/disassembly.

Features

  • Versatile for use as a leaning, extension, step ladder, free standing and stairwell ladder
  • Rolled profile rungs
  • Solid steel fittings
  • High strength anti-splay straps
  • Simple to use aluminium locking bar
  • Sturdy stabiliser bar
  • Stairway mode possible up to 3x10
  • Load capacity 150 kg
  • EN 131 Professional

Specifics

  • Number of Rungs / Treads: 3x10
  • Size (Closed m): 2.91

Specifications

Manufacturer part number Number of treads Closed Heightm Extended Height (Extension ladder) m Reach height (extension ladder) m Stile Dimensions top/mid/botcm Base widthm Weight kg
404721 3x7 2.07 4.87 5.73 60/66/60 0.84 13.2
404724 3x8 2.35 5.43 6.29 60/71/60 1.01 15.0
404727 3x9 2.63 6.55 7.39 71/83/71 1.01 18.0
404730 3x10 2.91 7.11 7.94 71/83/71 1.2 19.7
404733 3x11 3.19 7.67 8.49 71/83/71 1.2 22.0
404736 3x12 3.47 8.51 9.32 71/89/71 1.2 24.2
404742 3x14 4.11 9.72 10.34 89/89/89 1.2 33.4

Brand: Hymer

Identifier: HYM404730

Product Document Download(s)

  Technical Data Sheet
