Hyundai DHY11KSE 1500rpm 11kVA Three Phase Diesel Generator  (Water Cooled 1500rpm)

These items are all delivered on curtain sided transport and therefore a forklift will be required!

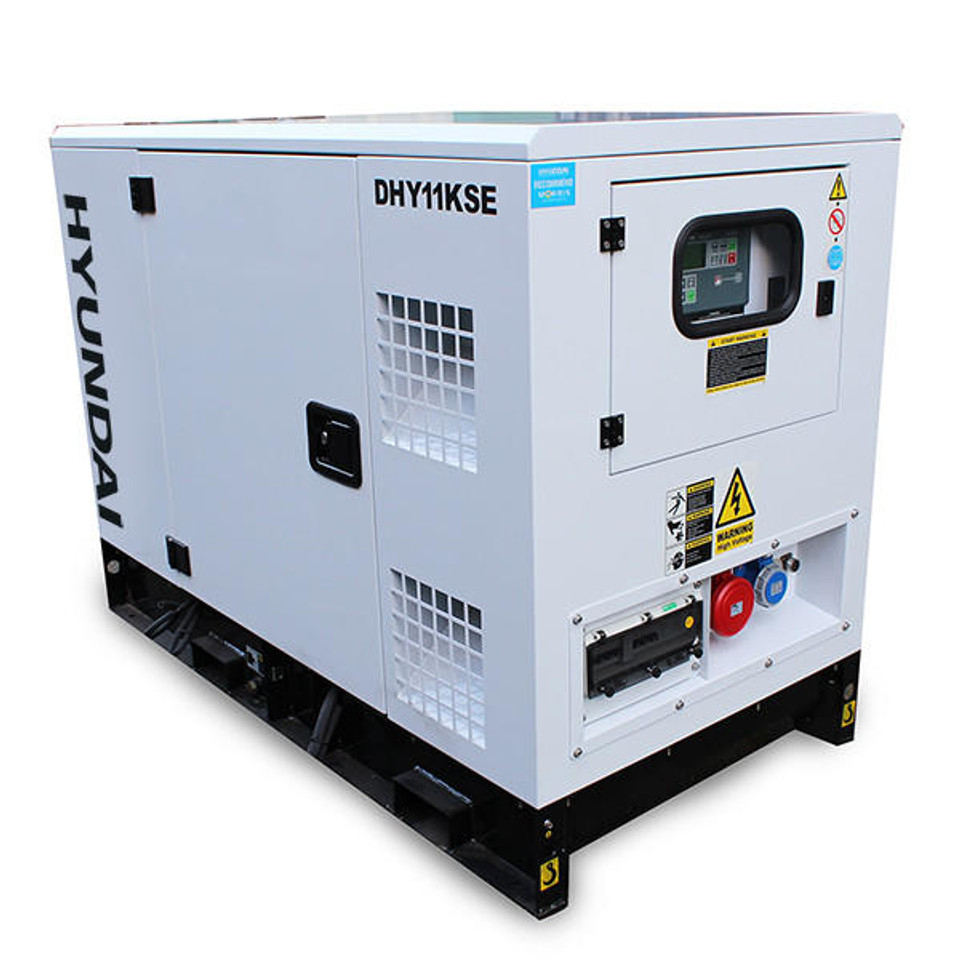

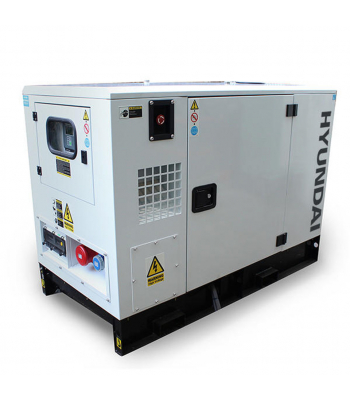

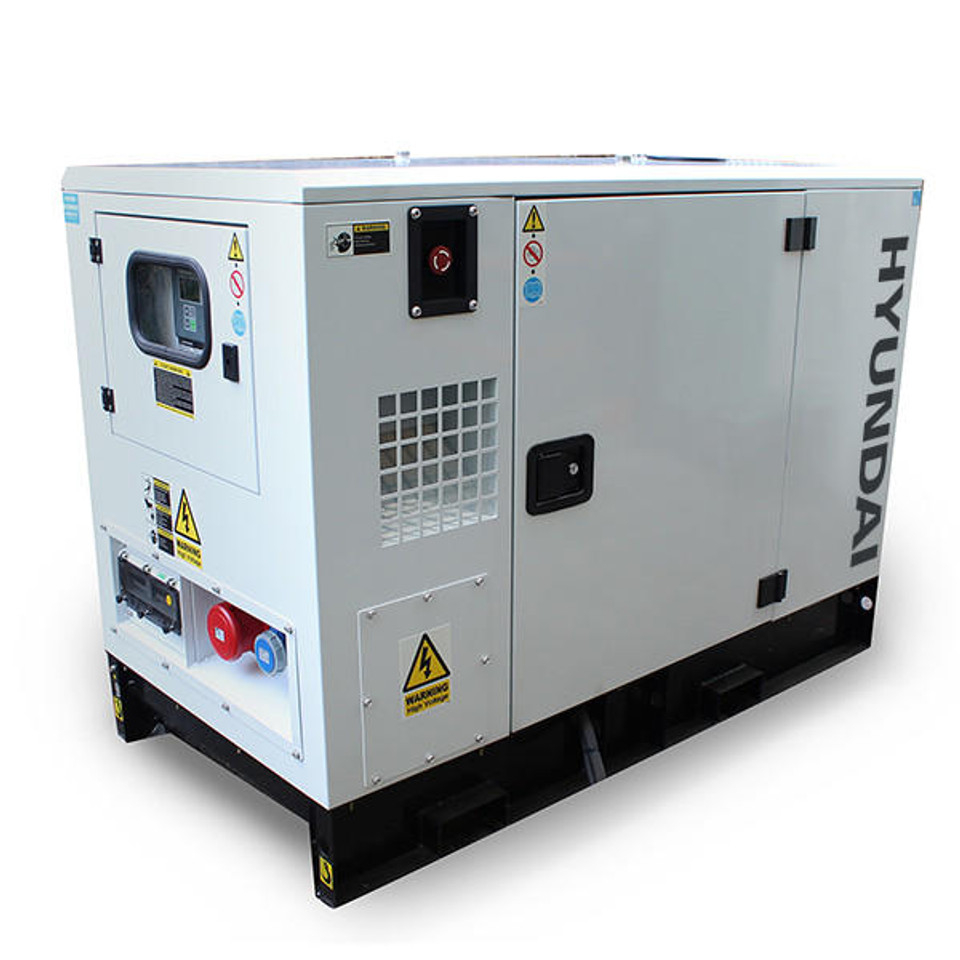

A popular choice for factory and business standby, the Hyundai DHY11KSE is a 'silent' diesel generator with an 11kVA 3-phase output. A 1500rpm machine, meaning the engine revs are lower than a typical standby generator, improving the lifespan and economy of the unit as a whole. The DHY11KSE has a fully enclosed weatherproof canopy. The base fuel tank can easily be filled from outside the machine and features like emergency stop, battery isolator, brushless, AVR (Automatic Voltage Regulator) alternator and forklift pick up slots make it a very easy to use generator.

Designed to be used as stationary generators for standby or prime power supply, the DHY11KSE is a popular generating set. The Hyundai 1500rpm range has a series of standard features including a maintenance free AVR and 2-wire remote start functionality to allow easy installation of remote starting. An electric key-start unit with an intelligent control panel system, it has a large fuel tank to help keep the generator running for extended periods.

The overall running and lifespan of the DHY11KSE are helped by the 1500rpm engine, which runs at typically half the rate of revs that a standard diesel generator engine will run, this keeps the engine speed down, increasing the life expectancy and the overall economy of the generator, as well as having an impact on the running noise levels, keeping them low.

Automatic Transfer Switch Packages Package Includes Cable Length
1500ATS4P-1 Three phase, 4 pole 100amp, ATS panel, ATS plug, comms cable, batt charger 10 metres
1500ATS4P-2 Three phase, 4 pole 100amp, ATS panel, ATS plug, comms cable, batt charger 15 metres
1500ATS4P-3 Three phase, 4 pole 100amp, ATS panel, ATS plug, comms cable, batt charger 20 metres
ATS100-3 Three phase, 4 pole 100amp ATS panel only

Dimensions (mm) Length 1500 x Width 760 x Height 1070
Rated Power (kW/kVA) 8/10
Max Power (kW/kVA) 9/11
Frequency 50
Voltage(s) 230, 400
Controller IL-NT MRS 10
ATS Port INCLUDED
Battery (Ah) 1X12V - 36Ah
Fuel Capacity (L) 42
Cooling Fluid Volume (L) 10
Fuel Consumption (l/h) 1.8 / 3.5
Engine Model HY380
Power Output (hp) 11
Rotate Speed 1500 RPM
Speed Regulation MECHANICAL
Displacement 1357
Oil Capacity (L) 10
Alternator AVR
Power Factor (Cosφ) 0.8
Low Oil Pressure Yes
Block On Startup Yes
Low Battery Yes
High Temperature On Water No
Low Oil Level Yes
Low Running On Engine Yes
Emergency Stop Yes
N.G. (kg.) 460
Noise @ 1m 92
Noise @ 7m 65
Capacity (units/container) 20/20GP;40/40GP;40/HQ
