Manufacturer: Hyundai
Warranty: Click here for info
3 YEAR WARRANTY for all portable power products except:
2 YEAR WARRANTY for Air Compressors, Welders, Robotic Lawnmowers
2 YEAR WARRANTY for all 1500rpm Diesel Generators, subject to service records and maximum 500h/year (See separate warranty terms).
1 YEAR WARRANTY on all 3000rpm air-cooled diesel products, maximum 1000h.
All of the Hyundai products are covered by a manufacturers warranty covering both faulty materials and faulty workmanship, it does not cover general wear and tear or damage. This excludes products or parts of products that are consumables or that become faulty to due to general wear and tear.
In terms of a faulty item being replaced, fixed or refunded, Hyundai Power Equipment is only a reseller of any goods or services received through our website, therefore an individual product's warranty would be subject to the supplier's terms and conditions and will be maintained by the company of origin. Hyundai Power Equipment will be happy to help you contact those companies who will maintain your products individual warranty, however, we are not responsible for any product directly.
Price: (£6,249.98 ex VAT) £7,499.98 (inc VAT)

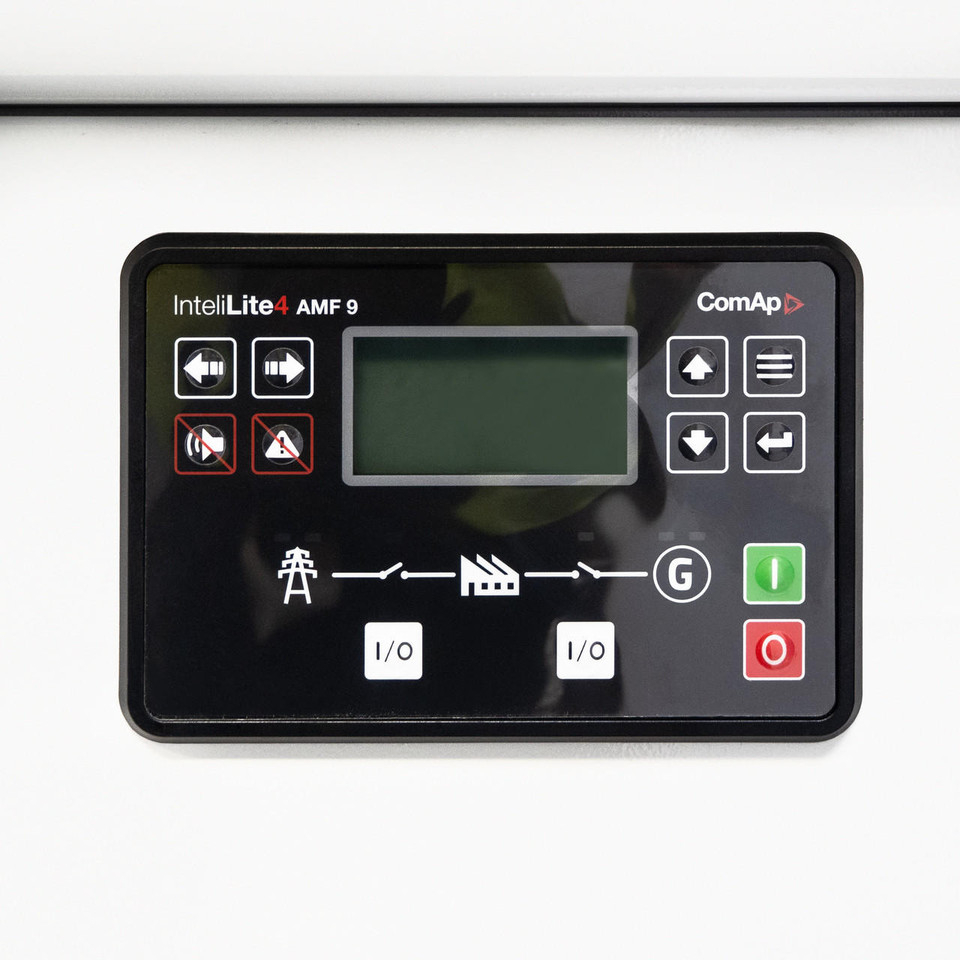

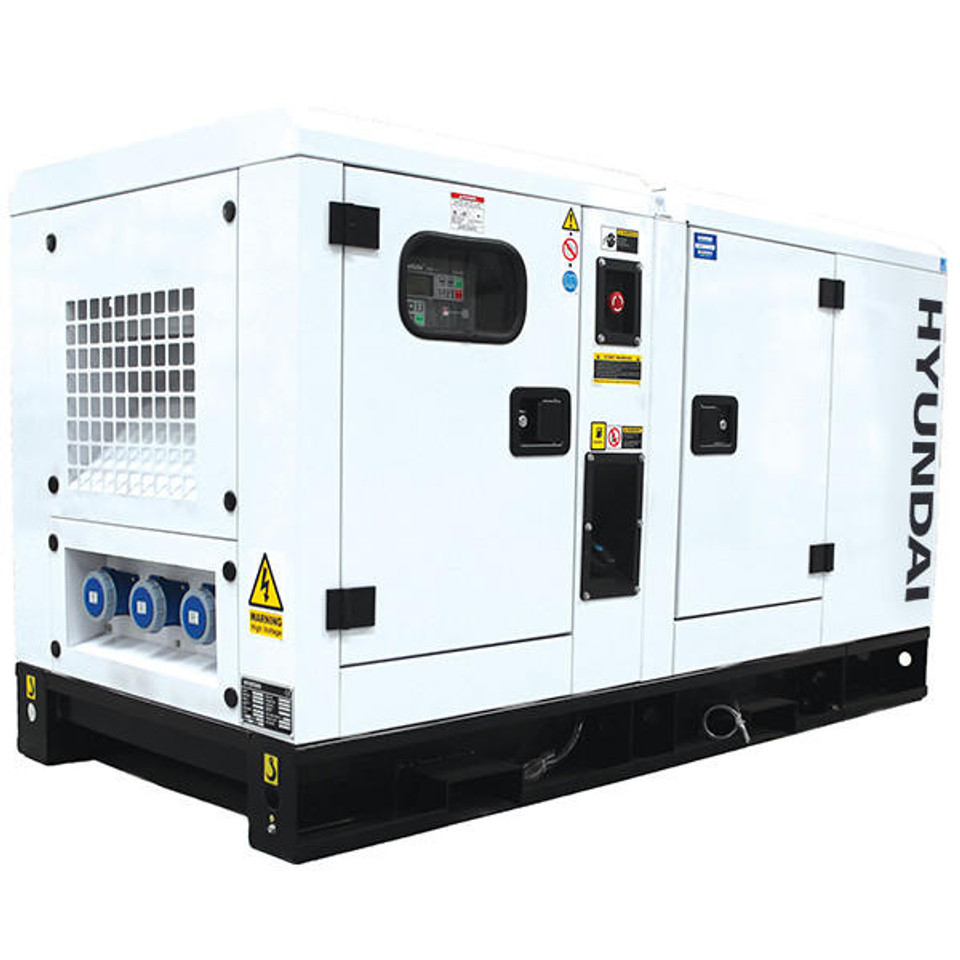

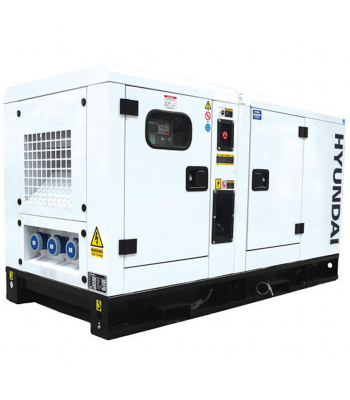

7499.98 2024-12-20The DHY22KSE is a 22kVA diesel generator running at a frequency of 50Hz. It has a weather and soundproof canopy which encloses the generating set on a solid base. The canopy has excellent acoustic properties, and coupled with a large exhaust and low-revving engine, it helps to keep noise levels to an absolute minimum. The canopy also protects the generator internals from the elements. An MRS 10 Intelilite control panel with its intuitive interface gives the user an unprecedented level of control over numerous variables including the voltage and current, as well as oil pressures and the engine running hours.
Equipped with an AVR alternator for smooth voltage output, this helps to reproduce power as close to mains supply as is possible, meaning this generator is safe to run even the most sophisticated of expensive or delicate power equipment, or power important elements of the home or business without issue.
A three phase machine, it produces an overall output of 18kW, which amounts to 22kVA, split between three poles. Like other models in the 1500rpm range of diesel generators by Hyundai, it has a large fuel tank for extended running, it also has a low fuel level warning and cut out for added safety, as well as another key feature in the air pre-heating system for easy starting.
| Dimensions (mm) | Length 1900 x Width 900 x Height 1110 |
| Rated Power (kW/kVA) | 16 / 20 |
| Max Power (kW/kVA) | 18 / 22 |
| Frequency | 50 |
| Controller | IL-NT MRS 10 |
| ATS Port | INCLUDED |
| Battery (Ah) | 1X12V-60Ah |
| Fuel Capacity (L) | 77.5 |
| Cooling Fluid Volume (L) | 10 |
| Fuel Consumption (l/h) | 3.3 / 6.0 |
| Engine Model | HY490 |
| Power Output (hp) | 21 |
| Rotate Speed | 1500 RPM |
| Speed Regulation | MECHANICAL |
| Displacement | 2540 |
| Oil Capacity (L) | 1500 RPM |
| Alternator | No |
| Power Factor (Cosφ) | 0.8 |
| Voltage Regulation | AVR / BRUSHLESS |
| Low Oil Pressure | Yes |
| Block On Startup | Yes |
| Low Battery | Yes |
| High Temperature On Water | No |
| Low Oil Level | Yes |
| Low Running On Engine | Yes |
| Emergency Stop | Yes |
| N.G. (kg.) | 710 |
| Noise @ 1m | 92 |
| Noise @ 7m | 65 |
| Capacity (units/container) | 6/20GP;12/40GP;24/HQ |
| Weight | 760kg |
