Price: (£7,083.32 ex VAT) £8,499.98 (inc VAT)

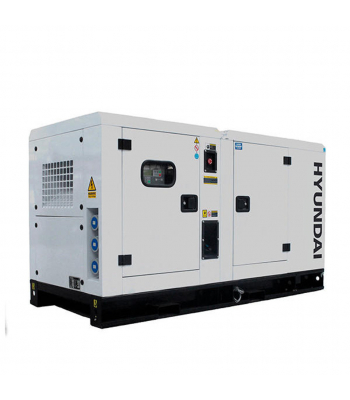

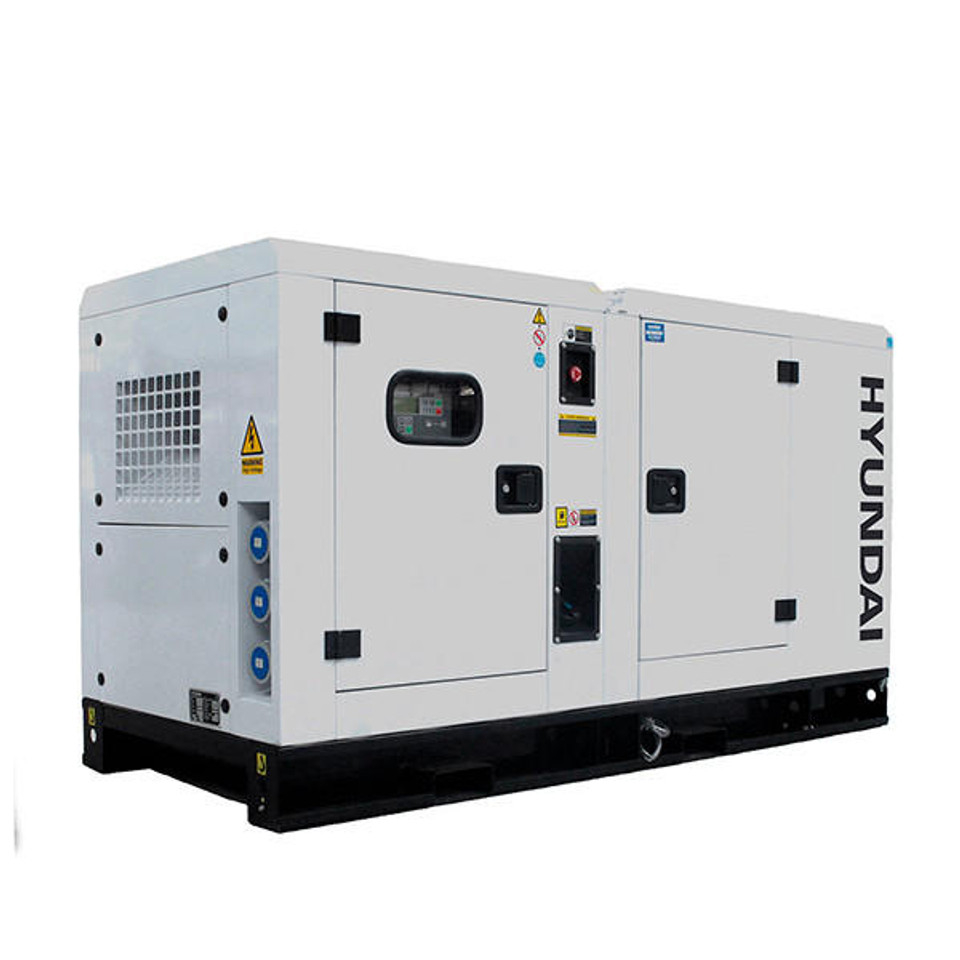

8499.98 2024-12-20This is the Hyundai DHY28KSE Three Phase 1500rpm Silenced Diesel Generator. With a maximum power output of 28kva and a continuous output of 25kva, this is an ideal generator for standby use which will not let you down. As well as emergency standby use, the DHY28KSE is also powerful enough to be used as a sole source of power applications.
The DHY28KSE has been cleverly designed, with ease of use and top quality performance in mind. For this reason, the DHY28KSE hosts many high spec technological features as well as all of the basics you would expect from a generator of this size. To aid a very long operating life, the DHY22KSE is powered by a 4 cylinder 4 stroke water cooled diesel engine, which runs at a very unstressed 1500rpm. This engine powers an AVR alternator, which allows the generator to give out a constant smooth voltage output. This allows you to power sensitive electrical equipment without the worry of the internal components and circuitry becoming damaged.
The DHY28KSE is protected by a hard wearing external canopy, which protects the generator from the very worst of British weather. As well as this, this external canopy keeps noise levels to an absolute minimum, allowing the generator to have an incredibly low noise level of 28db at 7m.

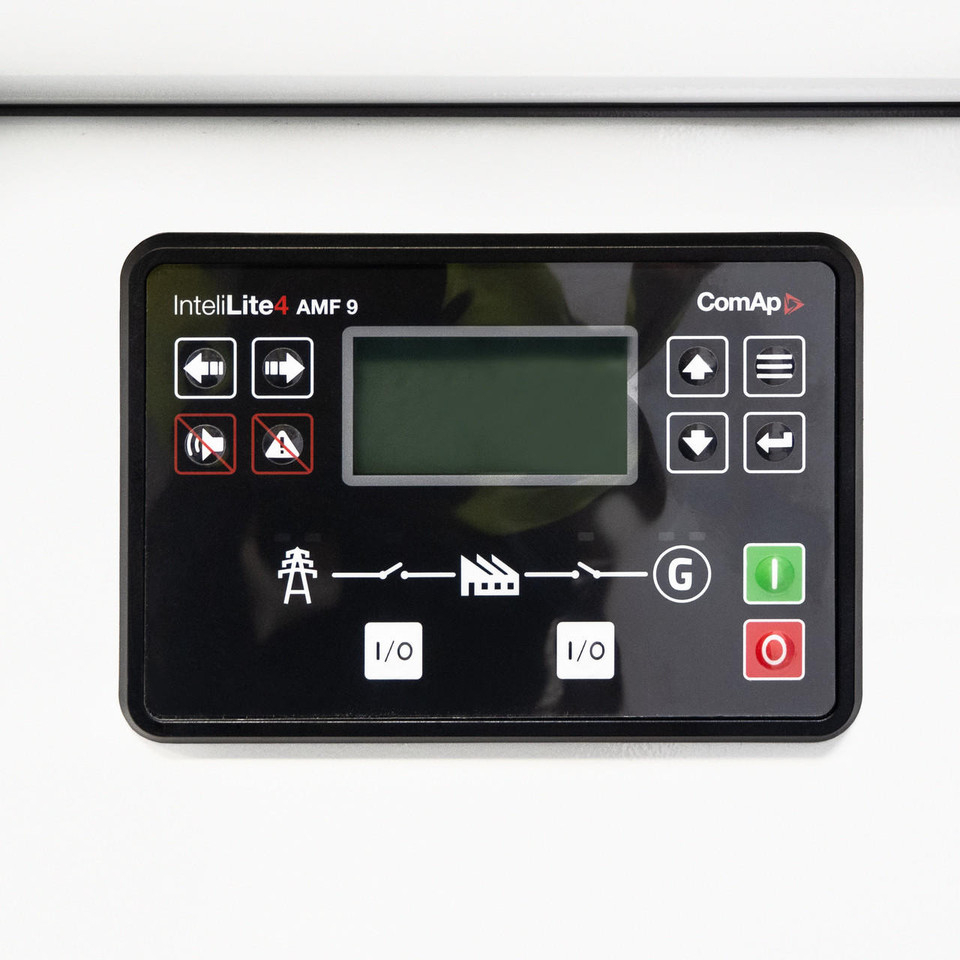

Control of the generator is provided by the ComAP MRS 10 Control panel. Proving the operator with control over several variables as well as providing details on several operating parameters.

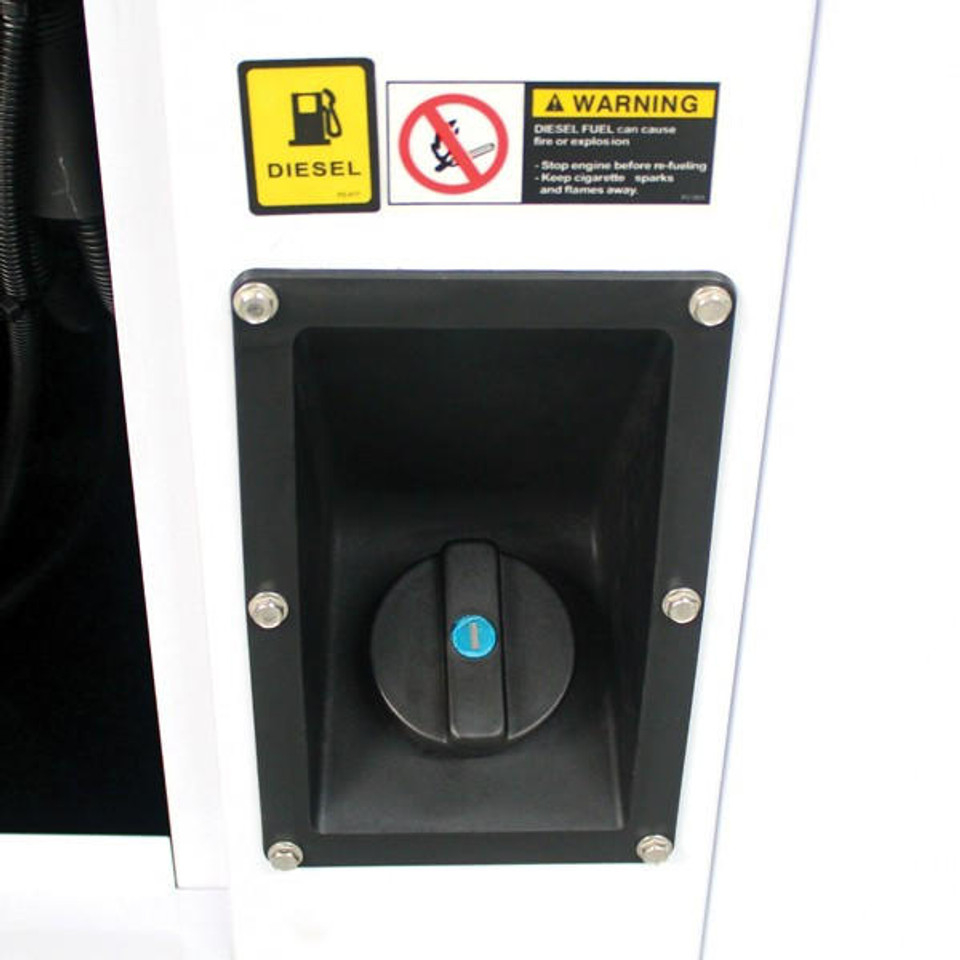

The skidebase of the machine houses a 93 litre fuel tank as well as providing forklift holes for aiding transport and placement. Lifting eyelet lugs on the roof of the machine are also provided for lifting.
| Weight: | 880kg |
| Rated Power (kw/kVA) | 20/25 |
| Max Power (kw/kVA) | 22/28 |
| Frequency (Hz) | 50 |
| Voltage (v) | 230/400 |
| Current (A) | 36 |
| Controller | IL-NT MRS10 |
| ATS Port | Included |
| Battery (Ah) | 1X12V-60Ah |
| Fuel Tank Capacity (l) | 93 |
| Cooling Fluid Volume (l) | 10 |
| Fuel Consumption (l/hr 50/100% load) | 4.5/7.7 |
| Running Time (hr 50/100% load) | 21/12 |
| Noise Level (dB @ 7m) | 68 |
| Engine Model | HY4100 |
| Power Output (kw/1500rpm) | 27 |
| Rotate Speed (rpm) | 1500 |
| Speed Regulation | Mechanical |
| Starting Method | Electric |
| Displacement (cc) | 3298 |
| Oil Capacity (l) | 15 |
| Alternator | 184F |
| Power Factor (Cosφ) | 0.8 |
| Voltage Regulation | AVR / Brushless |
| Low Oil Pressure | Yes |
| Block on Start Up | Yes |
| Low Battery | Yes |
| High Temperature on Water | Yes |
| Low Oil Level | Yes |
| Low Running on Engine | Yes |

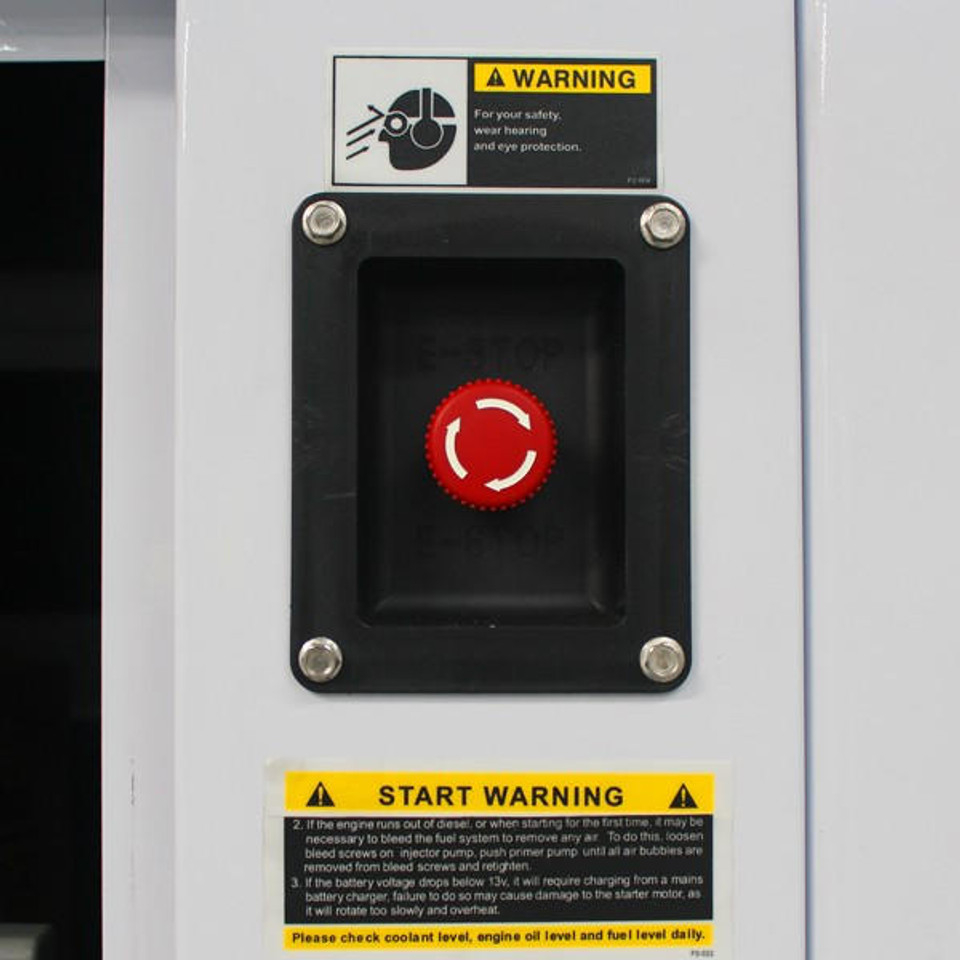

| Emergency Stop | Yes |
| Weight (kg) | 880 |
| Dimensions (mm) | 2200 x 950 x 1300 |
