Price: (£7,916.65 ex VAT) £9,499.98 (inc VAT)

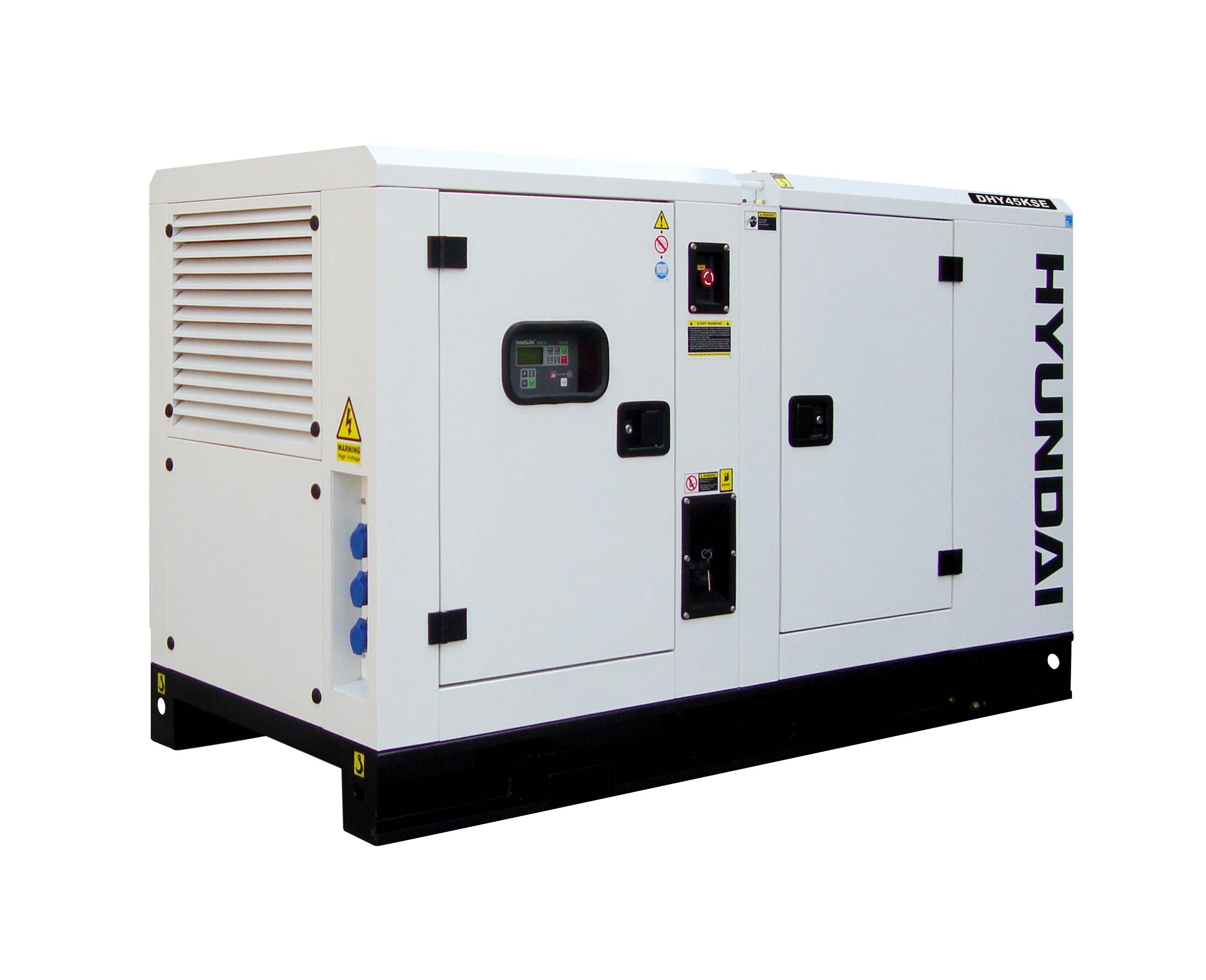

9499.98 2024-12-21The DHY45KSE is a 3 phase diesel generator with a maximum output of 45VA split across three phases. Equipped with a 4 cylinder 4 stroke water-cooled slow running 1500rpm engine, this machine is built to give you years of reliable service. It has 3 32A 230v outut sockets, utilising one of each of the three poles available, whilst being able to provide smooth and reliable 415v three phase power directly from the buzz bar. The smooth voltage output provided by the AVR alternator is ideal for home and business emergency standby backup use as well as round the clock sole source of power applications.
The exterior canopy is prefitted with lifting lugs and the base of the unit is designed to accept a forklift to help with transport and placement. Designed to protect your machine from the worst of the elements you can rest assured that this machine will provide years of reliable service.
It's interactive control panel interface is fitted as standard, and its user friendly interface gives fingertip control over several operating parameters as well as providing information statistics relating to engine, output and generator running parameters. With a maximum of 45KVA being able to be drawn per phase, providing the phases are balanced when being drawn, this machine will be ample for use on workshops and medium-sized businesses, providing all the power needed to run a varied range of equipment.
| Dimensions (mm) | Length 2200 x Width 950 x Height 1310 |
| Rated Power (kW/kVA) | 32 / 40 |
| Max Power (kW/kVA) | 33 / 45 |
| Frequency | 50 |
| Voltage(s) | 230, 400 |
| Controller | MRS10 / Deepsea |
| ATS Port | INCLUDED |
| Battery (Ah) | 1x12V-60Ah |
| Fuel Capacity (L) | 93 |
| Cooling Fluid Volume (L) | 25 |
| Fuel Consumption (l/h) | 7.2 / 12.8 |
| Engine Model | HY4105 |
| Power Output (hp) | 35 |
| Rotate Speed | 1500 RPM |
| Speed Regulation | MECHANICAL |
| Displacement | 4100 |
| Oil Capacity (L) | 9 |
| Alternator | AVR |
| Power Factor (Cosφ) | 0.8 |
| Voltage Regulation | AVR |
| Low Oil Pressure | Yes |
| Block On Startup | Yes |
| Low Battery | Yes |
| High Temperature On Water | Yes |
| Low Oil Level | Yes |
| Low Running On Engine | Yes |
| Emergency Stop | Yes |
| N.G. (kg.) | 990 |
| Noise @ 1m | 92 |
| Noise @ 7m | 65 |
| Weight | 1050kg |
