9999.98 2024-12-21Key Features

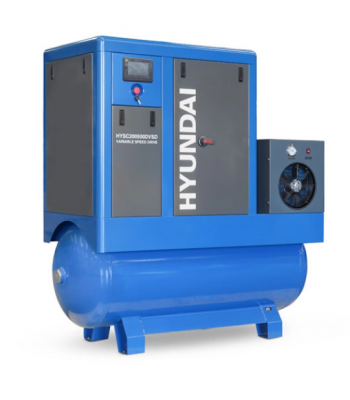

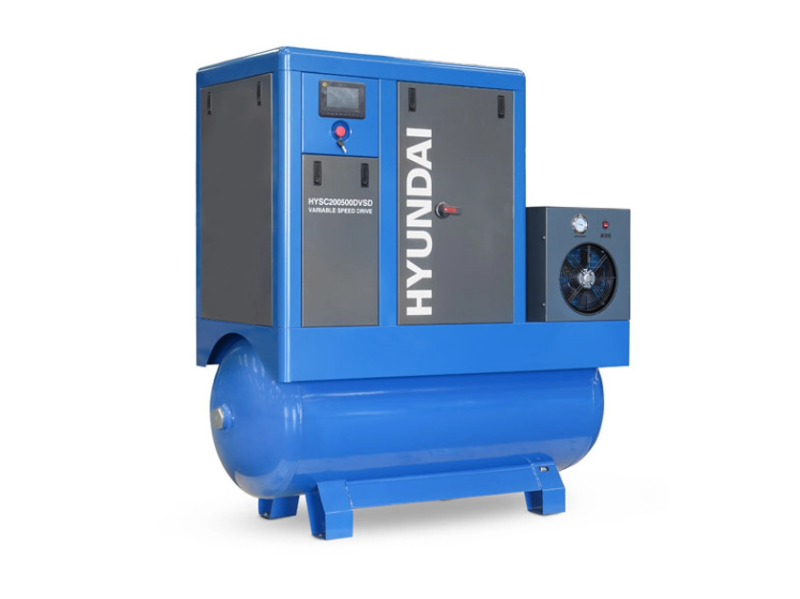

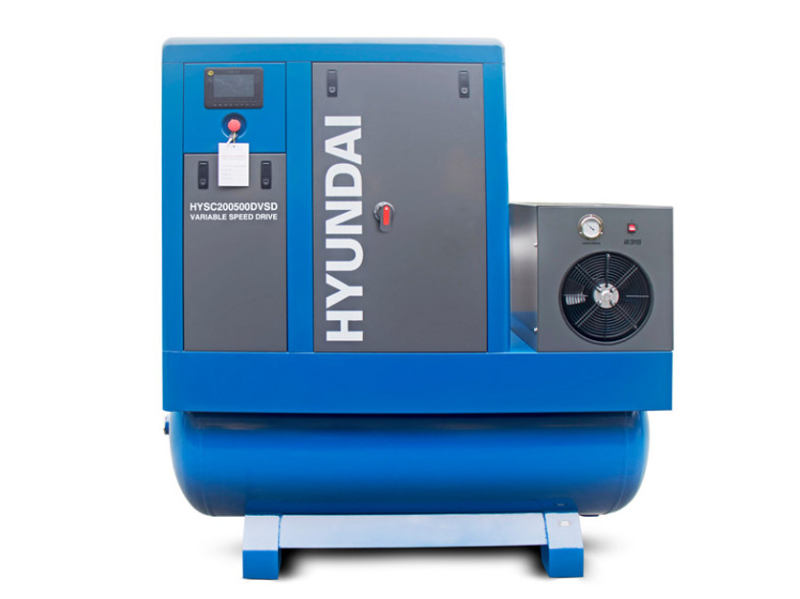

Our all-in-one Hyundai HYSC200500DVSD integrates a power screw compressor, refrigerated air dryer and air receiver tank, providing a complete solution to produce clean and dry compressed air.
This Hyundai screw air compressor with dryer features a large 500L tank and powerful 20hp motor, producing an impressive 145psi / 10bar output.
Our HYSC200500DVSD 500L air compressor has been designed and built with high-quality components including our reliable refrigerant compressor and large, durable heat exchanger, making this compressor one you can rely on for years to come.

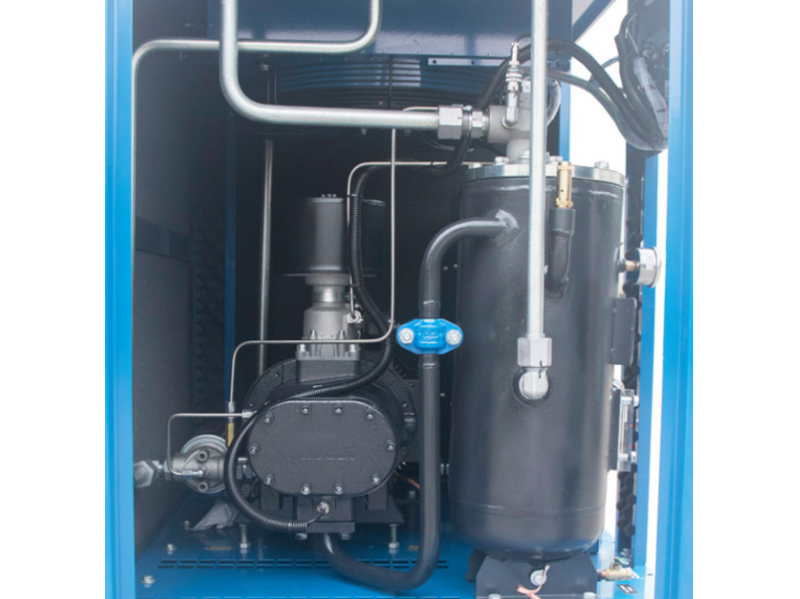

This air compressor comes fitted with an extra-large oil and gas separator system, which improves the efficiency of the way any oil is removed from the air supply, making the output less than 3ppm.
Unlike other models, our VSD model compressors boast a variable speed drive, meaning these air compressors match the output to the air flow required thanks to an in-built high-performance frequency converter, which carries out real-time vector calculations to keep the supply stable.
As the air compressors are not working at maximum levels at all times, this is more economical and also lengthens product lifespan too, meaning less maintenance is required and thus more savings for you.
The Hyundai HYSC200500DVSD Air Compressor is so simple to install - all you need to do is to connect the outlet and drain pipes and plug it in and your compressed air supply is ready to use!
This powerful screw air compressor comes fitted with a 7” colour, touch-screen monitor, which monitors usage, but also comes with a range of integrated safety features including maintenance alerts and reminders, and will automatically shut itself down if left unattended for 24 hours.
This air compressor is ideal for range of different environments, including spray shops, tire-fitting garages, large workshops, small factories, etc.
The HYSC200500DVSD comes with a 2 year Hyundai warranty with full UK parts and service backup for added peace of mind.
| Model | HYSC200500DVSD |
|---|---|
| Start Method | Electric |
| Fuel Type / Power Source | Electric Hard Wired |
| Drive Type | VSD Direct Drive |
| Tank Capacity (L) | 500 |
| Tank Material | Steel |
| Duty Cycle | S1 100% |
| Cut-In Pressure (psi/bar) | 101.5/7 |
| Cut-Out Pressure (psi/bar) | 116/11.5 |
| Discharge Pressure (psi/bar) | 145/10 |
| Max Pressure (psi/bar) | 145/10 |
| Air Flow FAD (L/min) | 1995 @ 8 bar / 18140 @ 10 bar |
| Air Flow FAD (CFM) | 75 @ 8 bar / 61 @ 10 bar |
| Air Displacement (L/min) | 2100 @ 8 bar / 1910 @ 10bar |
| Air Displacement (CFM) | 67.5 |
| Air Outlet Connection | G3/4 |
| Outlet Pressure Regulation Type | Fixed |
| Phase | Three |
| Rated Power (kW) | 17 |
| Motor Power kW/hp | 15/20 |
| Pump (RPM) | 2700 |
| Speed (RPM) | 2700 |
| Frequency (Hz) | 50 |
| Noise Level @ 7m (dB) | 65 |
| Integral Air Dryer? | Yes |
| Gross Weight (kg) | 570 |
| Net Weight (kg) | 510 |
| Fully Assembled Dimensions (H x W x L) (mm) | 1685 x 700 x 1750 |
| Packaged Dimensions (H x W x L) (mm) | 2040 x 940 x 2100 |
| Product Type | Air Compressor |
| Warranty (years) | 2 |
| Model EAN | 5059608206548 |
| In The Box | Air Compressor & User Manual |
