The Imex rotating laser level range has been specified by our construction trained team, designed by industry professionals and proven in all conditions to perform a vast range of levelling tasks in an efficient and accurate manner. With self-levelling, grade slope function, scan mode, horizontal and vertical, remote controller and re-chargeable lithium-ion batteries the Imex range represents excellent value with versatile capabilities for a full range of construction functions.

Combined with this is the highly visible heavy duty and robust, water and dust-proof case, with a fully enclosed laser diode for years of trouble-free use. A sensor based self-levelling system utilising a level sensor and stepping motor gives excellent levelling ability and enhanced accuracy. The simplified design elements and robust componentry also mean reduced calibration and service requirements. All backed by Imex warranty, service and innovative approach.

Features
Robust construction tough horizontal laser level.
9Ah lithium-ion battery - approx. 40 hours run time. USB quick charge port with car charger.
Self levelling (electronic). 600m range, includes standard detector.
Imex 5 Year Warranty.
Calibration Certificate.
LRX10 Digital Detector in mm reading.
90mm Detector reading ultra fine, fine, medium, course and ultra course.
Fast and accurate set-up time. Re-sets if unit is bumped or moved.
Grade Slope to 50 (8.8%) - Manual grade setting for slopes. Ideal for pipe layout or concrete slab falls.
Accuracy – +/- 1.5mm @ 30 metres for excellent results every time.

Technical Data
Self Levelling Range: +/-5°.
Working Distance: 600m Diameter.
Function: Horizontal.
Scan Mode: No.
Slope Mode: Yes - Single manual grade to 5° 8.8%.
Accuracy: 1.5mm @ 30m.
Rotation Speeds: 0, 60, 120, 300, 600 rpm.
Waterproof/Shockproof: IP66.
Light Source: Red laser diode, 635nm Class II.
Power: 9 Ah 3.7v lithium-ion.
Detector: LRX10 Double Sided.
Working time - continuous use: 40 hours approx.
Charging Time: 4 hours in unit or removed from unit.
USBC Charging: Yes; including 12v car charger.
High Wind Sensitivity Re-set: Yes.
Remote Control: Yes, iCR7.
Weight - Unit Only: 2.48kg.
Detector - German Made: LRX10 Double Sided.
Detector - Pick Up: 90mm -30mm to +60mm.
Detector Reading: Ultrafine - 0.5mm, Fine - 1.0mm, Medium - 2.0mm, Course - 5.0mm, Ultra Course - 10.0mm.
Detector Power: 1-AA > 50 hrs run.

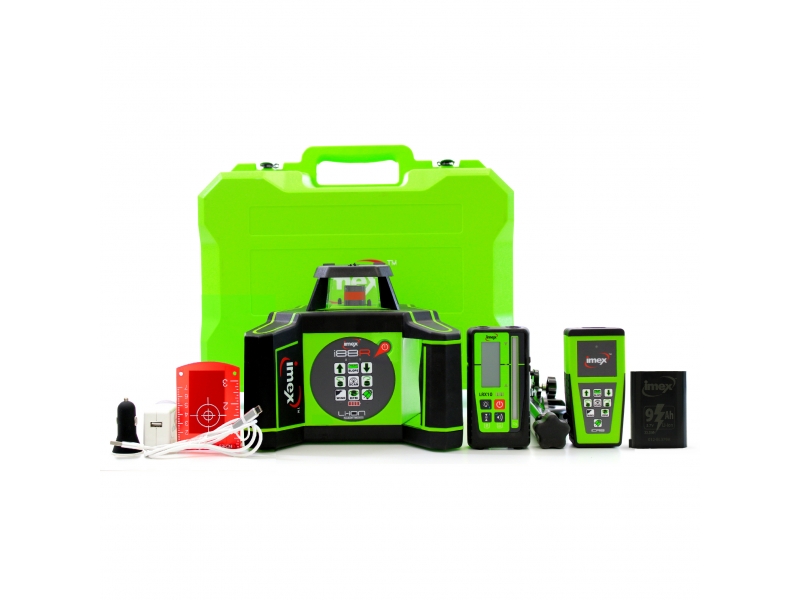

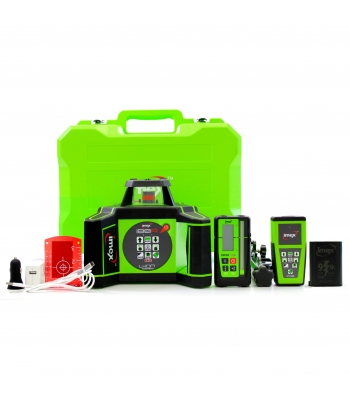

Kit Includes
i88R Rotating Laser Level.
LRX10 Detector With Bracket.
Remote Control Unit.
Tripod.
Staff.
USB Cable.
9.0Ah Lithium Battery.
Car Charger.
Target Plate.
Hard Carry Case.
