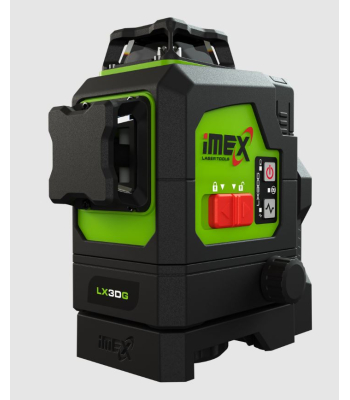

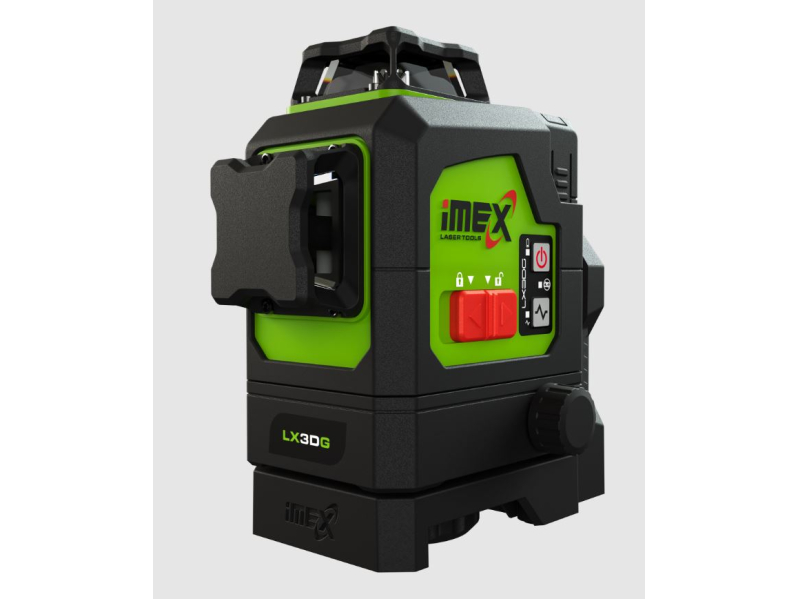

IMEX LX3DG Green Beam Multi Line Laser

The Imex LX3DG Series 2 is a multiline laser level with everything. Now with PreciseALIGN™ fine adjustment to get that perfect 90-degree set out. With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks. Series II features an all-new quick release lithium battery platform, compatible across all Series II LX models, plus new rubberised housing for a comfortable, non-slip grip.

Supplied with 2x 5.2Ah Lithium Battery, 1x USB-C Charger Cable, 4x Plug Adapters (UK / European / US / Australian), 1x Magnetic Bracket, 1x Magnetic Target Plate packed in a 1x Hard Plastic Carry Case.

APPLICATIONS

• Shop fitting and cabinet installation
• Wall and floor tiling
• Wall partitions
• Electrical switch and light placement
• Steel fabrication alignment and set out
• Interior decorating
• Window and door placement

NEW SERIES 2 FEATURES

• NEW PreciseAlign™ fine adjustment to pivot laser
• NEW 5.2Ah lithium battery pack – swaps to all LX series II models.
• NEW rugged housing with non-slip rubberised moulding

FEATURES

• 360 degree horizontal and vertical laser lines
• Ultra visible green beam technology
• Pulse mode to work with laser detector
• 360 degree turntable and magnetic bracket
• Self levelling

SPECIFICATION

• Self Levelling Range: 4° ± 1
• Out Of Level Indication: Laser blinks on/off
• Laser Accuracy: ±3mm @10m
• Laser Class: Class 2
• Laser Wavelength: 520 ± 10 nm
• Laser Distance: 20m light-dependent
• Laser Distance With Optional Detector: 50m
• Laser Fan Angle -Lines: H 360°  V 360°
• Power Source: 5.2 Ah lithium-ion
• Charging Type: USB-C
• Run Time All Beams & Dots: 6 hrs
• Control Switch: 1 button, pendulum lock
• Unit Adjustment: Precise align, fine adjustment screw
• IP Rating: IP54
• Operating Temperature: -10° to +50°C
• Storage Temperature:  -20° to +70° C
