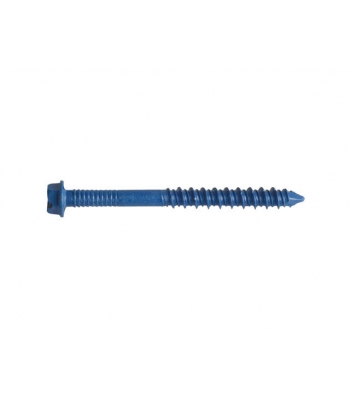

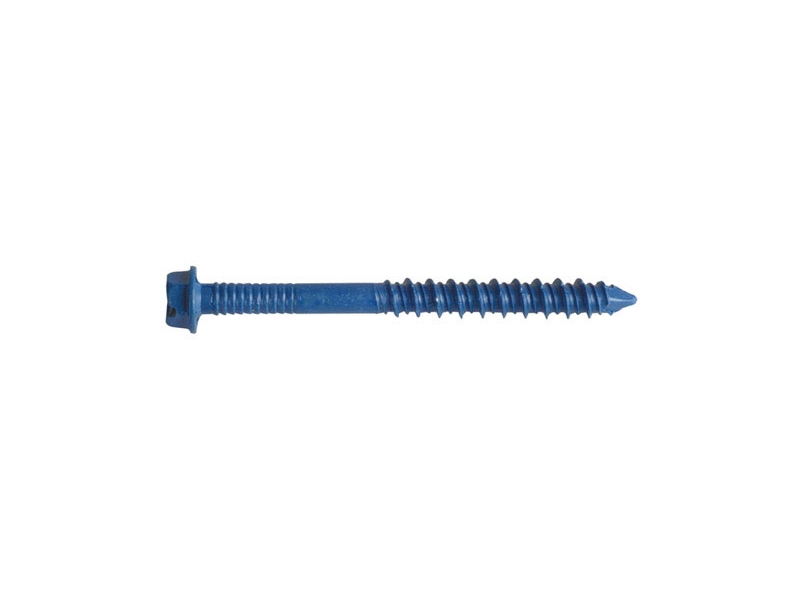

ITW SPIT 921498 Tapcon Hex Head 5 x 32mm Screws x 100

ITW SPIT 921498 Tapcon Hex Head 5 x 32mm Screws x 100

£5.95 UK Mainland Delivery for orders under £50 ex. VAT

Available (Estimated Delivery Time 2 Working Days)

Nationwide Delivery
Order now for delivery on
Tue 26th Nov 2024

Quote Ref: @72250

Product ID: itw_921498

Related Products: See all related products

Price: (£9.95 ex VAT) £11.94 (inc VAT)

11.94 2024-12-21
Got a question? E-mail a friend
Error! Sorry there has been a problem adding your items to the cart.
151 people have bought this item!

ITW SPIT 921498 Tapcon Hex Head 5 x 32mm Screws x 100

Features

  • Fast installation, Drill, Drive, Done
  • Available in M5 and M6 and in lengths from 32 - 125mm, to cover a wide number of applications
  • Replaces small diameter expansion anchors, plugs and screws in light to medium duty applications
  • No need to pre-spot holes, no inserts are required
  • Removable and adjustable
  • Can be installed close to edges
  • Slotted Hex and Phillips flat head styles give flexibility in applications
  • Excellent corrosion protection
  • Fire resistant

Substrates

  • Concrete
  • Masonry
  • Blockwork
  • Pre-cast hollow concrete beams
  • Wood

Applications

    pplications:
    Fixing Electrical Accessories
  • Saddles
  • Conduit clips
  • Back boxes
  • P Clips
  • Cable clips
  • Cable cleats
    Services
  • Ductwork
  • Cable trays, channel
  • Suspended ceilings
  • Site barriers
  • Temporary safety rails
  • Security fencing
    Steel and Concrete Applications:
    Timber to Concrete
  • Formwork
  • Battens
  • Base plates
  • Plywood backer boards
    Metalwork
  • Steel framing systems
  • Railings, hand rails
  • Brackets and signs
  • Fire protection
  • Insulation systems to masonry

Substrates

1. With Condrive Sleeve off and drill bit exposed, drill pilot hole 10mm deeper than recommended anchor embedment. Snap correct nut setter / drive bit onto end of Condrive Sleeve. Slide Condrive Sleeve over drill bit.
2. For Hex Head, insert head of Tapcon anchor into nut setter. For Countersunk, insert drive bit into head of Tapcon anchor.
3. Ensure the drilling tool is not set to hammer action during installation.
4. Put point of anchor into pre-drilled hole and drive until anchor is fully seated.

Specifications

Head Style : 6.5mm Hex
Thread Diameter : 5mm
Thread Diameter : 5mm
Length : 32mm
Min Embed : 25mm
Hole Diameter : 4mm
Min Hole Depth : 35mm
Fixture Thickness : 0 - 7mm
Box Qty : 100
