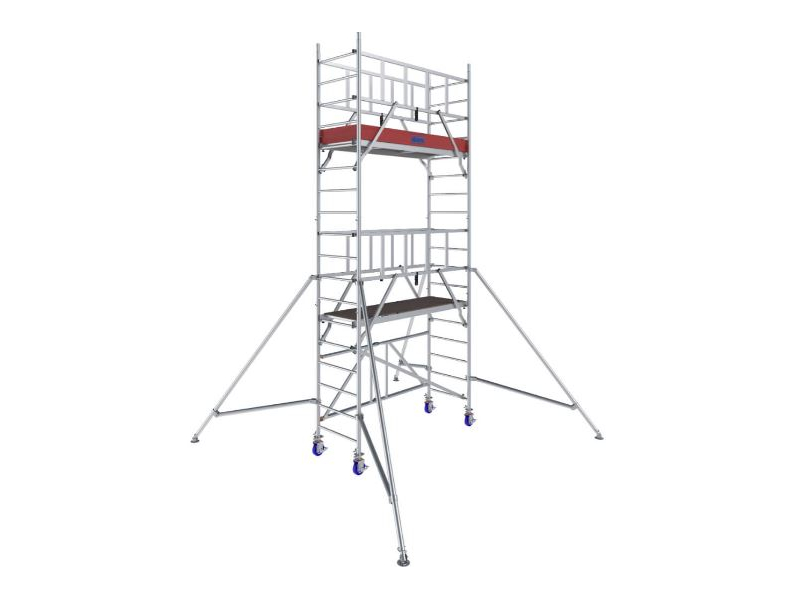

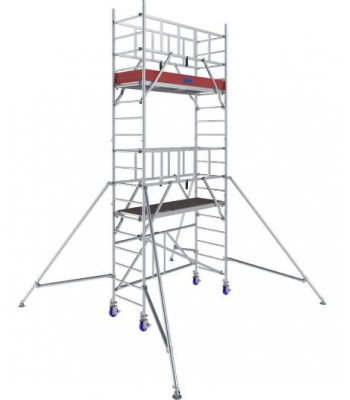

KRAUSE PROTEC XS FOLDING AGR MOBILE SCAFFOLD TOWER Working Height 4.7m - Code 949776

The Krause ProTec XS folding advanced guardrail mobile scaffold tower is a flexible and quick to build tower.

Up to 45% decrease in build time compared to the standard 3T method, the tower doesn’t save time, it increases safety.

The AGR method allows you to install guardrails before the platform is placed, never needing to work on an unprotected platform.

With platform length of 2m and platform heights of up to 9.7m, the ProTec XS is great for all jobs.

• Up to 45% decrease in build time compared to standard 3T build method
• The safe construction is ensured due to the advanced guardrail frames. The GuardMatic-system ensures the next level guardrails are installed before the platform is installed. When climbing through the next platform a complete railing and therefore a fall protection is available
• Basic pack with a platform height of 0.80 m can easily be moved through doors when fully assembled. The scaffold is extendable up to a working height of
• The integration of the diagonal braces into the GuardMatic-System guarantees  easy and safe assembly. For transport or storage the rail frame GuardMatic-System can be folded to a compact form to save space
• The 6-point fixation of the GuardMatic-System provides a maximum of safety in the height. Force-fit semi-automatic diagonal brace connections for easy, quick and safe erection
• The innovative structure of the diagonal braces ensures maximum floor space on the platform. The notched diagonal braces form around the frames to maximise space
• Maximum platform distance of 2 m for comfortable and safe erection without tools
• Safe internal ascent due to its slip-resistant rungs
• Two 1-meter vertical frames (included in the scope of every package) which can be connected to a 2-meter vertical frame enable maximum build height options
• The platform is made of weatherproof and slip-resistant phenolic resin plywood (2.00 m x 0.60 m)
• Braked castors to compensate differences in height on uneven grounds (height-adjustable from 1.7m platform height)
• Outriggers included in all packs 1.7m platform height and above
• TÜV-approved, suitable for a max. load of 200 kg/m² in accordance with DIN EN 1004-1

Load Rating - 200kg/m2

Material/s - Aluminium

Classification - EN1004

PLATFORM HEIGHT M - 2.7

WORKING HEIGHT M - 4.7

PLATFORM LENGTH M - 2.00

PLATFORM WIDTH M - 0.60

WEIGHT KG - 115
