Leica DA175 Signal Transmitter - Cable Avoidance

Undertaking any excavation will inevitably bring site workers into close proximity to underground utilities. Consideration should always be given to knowing the exact location of all buried utilities before and during the excavation process.

The SMART utility locator solution, including the DD230/220 cable locator series, DX Shield software and signal transmitters, is the only complete portfolio of detection solutions which allows users to detect buried utilities, transfer and access data remotely to a hosted service for multiple users, across multiple sites to manage site activities.

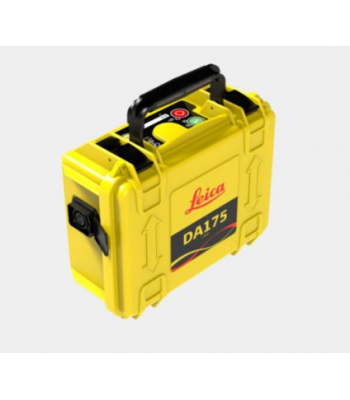

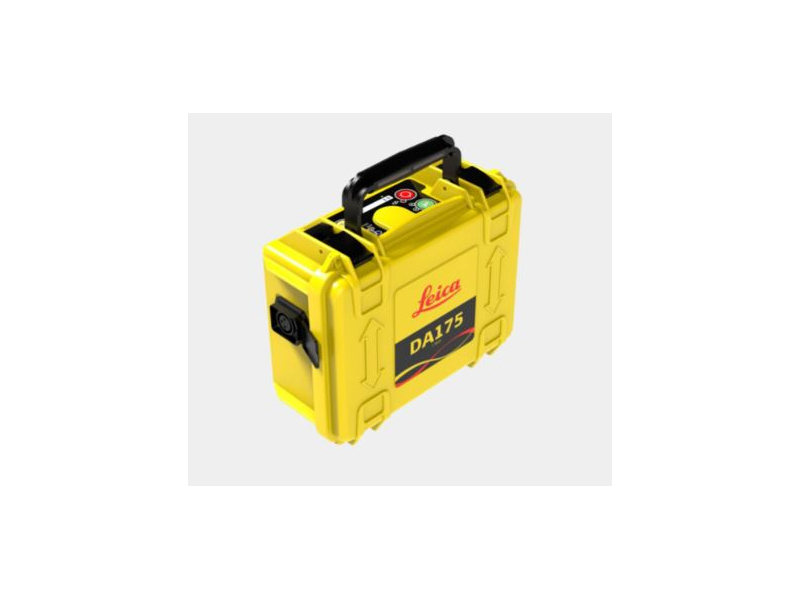

Leica DA175, 1 Watt Signal Transmitter incl. Li-ion battery and A100 charger, used to apply a trace signal to underground utilities. Features three trace frequencies, 8kHz, 33kHz and 131kHz with a variable power output level up from 1 Watt. to 3 Watts depending which product you choose.

Compatible with the Leica Detect DD220, DD120 locator range.

DA series signal transmitters

Mode	Output
Induction	Up to 1 Watt max.
Connection mode	Model dependent, up to 1 Watt or 3 Watt, when connected to a buried utility with an impedance of 300 Ohms
Operating transmission frequencies	131.072 (131) kHz32.768 (33) kHz8.192 (8) kHz512 Hz (DA230 series models)640 Hz DA230 series models)
Display panel	LED Indicators:Battery low indicatorConnection modeFrequency indicatorPower Output indicator
Keypad	4 membrane push buttons
Audio	85 dBA @ 30 cmInduction mode:Pulsed output with a differing rate for each frequencyConnection mode:Low - No output: pulsed output, differing rate for each frequencyGood Connection output: constant tone, pitch dependent on power output
Battery type	7.4 V Li-Ion pack
Typical operating time 3 Watt, 1 Watt	15 hours at power level 2 connection mode

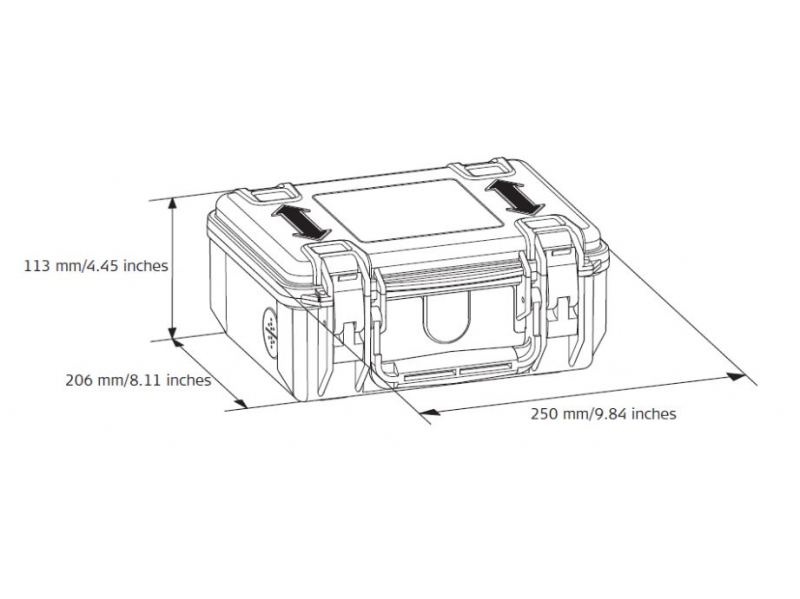

Dimensions	250 x 206 x 113 mm/9.84 x 8.11 x 4.45 inches
Weight (incl. standard accessories and batteries)	2.38 kg with Li-Ion
Temperature	Operating -20°C to +50°C, -4°F to +122°FStorage -40°C to +70°C, -40°F to +158°F
Protection against water, dust and sand	Conforms to IP67 lid open or closed
Humidity	95% RH non condensingThe effects of condensation are to be effectively counteracted by periodically drying out the product.
Approvals	CE, FCC

Charger

Description	A100 Lithium Ion Charger	A140 Lithium Ion Charger
Type	Li-Ion battery charger	Li-Ion battery charger
Input voltage	100 V AC-240 V AC,50 Hz-60 Hz	12 V DC
Output voltage	12 V DC	12 V DC
Output current	3.0 A	5.0 A
Polarity	Shaft: negative, Tip: positive.	Shaft: negative, Tip: positive.

Battery pack

Description	D Series Lithium-Ion Battery pack
Type	Li-Ion battery pack
Input voltage	12 V DC
Input current	2.5 A
Charge time	5 hours (maximum) at 20°C

Brand: Leica

Identifier: Leica_DA175
