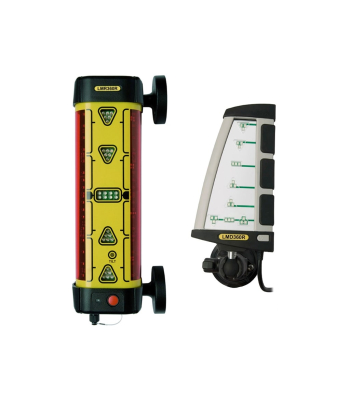

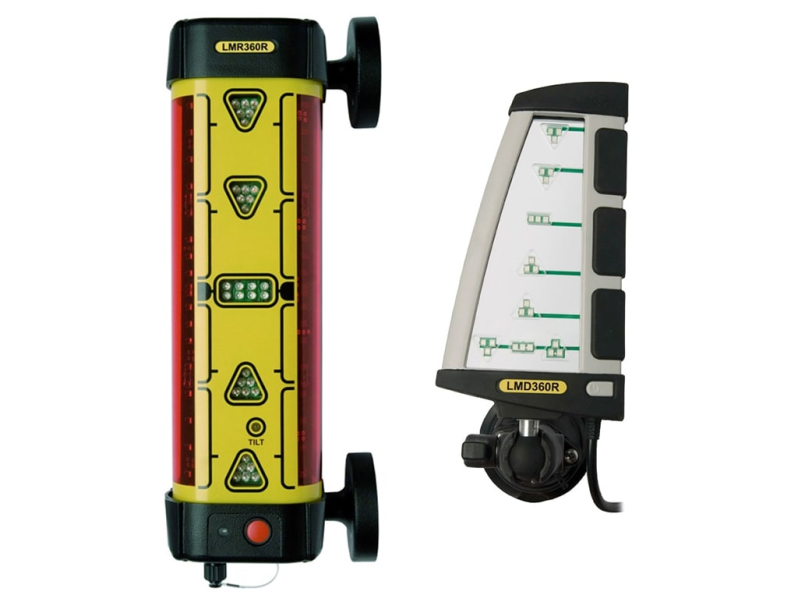

Leica LMR360R Receiver (868 MHz) - Includes Magnetic Brackets and LMD360R Remote Display (Catalog 6003353)

360° Machine Mounted Receiver

The LMR360R offers accurate grade information for all visual machine control applications. Large 360° detection windows pick up any rotating laser, from any angle. The built-in vertical indicator monitors the angle of the stick, signaling if it's plumb or under- or overextended. The vertical position ensures consistent and accurate grade readings, saving money by reducing over- or under-cutting. Large magnets allow quick mount and easy movement from machine to machine. Optional mounting clamp kit is also available.

LMD360R Remote Display

Clear remote display panel mounts to the windshield with a heavy-duty suction cup and won’t block operator’s view. Displays the 9 channels of the receiver, plus the vertical indicator arrows. It receives the information via wireless RF link (no cable needed). Both the receiver and remote have menus, enabling you to scroll through menu choices to change settings. All settings can be done through the remote display, without getting out of the cab. You can even turn off the receiver display from the remote, saving battery life. Choice of receiver channels: switch to the 2nd frequency if there are two systems on a job site.

• Includes receiver, magnetic brackets, charger, NiMH batteries, carrying case, manual, and LMD360R remote display
• Catalog number 6003353
• Accurate grade information for all visual machine control applications
• Large 360° detection window picks up any rotating laser, from any angle
• Built-in vertical indicator

Manufacturer Specs
