Leica Rugby 680 Alkaline/GP Rechargeable + RE160 (Tripod & Staff)

Available (Next Working Day Delivery (if ordered by 3pm))

Order now for delivery on
Thu 2nd Jan 2025

Quote Ref: @119467

Product ID: 6011160KIT

Related Products: See all related products

Manufacturer: Leica

Warranty: Click here for info

Price: (£1,130.95 ex VAT) £1,357.14 (inc VAT)

Available at checkout!

19 people have bought this item!

Categories Products

Leica Rugby 680 Alkaline/GP Rechargeable + RE160 (Tripod & Staff)

Bring simplicity to construction applications with the Leica Rugby 680 semi-automatic grade lasers. Designed for contractors who do mostly flat work but occasionally need to create single or dual slopes, Rugby 680 construction lasers are easy to use and effective in all levelling and grading tasks.

Product Highlights

Range 800m diameter
Digital slope in dual axis
Rotation 10 rps
Beam down & sleep mode
Grade range ± 8% DG
Accuracy 1.5mm at 30m
IP67: sealed against water

Features

A great general construction laser with digital grade capability
Dial-in grade in single or dual axis, easy and fast at the touch of a button
The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day
The product casts a horizontal laser plane or a laser beam for the purpose of alignment.
The laser beam can be detected by means of a laser detector.
Data communication with external appliances.

Slopes done easily

Easily perform levelling and slope applications with the semi-automatic Leica Rugby 680 dual and single grade lasers. Their simple user interface, four-button menu and digital display allow quick and convenient dial-in grade for increased productivity and efficiency on site.

The Rugby 680 laser is protected to IP67 dust and water protected and has a glass cage and tough housing which gives ultimate protection. It has rubber handles for grip, a large high contrast LCD display and a simple, easy to understand user interface. H-I and Bump alert feature alerts the operator of any disturbances and when the grade is used the smart slope function will continue to monitor in order to make sure accurate time and temperature results are provided all day long.

Accurate performance throughout the day

Eliminate costly errors and downtime coming from temperature changes on the jobsite. The Smart Slope function of the Rugby 680 continuously monitors temperature changes over time. This unique functionality assures accuracy and solid laser performance over the course of the day.

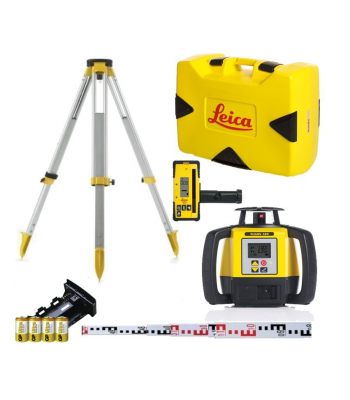

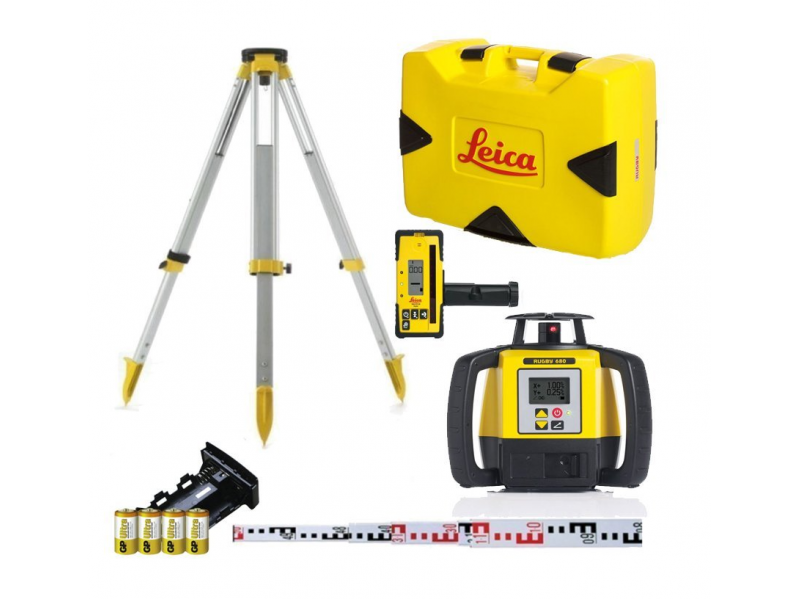

Comes With

Rod Eye 160 Receiver
Staff up to 5m
Construction Tripod 1-1.6m
User manual on CD
Quick start guide
Safety instructions
Protect by Leica Geosystems card.
Producer inspection certificate
Carry case
4 x D Cell Disposable Batteries (50+ Hours run time)
D Cell Battery Tray
3 Year warranty

Specification

Product	LEICA RUGBY 680 OUTDOOR LASER LEVEL KIT WITH ROD EYE 160 RECEIVER
Functionalilty	Self-Levelling Horizontal with Dual-In, Dual Axis, Semi-Auto Slope
Semi-Auto Grade Range	± 8% DG
Range (Diameter)	600m with RE Basic 1100m with RE 140/160
Self-levelling accuracy	± 1.5mm at 30m (± 1/16" at 100ft)
Self-levelling Range	± 5°
H.I elevation alert/Bump alert	YES
Rotation Speeds	10 rps
Laser Diode Type Class	635nm Class 2
Battery Life (Alkaline)	50+ hours @ 20 °C
Battery Type (Alkaline)	Four D-cells
Protection Class (Splash water/Dust Proof)	IP 67
Operating Temperauture	20 to +50 °C (4 to +122 °F)
Weight with Batteries	2.6 Kg

Brand: Leica

Identifier: 6011160KIT
