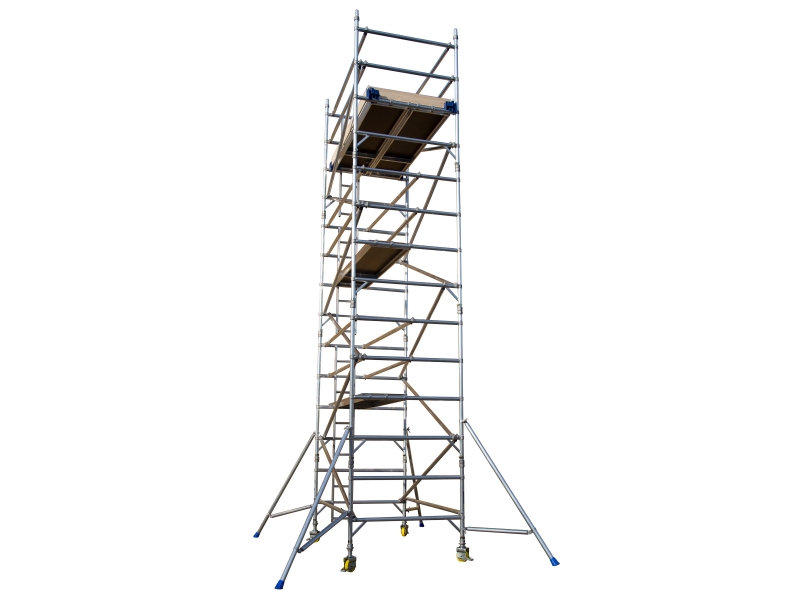

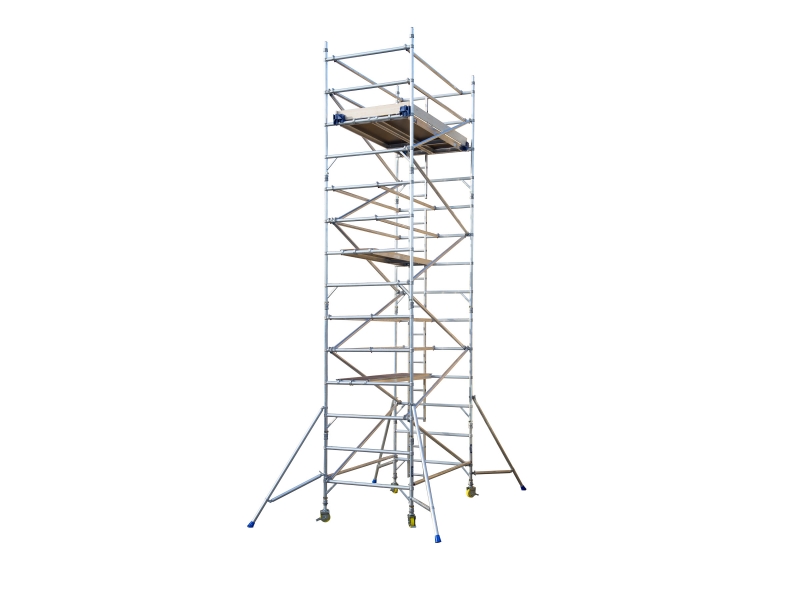

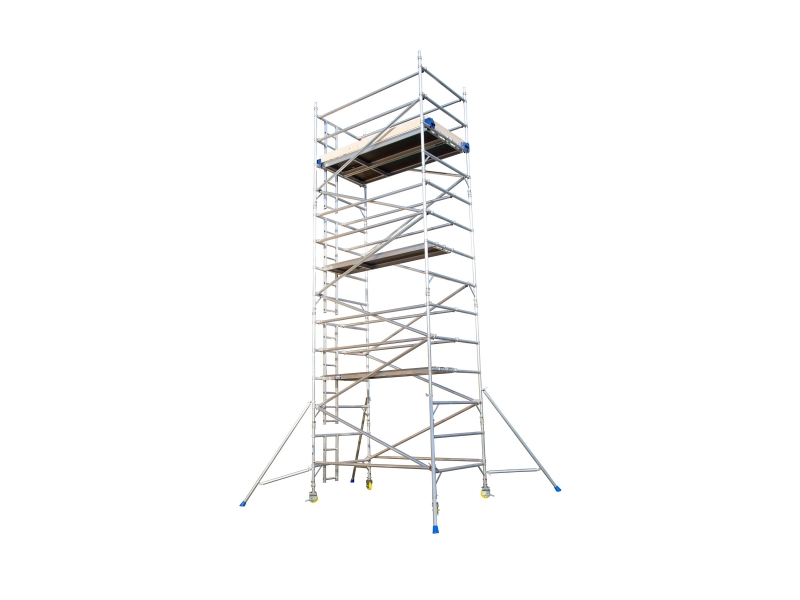

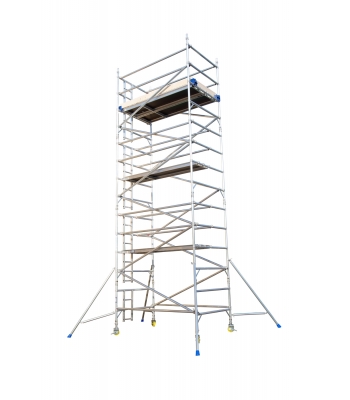

LEWIS Industrial Scaffold Tower Double Width 1.8m Long - 7.7m Platform Height

9.7m (31'9") Working Height | 7.7m (25'3") Platform Height

Product Information

Conforms to the requirements of the 3T erection and dismantling method as set out by HSE (Health & Safety Executive).
Certified to the very latest BSI Kitemark in respect to BSEN 1004 (Class 3) safety standard for your safety and reassurance. A copy of the certificates acn be provided upon request.
Super increased rigidity
Fully compatible with SGB BoSS Towers – If you have used these towers, or hired from larger hire companies, this is what our towers are compatible to.
Integral ladders with comfortable D section for secure footing. Inferior imports have oval shaped or rectangular 30mm diameter bars.
Aluminium Tube: 50.8mm tube with a 1.8mm wall thickness. Inferior imports have 30mm – 40mm diameter 'Poles'.
Frame horizontals have 500mm spacing and ribbed tubing for increased grip.
Two frame widths of 850mm & 1450mm.
3 deck lengths available: 1.8m, 2.5m and introducing our new 3.2m.
Self-closing trapdoors & simple wind lock clips.
Safe working load of 275kg per platform level, up to a maximum of 950kg per tower (including self-weight). Inferior imports vary from 125kg – 200kg, but never to the current standard. Please be aware of this important difference.
Patented trigger operated locking claws.
Fluted floating spigots for easy assembly & dismantling. Inferior imports do not have this at all.
150mm locking castors, with a certified weight load of 925kg.
Unique deck extruded profile protects edge of deck board.
Lifetime support – Lewis offer 100% satisfaction to end users.

Components for this Tower

Dual Locking Castors - 150mm Locking Castors	4
500mm Adjustable Leg	4
2 Rung 1m Ladder Frame	1
2 Rung 1m Span Frame	1
3 Rung 1.5m Ladder Frame	1
3 Rung 1.5m Span Frame	1
4 Rung 2m Ladder Frame	3
4 Rung 2m Span Frame	3
Trap Door Platform	3
Fixed Platform	1
Horizontal Brace (red trigger)	14
Diagonal Brace (blue trigger)	14
(New style) Complete Toe-board Set	1
Standard Stabiliser	0
Jumbo Stabiliser	4
Instruction Manual & BSEN1004 certificate of conformity	1

Brand: Lewis Towers

Identifier: 18DW77

Lewis Industrial Scaffold Towers Key Quality Components

Published on Wed 1st February 2017 by D Courtney

Key Components

Adjustable Leg & Base Plate

These are industrial steel base plates that may be very useful for your setup or requirements!

Floating Spiggot

Vital part on any type of access tower. These are separate items inserted into the tower frame, for added strength when connecting frames.

Industrial Hook

UK casted, patented colour coded hook. Only the finest quality components on these towers.

Internal Ladder & Brace

These ladders are integral ladders, with D Shaped rungs for added ease and comfort when climbing the tower. Support strut braces, welded for added stability and strength.

Platform Hook & Safety Clip

Lewis' very own platform hooks have ridges on the inside for extra grip, and a wire snap hook for that extra stability. Please look for these features on a tower, as any safe working tower, will have these.

Platform Latch 2

Uk casted industrial platform lock. Not inferior products that are plastic or a hook like mechanism.

Tower Frame Clips

Industrial frame clips, nothing stronger. Inferior products use a 'pin' for safety. This is such a major part of the tower, as you are one climbing at height. You need to ensure all the components are of top spec, as every part is vital.

Wheel & Leg

Industrial locking castors, with a 500mm adjustable leg. These come as a STANDARD with our towers. You can work on any uneven grounds, even stairs with this adjustment. This component is also casted and manufactured in the UK.

Toeboard Clip

Our patented industrial Toeboard clips to ensure you feel sturdy and safe when using your tower, or when you are up at height.
